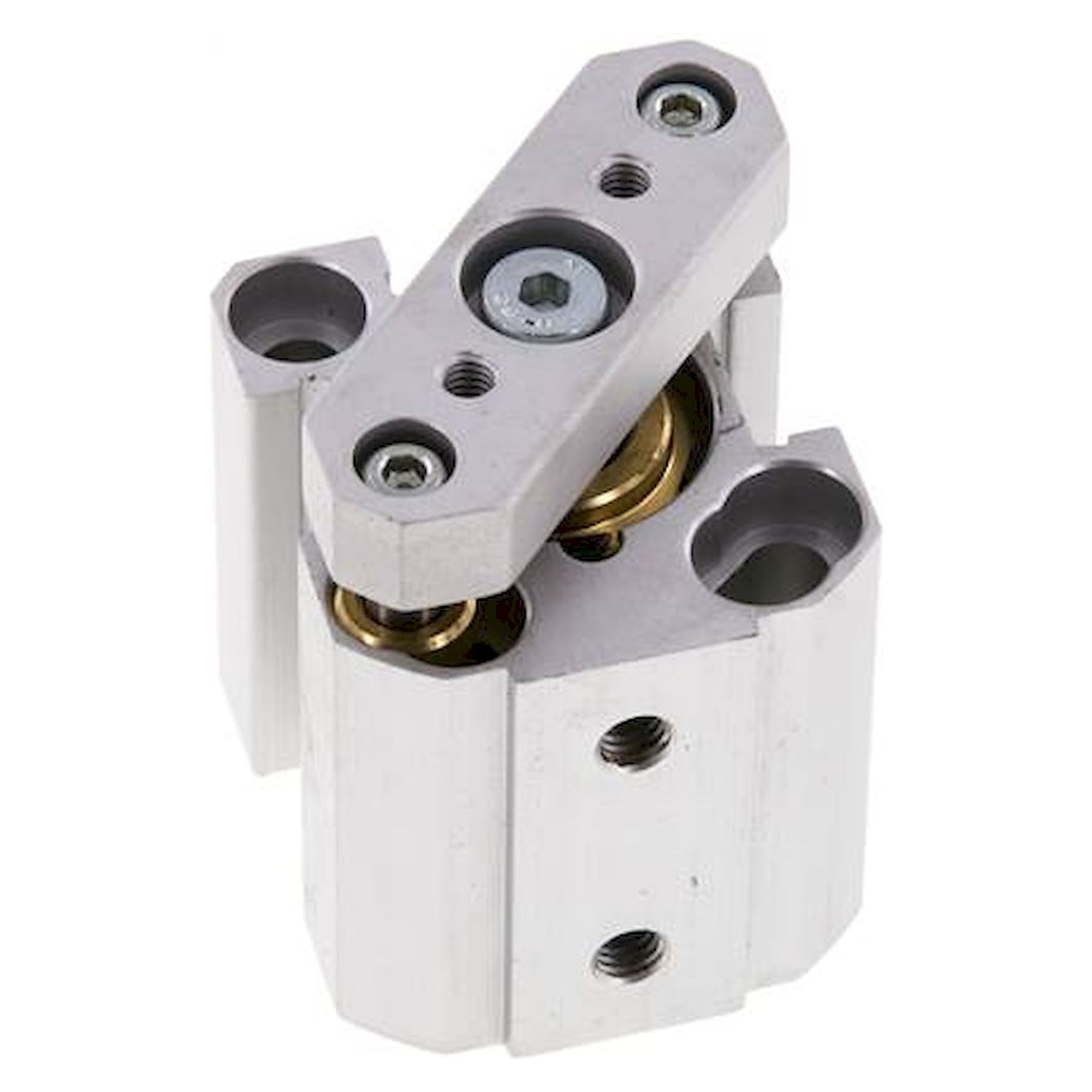

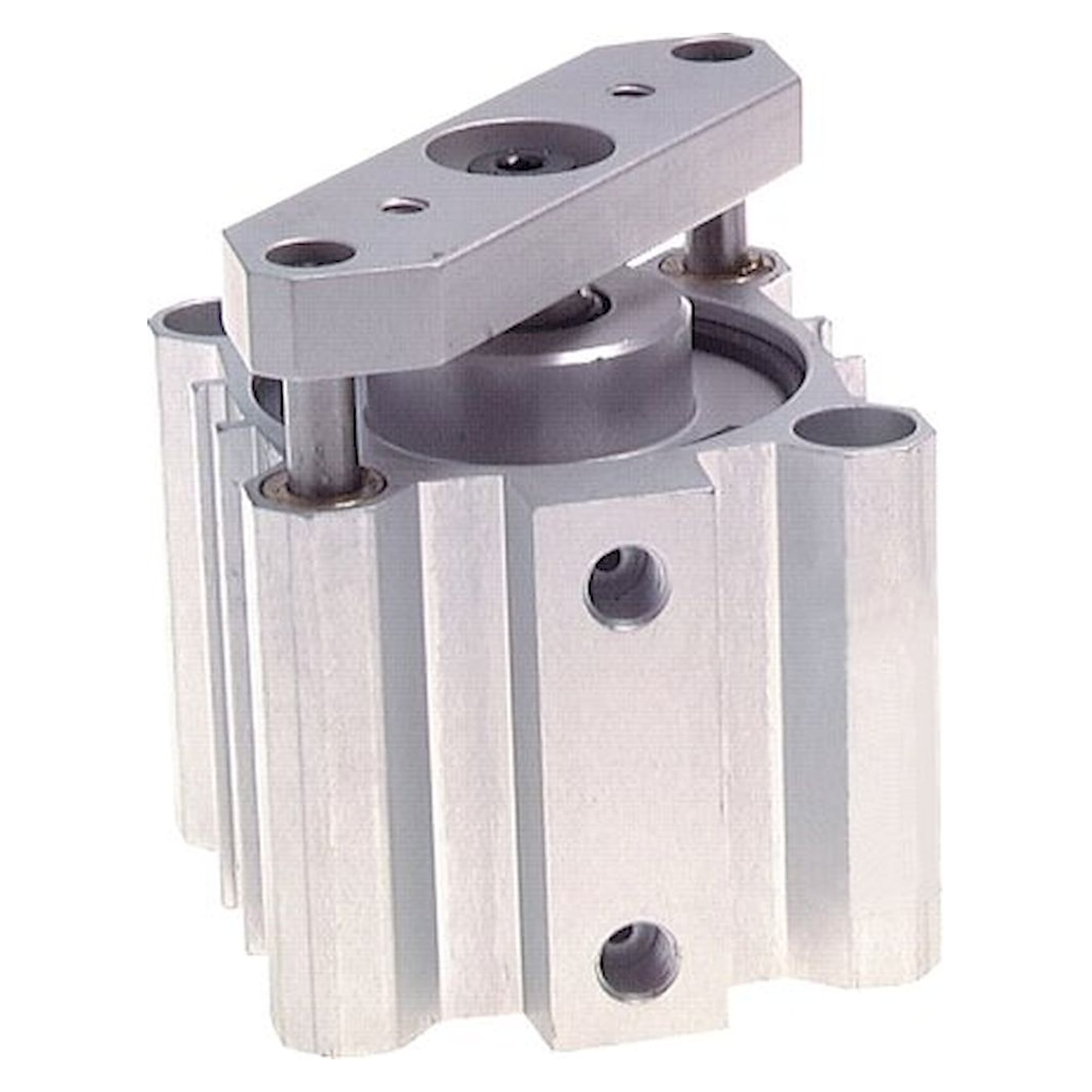

Non-rotating short-stroke cylinder, double-acting, bore 20 mm, stroke 5 mm, magnetic piston, M 5 - Fluidics equipment

Fluidics equipment ✓ Original product Brand new

With only 5 mm stroke this non-rotating short-stroke cylinder with 20 mm bore delivers a calculated 188 N push force at 6 bar. Thanks to the magnetic piston, position can be sensed with type G cylinder switches. Stainless steel 1.4305 piston rod, operating pressure max. 10 bar.

Net
€116.55
excl. VAT
Item FL-247689
Manufacturer no. NDM 20/5 A
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The double-acting short-stroke cylinder with 20 mm piston delivers a calculated 188 N push force at 6 bar. The 5 mm stroke keeps the overall length short, the port is M 5.

Why this cylinder

  • Double-acting, calculated push force 188 N at 6 bar
  • Anti-rotation design, mounting via C2 thread M 4
  • Position sensing via magnetic piston and type G cylinder switches
  • Temperature range -20 to +80 °C with NBR seals
  • Rated up to 10 bar, M 5 port

Dimensions

The dimension letters refer to the dimensional drawing of the series.

Dimension A40.0 mm
Dimension B36 mm
Dimension D10 mm
Dimension F5.8 mm
Dimension G9.0 mm
Dimension H22.0 mm
Dimension I20 mm
Dimension J8.0 mm
Dimension L32.0 mm
Dimension M15.0 mm
Dimension N25.5 mm
Dimension O12.7 mm
Dimension Q5.7 mm
Dimension R5.7 mm
Dimension S38.5 mm
Dimension T10 mm
Dimension V8 mm
Dimension W5.0 mm
Dimension X20 mm
Dimension Y11 mm
Dimension Z15 mm
Dimension AA4.5 mm
Dimension AB8 mm

Applications

Short-stroke cylinders of this size suit clamping, stopping, ejecting and embossing in fixtures where only 5 mm of travel is needed and space is tight.

Technical data

Typeshort-stroke cylinder, non-rotating
Functiondouble-acting
Bore20 mm
Stroke5 mm
Versionwith magnetic piston
Thread C2M 4
Compressed air port PM 5
Operating pressuremax. 10 bar
Temperature range-20 to +80 °C
Head and base plateanodised aluminium / brass
Cylinder tubeanodised aluminium
Piston rod1.4305
SealNBR
Cylinder switch typeG
Piston area (calculated)3.1 cm²
Push force at 6 bar (calculated)188 N
Push force at 10 bar (calculated)314 N
Weight150 g
Customs tariff number84799070
ManufacturerFluidics equipment
Hersteller-NrNDM 20/5 A
EAN4050571524128
Zolltarifnummer84799070
GPSR HerstellerdatenA1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Ausführungmit Magnetkolben, verdrehgesichert
BauformKurzhubzylinder
Piston Ø [mm]20
Stroke [mm]5
Seal materialNBR
Housing materialAluminium, anodised
MediumCompressed air
Betriebsdruck max [bar]10
Pneumatic connectionM5
Temperaturbereich-20-80 °C
Temperature (max.)80

Downloads

Questions about this item

Any other question?

Send us the item number and your question. We clarify technical details directly with the manufacturer and usually reply on the next working day.
