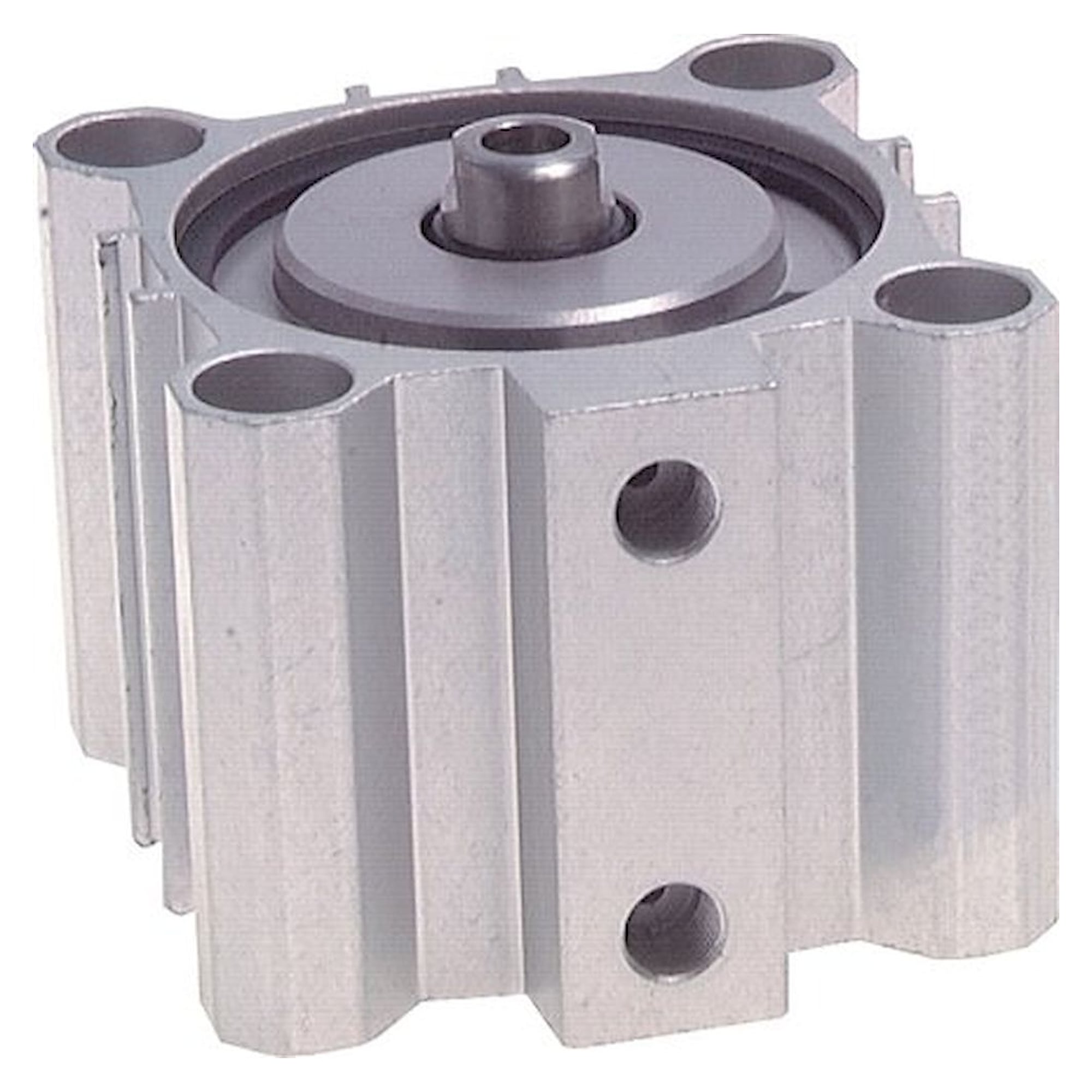

Double-acting short-stroke cylinder, bore 16 mm, stroke 20 mm, with magnetic piston, M 5 - Fluidics equipment

Fluidics equipment ✓ Original product Brand new

With only 20 mm stroke this double-acting short-stroke cylinder with 16 mm bore delivers a calculated 121 N push force at 6 bar. Thanks to the magnetic piston, position can be sensed with type G cylinder switches. Operating pressure up to 10 bar, NBR seals for -20 to +80 °C.

Net
€60.52
excl. VAT
Item FL-009790
Manufacturer no. NDM 16/20
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With a 16 mm bore and 20 mm stroke this short-stroke cylinder is built for short, powerful movements. The calculated push force is 121 N at 6 bar and 201 N at the maximum of 10 bar.

Why this cylinder

  • Double-acting, calculated push force 121 N at 6 bar
  • Piston rod thread M 4, rod made of 1.4305
  • Position sensing via magnetic piston and type G cylinder switches
  • NBR seals for -20 to +80 °C
  • Rated up to 10 bar, M 5 port

Dimensions

The dimension letters refer to the dimensional drawing of the series.

Dimension A34.0 mm
Dimension B30 mm
Dimension D8 mm
Dimension F4.7 mm
Dimension G7.5 mm
Dimension H19.0 mm
Dimension I18 mm
Dimension J8.0 mm
Dimension L32.0 mm
Dimension M12.0 mm
Dimension N20.0 mm
Dimension O10.0 mm
Dimension Q4.6 mm
Dimension R3.5 mm
Dimension S32.0 mm
Dimension T8 mm
Dimension V6 mm
Dimension W4.5 mm

Applications

The cylinder with 16 mm bore is used, for example, as a clamping element, end stop or ejector in fixture and special machine building. The 121 N is a theoretical value, piston area times pressure, without friction.

Technical data

Typeshort-stroke cylinder
Functiondouble-acting
Bore16 mm
Stroke20 mm
Versionwith magnetic piston
Piston rod thread C1M 4
Compressed air port PM 5
Operating pressuremax. 10 bar
Temperature range-20 to +80 °C
Head and base plateanodised aluminium / brass
Cylinder tubeanodised aluminium
Piston rod1.4305
SealNBR
Cylinder switch typeG
Piston area (calculated)2.0 cm²
Push force at 6 bar (calculated)121 N
Push force at 10 bar (calculated)201 N
Weight100 g
Customs tariff number84799070
ManufacturerFluidics equipment
Hersteller-NrNDM 16/20
EAN4050571523930
Zolltarifnummer84799070
GPSR HerstellerdatenA1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Ausführungmit Magnetkolben
BauformKurzhubzylinder
Piston Ø [mm]16
Stroke [mm]20
Seal materialNBR
Housing materialAluminium, anodised
MediumCompressed air
Betriebsdruck max [bar]10
Pneumatic connectionM5
Temperaturbereich-20-80 °C
Temperature (max.)80
