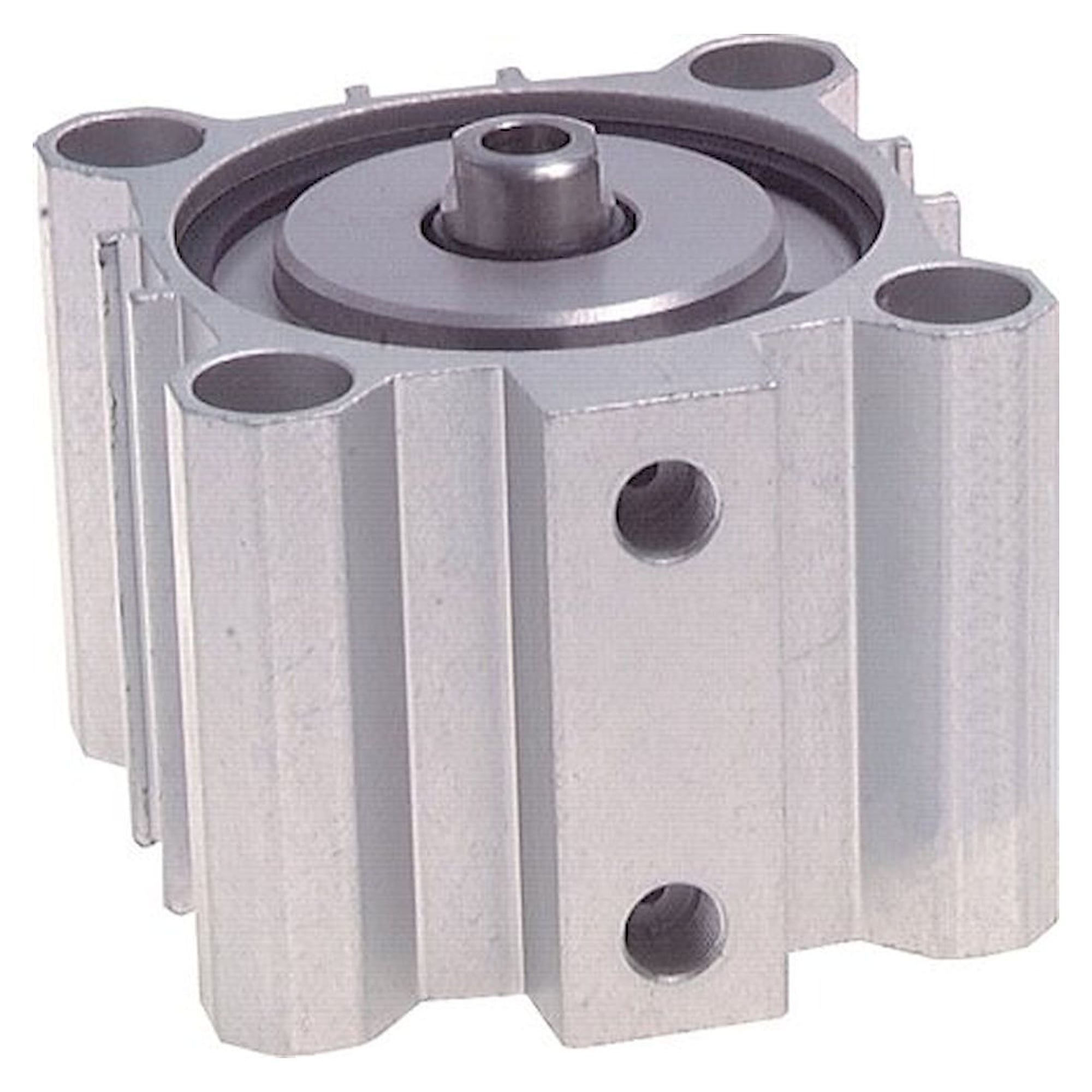

Double-acting short-stroke cylinder, bore 80 mm, stroke 10 mm, without magnetic piston, G 1/4 - Fluidics equipment

Fluidics equipment ✓ Original product Brand new

This short-stroke cylinder with 80 mm bore pushes with a calculated 3.0 kN at 6 bar over a 10 mm stroke. The version without magnetic piston is sufficient where no position sensing is needed. Operating pressure up to 10 bar, NBR seals for -20 to +80 °C.

Net
€177.44
excl. VAT
Item FL-009779
Manufacturer no. ND 80/10
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With an 80 mm bore and 10 mm stroke this short-stroke cylinder is built for short, powerful movements. The calculated push force is 3.0 kN at 6 bar and 5.0 kN at the maximum of 10 bar.

Why this cylinder

  • Pneumatic force in both directions, 3.0 kN push force at 6 bar (calculated)
  • Piston rod thread M 10, rod made of 1.4305
  • NBR seals for -20 to +80 °C
  • Rated up to 10 bar, G 1/4 port

Dimensions

The dimension letters refer to the dimensional drawing of the series.

Dimension A105.0 mm
Dimension B100 mm
Dimension D20 mm
Dimension F9.0 mm
Dimension G14.0 mm
Dimension H55.0 mm
Dimension I82 mm
Dimension J14.0 mm
Dimension K82.0 mm
Dimension L46.0 mm
Dimension N77.0 mm
Dimension Q9.0 mm
Dimension S100.0 mm
Dimension T15 mm
Dimension V17 mm
Dimension W8.0 mm
Dimension X65 mm
Dimension Y28 mm
Dimension Z50 mm
Dimension AA18.0 mm
Dimension AB14 mm

Applications

The cylinder with 80 mm bore is used, for example, as a clamping element, end stop or ejector in fixture and special machine building.

Technical data

Typeshort-stroke cylinder
Functiondouble-acting
Bore80 mm
Stroke10 mm
Versionwithout magnetic piston
Piston rod thread C1M 10
Compressed air port PG 1/4
Operating pressuremax. 10 bar
Temperature range-20 to +80 °C
Head and base plateanodised aluminium / brass
Cylinder tubeanodised aluminium
Piston rod1.4305
SealNBR
Cylinder switch typeG
Piston area (calculated)50.3 cm²
Push force at 6 bar (calculated)3.0 kN
Push force at 10 bar (calculated)5.0 kN
Weight1.0 kg
Customs tariff number84799070
ManufacturerFluidics equipment
Hersteller-NrND 80/10
EAN4050571523572
Zolltarifnummer84799070
GPSR HerstellerdatenA1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Ausführungohne Magnetkolben
BauformKurzhubzylinder
Piston Ø [mm]80
Stroke [mm]10
Seal materialNBR
Housing materialAluminium, anodised
MediumCompressed air
Betriebsdruck max [bar]10
Pneumatic connectionG1/4
Temperaturbereich-20-80 °C
Temperature (max.)80
