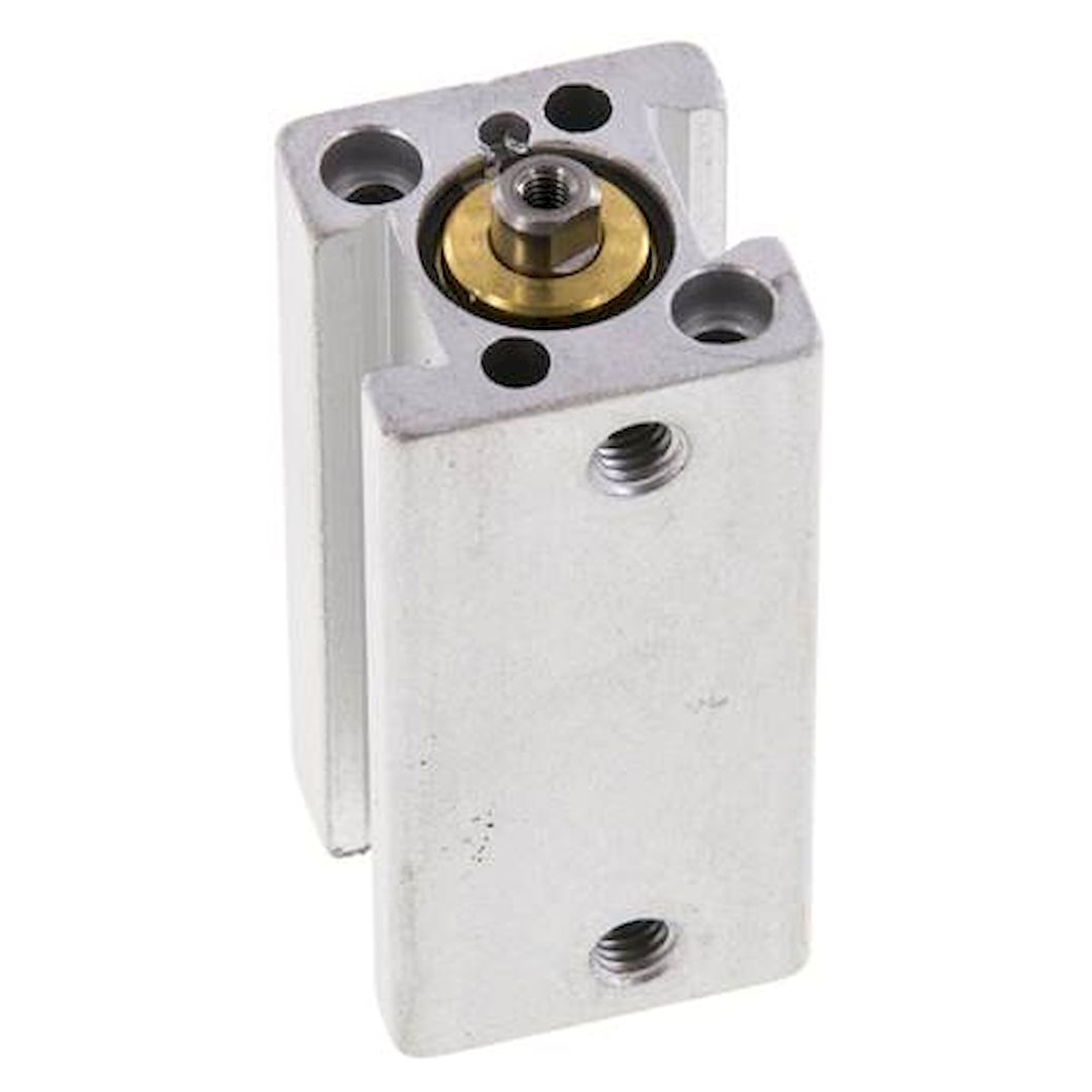

Double-acting short-stroke cylinder, bore 12 mm, stroke 10 mm, without magnetic piston, M 5 - Fluidics equipment

Fluidics equipment ✓ Original product Brand new

This short-stroke cylinder with 12 mm bore pushes with a calculated 68 N at 6 bar over a 10 mm stroke. The version without magnetic piston is sufficient where no position sensing is needed. Stainless steel 1.4305 piston rod, operating pressure max. 10 bar.

Net
€39.86
excl. VAT
Item FL-069880
Manufacturer no. ND 12/10
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Piston area 1.1 cm², stroke 10 mm: this short-stroke cylinder produces a calculated 68 N at 6 bar and 113 N at 10 bar operating pressure. The 12 mm piston is double-acting, both extending and retracting are driven by compressed air.

Why this cylinder

  • Pneumatic force in both directions, 68 N push force at 6 bar (calculated)
  • Stainless steel 1.4305 piston rod with M 3 thread
  • NBR seals for -20 to +80 °C
  • Rated up to 10 bar, M 5 port

Dimensions

The dimension letters refer to the dimensional drawing of the series.

Dimension A25.0 mm
Dimension B25 mm
Dimension D6 mm
Dimension F3.7 mm
Dimension G5.6 mm
Dimension J5.5 mm
Dimension K15.5 mm
Dimension L17.0 mm
Dimension Q3.5 mm
Dimension T6 mm
Dimension V5 mm
Dimension W3.5 mm

Applications

The cylinder with 12 mm bore is used, for example, as a clamping element, end stop or ejector in fixture and special machine building.

Technical data

Typeshort-stroke cylinder
Functiondouble-acting
Bore12 mm
Stroke10 mm
Versionwithout magnetic piston
Piston rod thread C1M 3
Compressed air port PM 5
Operating pressuremax. 10 bar
Temperature range-20 to +80 °C
Head and base plateanodised aluminium / brass
Cylinder tubeanodised aluminium
Piston rod1.4305
SealNBR
Cylinder switch typeG
Piston area (calculated)1.1 cm²
Push force at 6 bar (calculated)68 N
Push force at 10 bar (calculated)113 N
Weight35 g
Customs tariff number84799070
ManufacturerFluidics equipment
Hersteller-NrND 12/10
EAN4050571522766
Zolltarifnummer84799070
GPSR HerstellerdatenA1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Ausführungohne Magnetkolben
BauformKurzhubzylinder
Piston Ø [mm]12
Stroke [mm]10
Seal materialNBR
Housing materialAluminium, anodised
MediumCompressed air
Betriebsdruck max [bar]10
Pneumatic connectionM5
Temperaturbereich-20-80 °C
Temperature (max.)80
