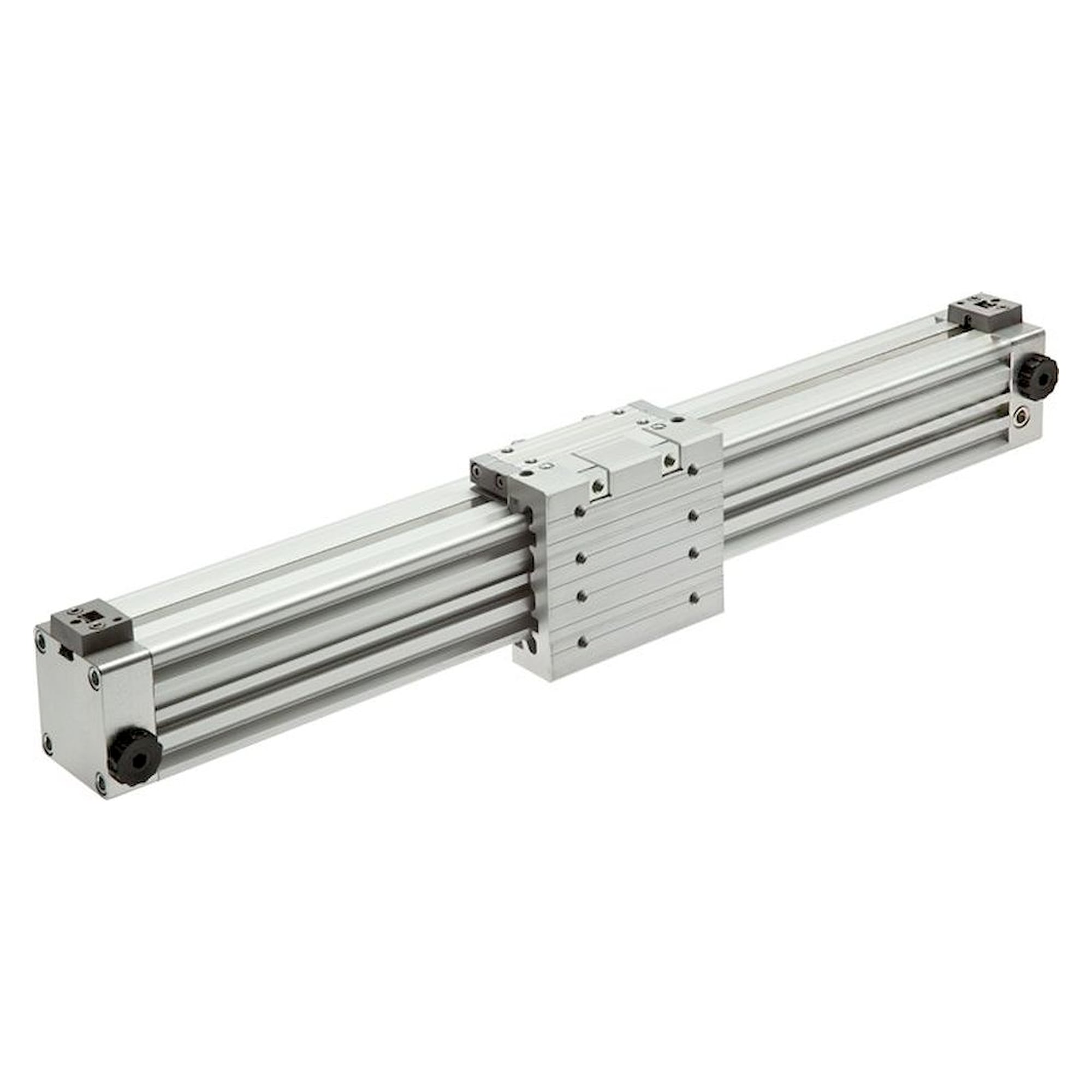

Rodless short cylinder Ø 63 mm, stroke 2000 mm, G 3/8, with sliding guide, lateral force 650 N - Fluidics equipment

Short-design rodless cylinder Ø 63 mm with sliding guide: permissible lateral force 650 N, stroke 2000 mm, operating pressure up to 8 bar.

Benefits

• Up to 42% shorter than the standard series, space-saving even compared with short-stroke cylinders with piston rod
• Sliding guide on the yoke, permissible lateral force 650 N
• Adjustable cushioning at both ends with 49 mm cushioning length
• Compressed air port G 3/8 on both sides, convertible to one side or underneath by moving the sealing plugs
• Magnetic piston for end-position sensing with cylinder switches
• Tube, cylinder heads and driver in anodised aluminium, stainless steel cover band, NBR/PUR seals

Applications

Any mounting position is possible. Mounting the Ø 63 mm cylinder with the yoke facing down keeps dirt away from the tube slot. At 2000 mm stroke the short design saves space where even a short-stroke cylinder with piston rod would be too long.
