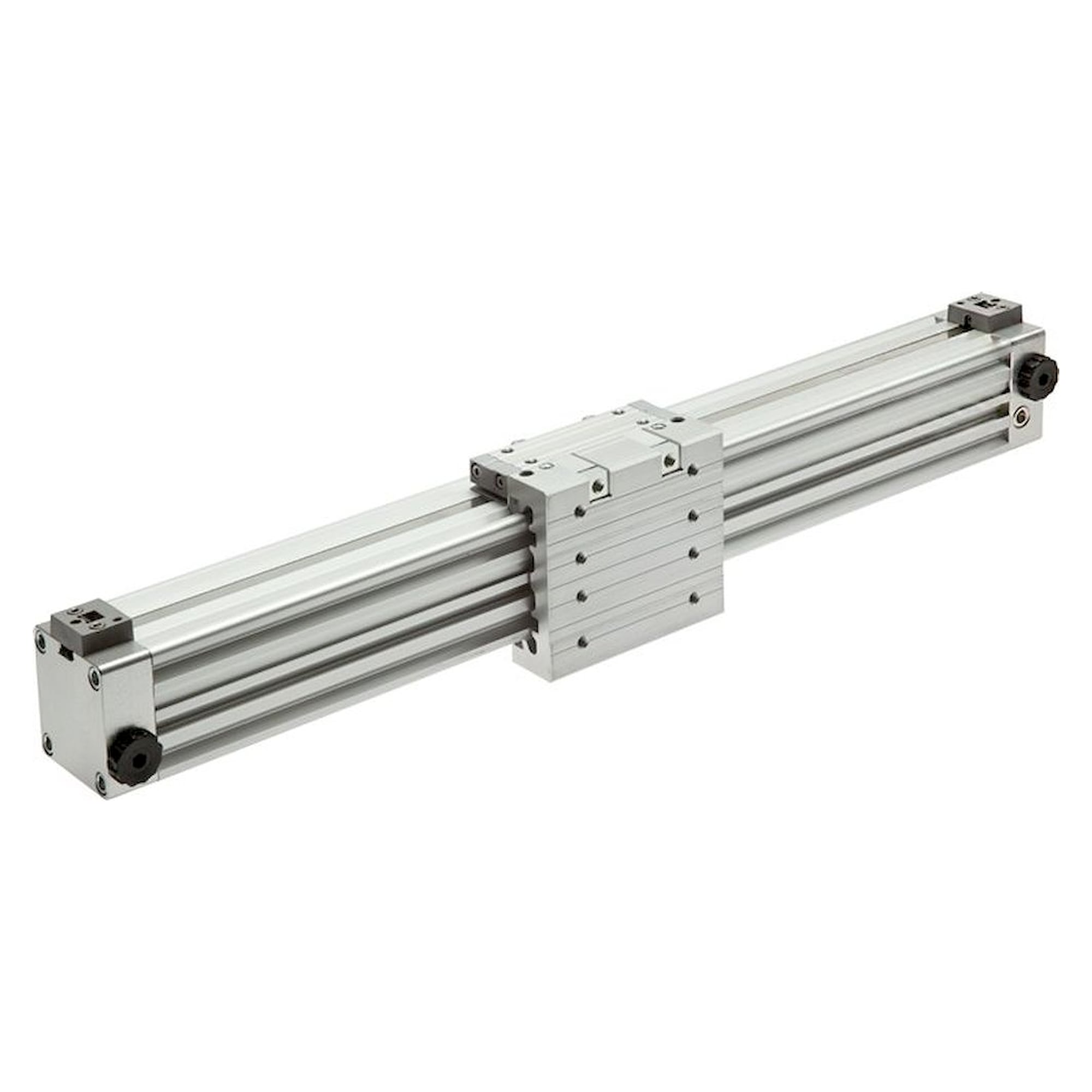

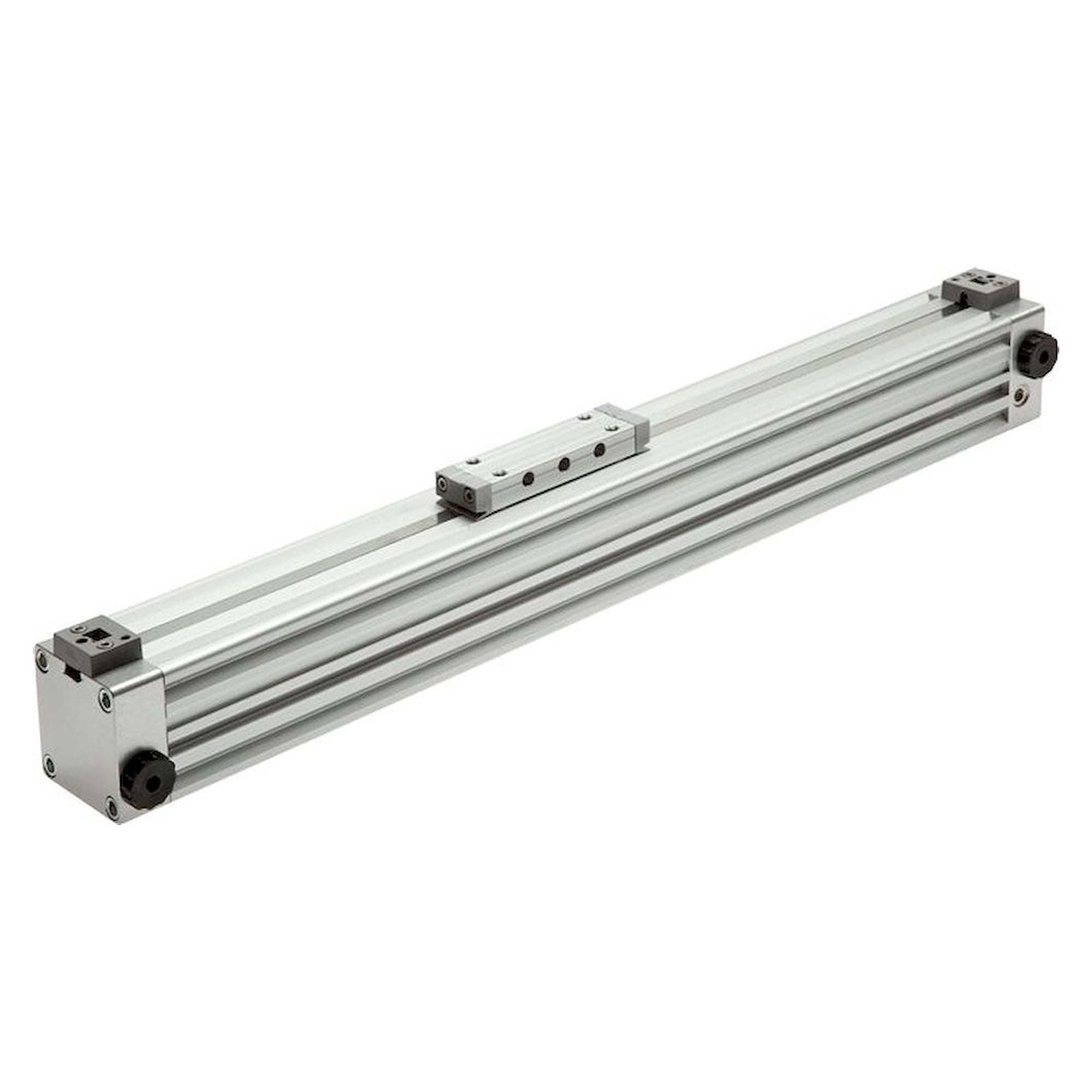

Rodless short cylinder Ø 32 mm, stroke 2000 mm, G 1/8, with sliding guide, lateral force 170 N - Fluidics equipment

Fluidics equipment ✓ Original product Brand new

Short-design rodless cylinder with sliding guide that takes lateral forces up to 170 N at the yoke. Piston diameter 32 mm, stroke 2000 mm, port G 1/8, max. 8 bar, magnetic piston for cylinder switches.

Net
€1,294.09
excl. VAT
Item FL-329954
Manufacturer no. LZKF 32/2000
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Short-design rodless cylinder Ø 32 mm with sliding guide: permissible lateral force 170 N, stroke 2000 mm, operating pressure up to 8 bar.

Benefits

  • Up to 42% shorter than the standard series, space-saving even compared with short-stroke cylinders with piston rod
  • Sliding guide on the yoke, permissible lateral force 170 N
  • End-position cushioning adjustable at both ends, cushioning length 24 mm
  • Compressed air port G 1/8 on both sides, convertible to one side or underneath by moving the sealing plugs
  • Magnetic piston for end-position sensing with cylinder switches
  • Tube, cylinder heads and driver in anodised aluminium, stainless steel cover band, NBR/PUR seals

Applications

Installation: any position is possible, preferably with the yoke facing down to avoid contamination. Compressed air is supplied via G 1/8. At 2000 mm stroke the short design saves space where even a short-stroke cylinder with piston rod would be too long.

Technical data

FeatureValue
Product typeRodless cylinder
Designshort design
Guidesliding guide
Piston diameter32 mm
Stroke2000 mm
Compressed air portG 1/8, both sides
Permissible lateral force170 N
Operating pressuremax. 8 bar
Temperature range-20 to +80 °C
End-position cushioningadjustable at both ends
Cushioning length24 mm
Magnetic pistonyes
Cylinder tube, heads, driveraluminium, anodised
Cover bandstainless steel
SealsNBR, PUR
Mounting positionany, preferably yoke facing down
Dimension A120 mm
Dimension A177.5 mm
Dimension AF100 mm
Dimension AF135 mm
Dimension AM16 mm
Dimension B55 mm
Dimension E171 mm
Dimension E186 mm
Dimension F140 mm
Dimension F155 mm
Dimension G70 mm
Dimension J4.5 mm
Dimension M25.0 mm
Dimension MF80 mm
Dimension N (thread)M 5
Dimension N19.0 mm
Dimension O5.5 mm
Dimension OP5.3 mm
Dimension S41.0 mm
Dimension T (thread)M 5
Dimension T110 mm
Dimension U52 mm
Dimension W65.0 mm
Dimension WF78 mm
Weight9 kg
Customs tariff number84123100
ManufacturerFluidics equipment
Hersteller-NrLZKF 32/2000
EAN4050571821678
Zolltarifnummer84123100
GPSR HerstellerdatenA1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Ausführungmit Gleitführung, mit Magnetkolben
Bauformkurze Bauform
ThreadG 1/8
Piston Ø [mm]32
Stroke [mm]2000
Seal materialNBR, PUR
Housing materialAluminium, anodised
Cushioningadjustable
Betriebsdruck max [bar]8
Temperaturbereich-20-80 °C
Temperature (max.)80
