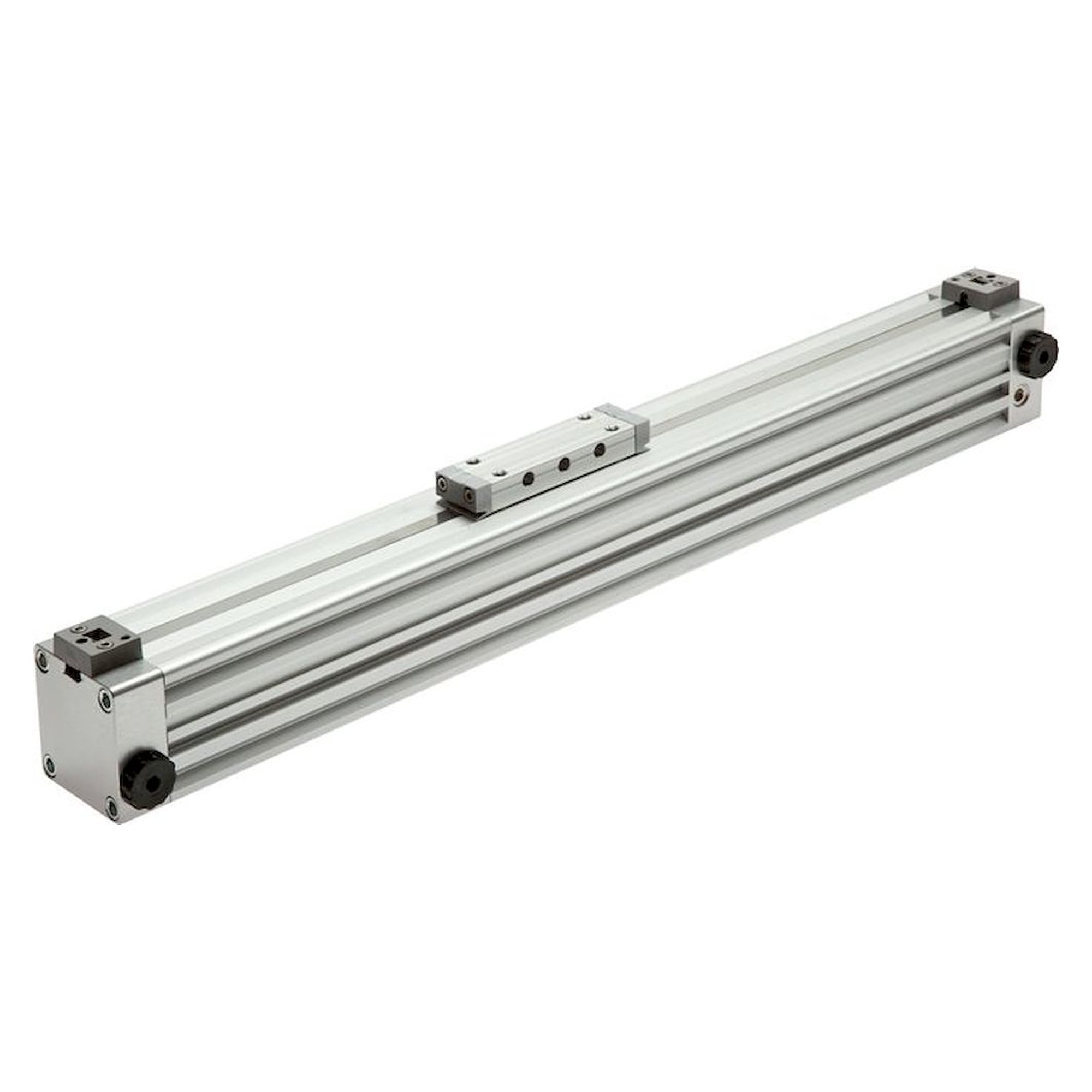

Rodless short cylinder Ø 25 mm, stroke 100 mm, G 1/8, with sliding guide, lateral force 135 N - Fluidics equipment

Short-design rodless cylinder Ø 25 mm with sliding guide: permissible lateral force 135 N, stroke 100 mm, operating pressure up to 8 bar.

Benefits

• Up to 42% shorter than the standard series, space-saving even compared with short-stroke cylinders with piston rod
• Sliding guide on the yoke, permissible lateral force 135 N
• Adjustable cushioning at both ends with 18 mm cushioning length
• Compressed air port G 1/8 on both sides, convertible to one side or underneath by moving the sealing plugs
• Magnetic piston for end-position sensing with cylinder switches
• Tube, cylinder heads and driver in anodised aluminium, stainless steel cover band, NBR/PUR seals

Applications

Any mounting position is possible. Mounting the Ø 25 mm cylinder with the yoke facing down keeps dirt away from the tube slot. Where installation space is tight, the short design fits 100 mm stroke into less length.
