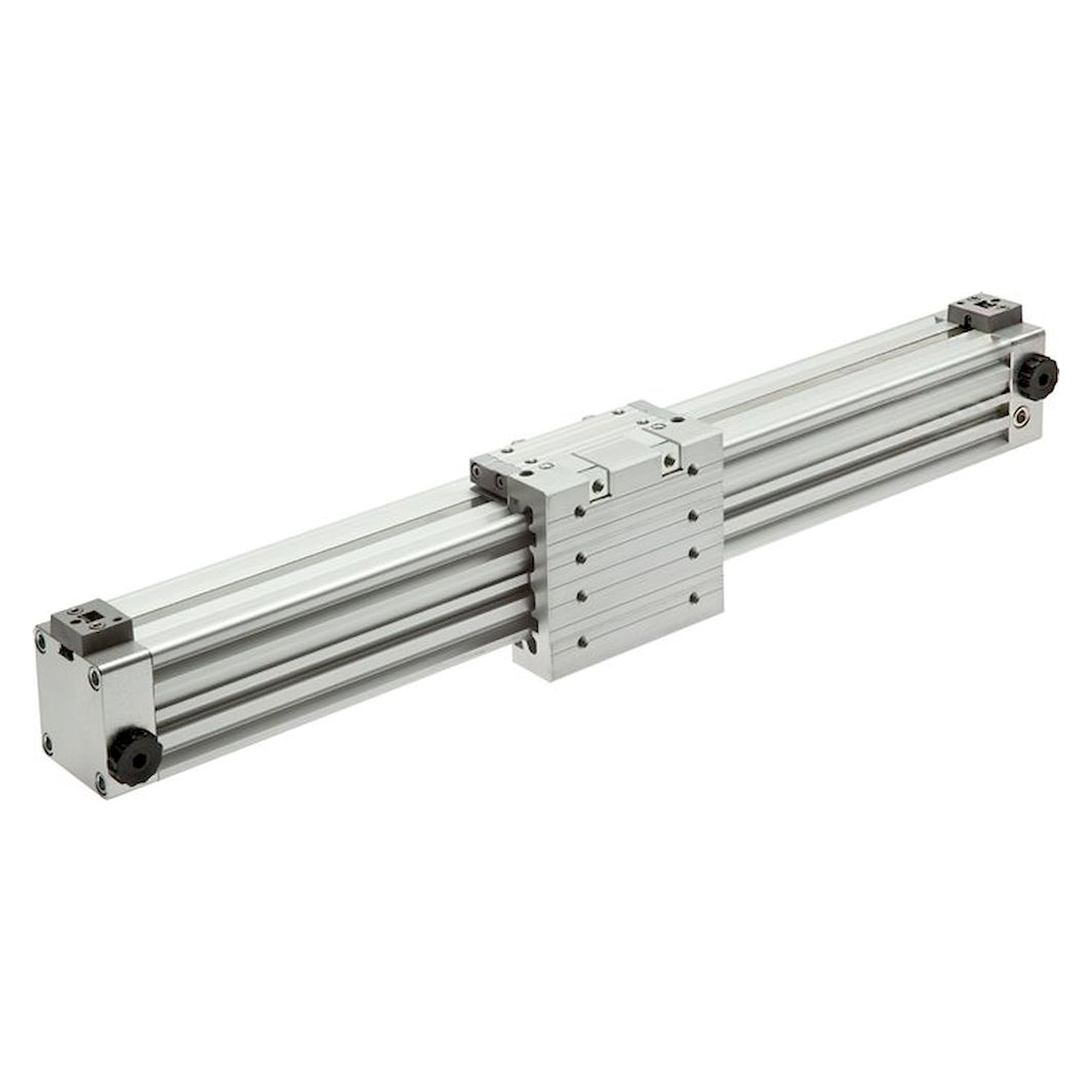

Rodless short cylinder Ø 25 mm, stroke 600 mm, G 1/8, short design, magnetic piston - Fluidics equipment

600 mm stroke at 25 mm piston diameter, taken off directly at the yoke above the tube slot: this short-design rodless cylinder works up to 8 bar.

Benefits

• Up to 42% shorter than the standard series, space-saving even compared with short-stroke cylinders with piston rod
• Adjustable cushioning at both ends with 18 mm cushioning length
• Compressed air port G 1/8 on both sides, convertible to one side or underneath by moving the sealing plugs
• Magnetic piston for end-position sensing with cylinder switches
• Tube, cylinder heads and driver in anodised aluminium, stainless steel cover band, NBR/PUR seals

Applications

Installation: any position is possible, preferably with the yoke facing down to avoid contamination. Compressed air is supplied via G 1/8. At 600 mm stroke the short design saves space where even a short-stroke cylinder with piston rod would be too long.
