Rodless cylinder Ø 32 mm, stroke 600 mm, G 1/8, with double sliding guide, lateral force 1035 N - Fluidics equipment

Fluidics equipment ✓ Original product Brand new

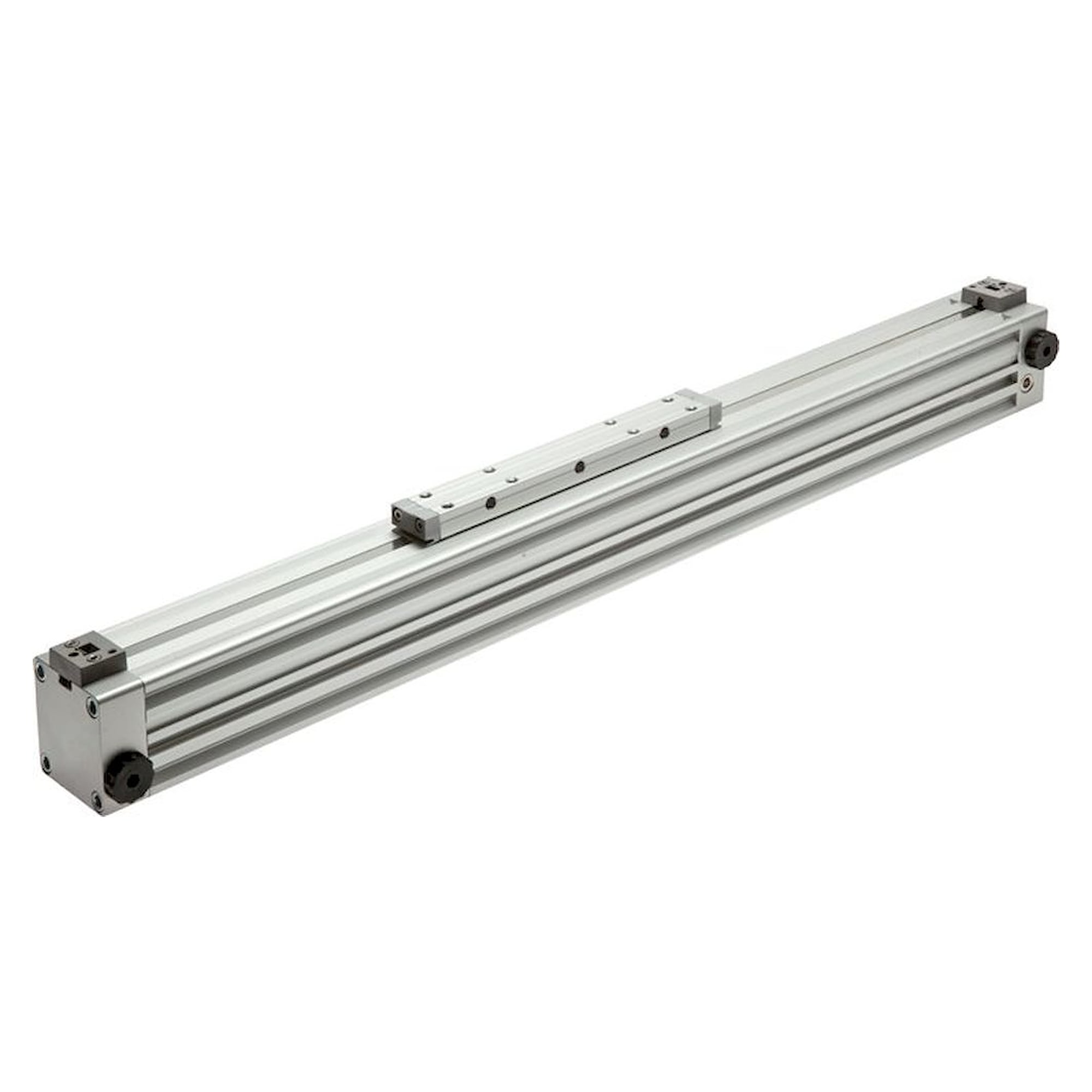

Up to 1035 N permissible lateral force thanks to the double sliding guide: rodless cylinder Ø 32 mm with 600 mm stroke. Adjustable cushioning at both ends, compressed air port G 1/8, operating pressure up to 8 bar.

Net
€1,307.19
excl. VAT
Item FL-330035
Manufacturer no. LZFF 32/600
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

1035 N permissible lateral force and 600 mm stroke: the rodless cylinder with 32 mm piston diameter guides the load on its double sliding guide for large loads.

Benefits

  • Double sliding guide on the yoke, permissible lateral force 1035 N
  • End-position cushioning adjustable at both ends, cushioning length 24 mm
  • Compressed air port G 1/8 on both sides, convertible to one side or underneath by moving the sealing plugs
  • Magnetic piston for end-position sensing with cylinder switches
  • Tube, cylinder heads and driver in anodised aluminium, stainless steel cover band, NBR/PUR seals

Applications

Installation: any position is possible, preferably with the yoke facing down to avoid contamination. Compressed air is supplied via G 1/8. The double sliding guide carries lateral loads up to 1035 N without an additional linear guide.

Technical data

FeatureValue
Product typeRodless cylinder
Designstandard series
Guidedouble sliding guide for large loads
Piston diameter32 mm
Stroke600 mm
Compressed air portG 1/8, both sides
Permissible lateral force1035 N
Operating pressuremax. 8 bar
Temperature range-20 to +80 °C
End-position cushioningadjustable at both ends
Cushioning length24 mm
Magnetic pistonyes
Cylinder tube, heads, driveraluminium, anodised
Cover bandstainless steel
SealsNBR, PUR
Mounting positionany, preferably yoke facing down
Dimension A120 mm
Dimension A177.5 mm
Dimension AF100 mm
Dimension AF135 mm
Dimension AM16 mm
Dimension B55 mm
Dimension E171 mm
Dimension E186 mm
Dimension F140 mm
Dimension F155 mm
Dimension G70 mm
Dimension J4.5 mm
Dimension M25.0 mm
Dimension MF80 mm
Dimension N (thread)M 5
Dimension N19.0 mm
Dimension O5.5 mm
Dimension OP5.3 mm
Dimension S41.0 mm
Dimension T (thread)M 5
Dimension T110 mm
Dimension U52 mm
Dimension W65.0 mm
Dimension WF78 mm
Weight4.7 kg
Customs tariff number84123100
ManufacturerFluidics equipment
Hersteller-NrLZFF 32/600
EAN4050571819910
Zolltarifnummer84123100
GPSR HerstellerdatenA1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Ausführungmit doppelter Gleitführung, mit Magnetkolben
BauformStandardbauform
ThreadG 1/8
Piston Ø [mm]32
Stroke [mm]600
Seal materialNBR, PUR
Housing materialAluminium, anodised
Cushioningadjustable
Betriebsdruck max [bar]8
Temperaturbereich-20-80 °C
Temperature (max.)80
