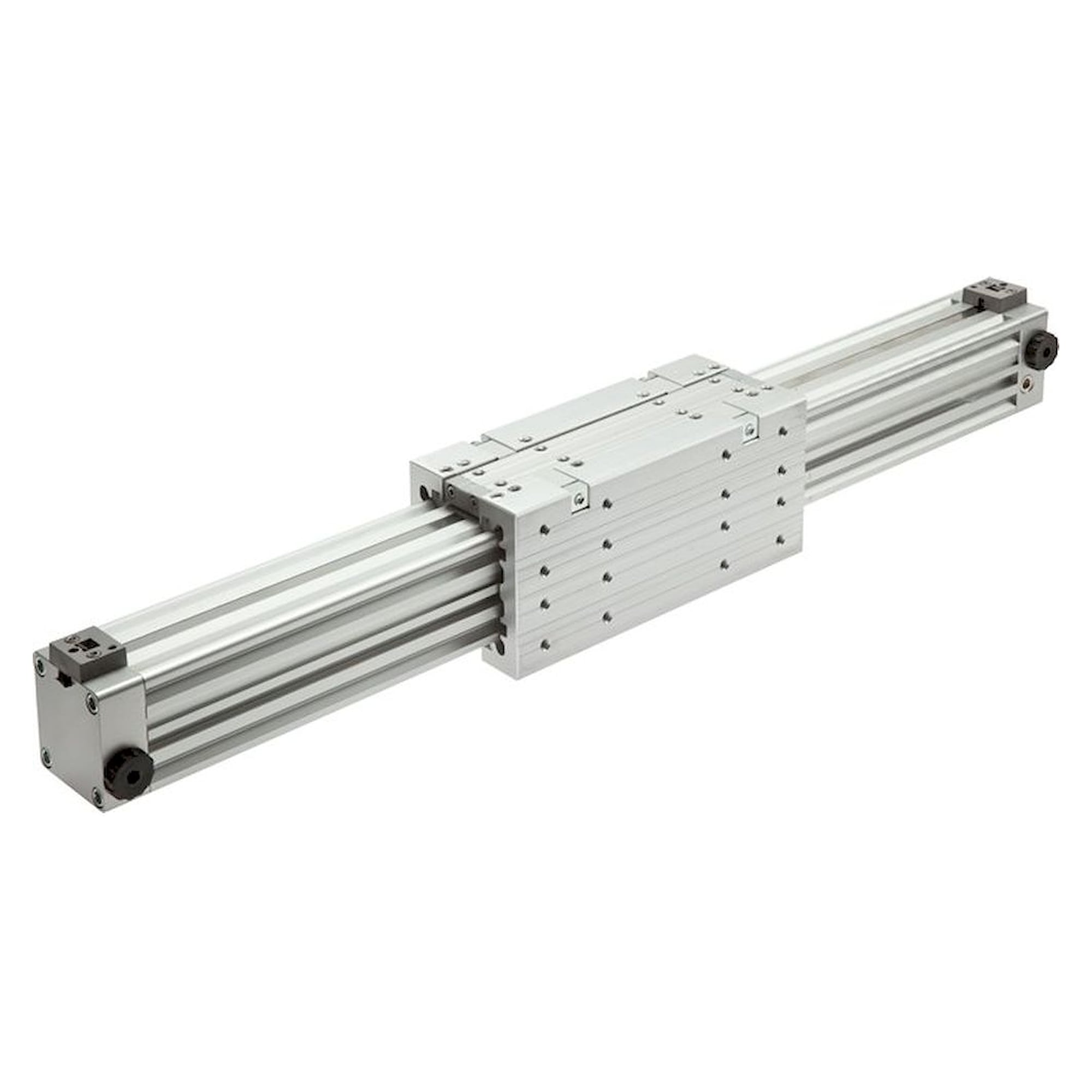

Kolbenstangenloser Zylinder, Kolben Ø 63 mm, Hub 600 mm

Images are examples, some edited with AI. The technical data are authoritative. AI notice

Rodless cylinder Ø 63 mm, stroke 600 mm, G 3/8, with sliding guide, lateral force 2300 N - Fluidics equipment

Fluidics equipment ✓ Original product Brand new

Up to 2300 N permissible lateral force thanks to the sliding guide: rodless cylinder Ø 63 mm with 600 mm stroke. Adjustable cushioning at both ends, compressed air port G 3/8, operating pressure up to 8 bar.

Net
€1,798.10
excl. VAT
Item FL-329900
Manufacturer no. LZF 63/600
Save Compare
Question about this item
Datasheet (PDF)
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

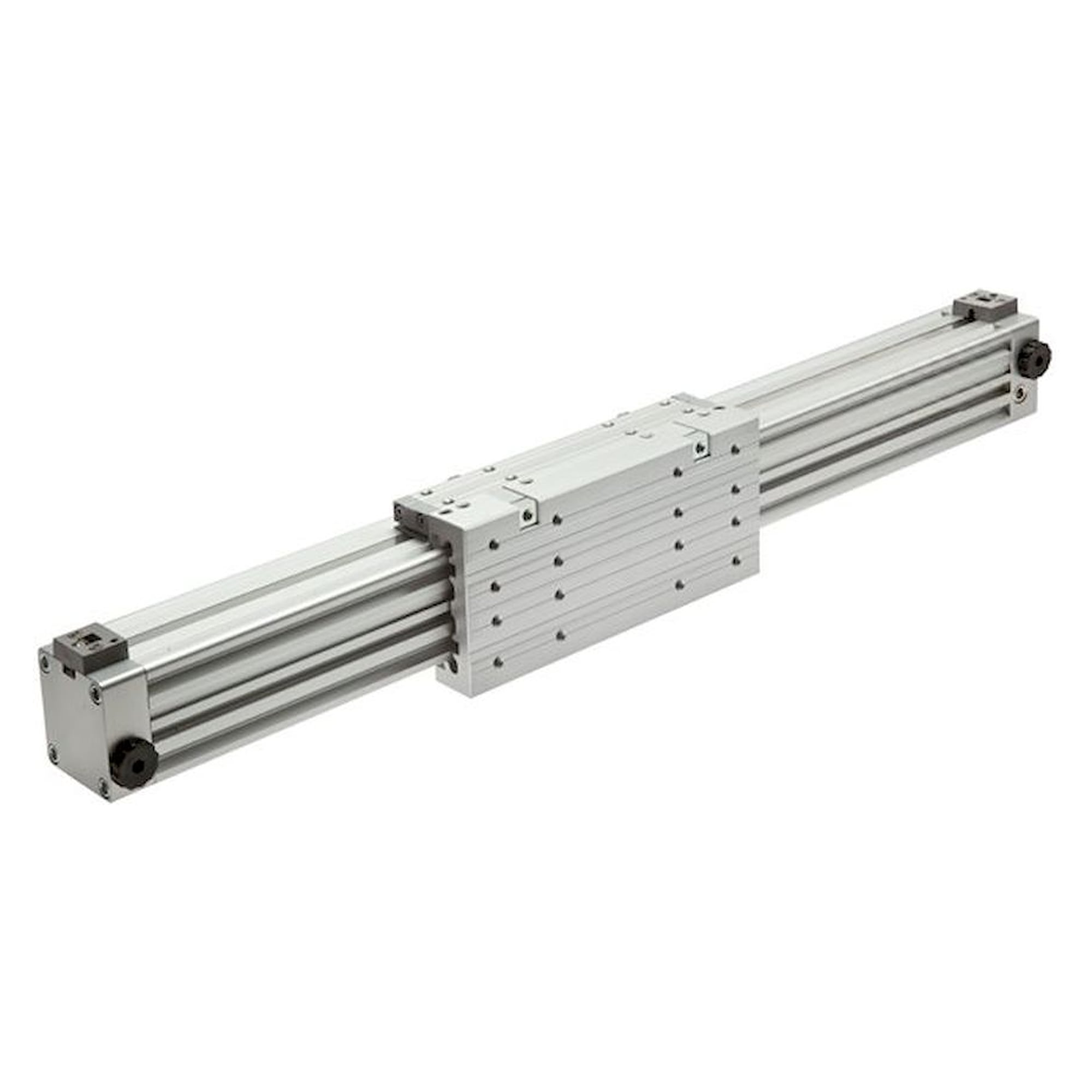

2300 N permissible lateral force and 600 mm stroke: the rodless cylinder with 63 mm piston diameter guides the load on its sliding guide.

Benefits

  • Sliding guide on the yoke, permissible lateral force 2300 N
  • Adjustable cushioning at both ends with 49 mm cushioning length
  • Compressed air port G 3/8 on both sides, convertible to one side or underneath by moving the sealing plugs
  • Magnetic piston for end-position sensing with cylinder switches
  • Tube, cylinder heads and driver in anodised aluminium, stainless steel cover band, NBR/PUR seals

Applications

Any mounting position is possible. Mounting the Ø 63 mm cylinder with the yoke facing down keeps dirt away from the tube slot. The sliding guide carries lateral loads up to 2300 N without an additional linear guide.

Technical data

FeatureValue
Product typeRodless cylinder
Designstandard series
Guidesliding guide
Piston diameter63 mm
Stroke600 mm
Compressed air portG 3/8, both sides
Permissible lateral force2300 N
Operating pressuremax. 8 bar
Temperature range-20 to +80 °C
End-position cushioningadjustable at both ends
Cushioning length49 mm
Magnetic pistonyes
Cylinder tube, heads, driveraluminium, anodised
Cover bandstainless steel
SealsNBR, PUR
Mounting positionany, preferably yoke facing down
Dimension A215 mm
Dimension A1125.0 mm
Dimension AF230 mm
Dimension AF170 mm
Dimension AM40 mm
Dimension B105 mm
Dimension E333 mm
Dimension E1153 mm
Dimension F280 mm
Dimension F1100 mm
Dimension G140 mm
Dimension J8.0 mm
Dimension M54.0 mm
Dimension MF136 mm
Dimension N (thread)M 8
Dimension N115.0 mm
Dimension O9.0 mm
Dimension OP8.8 mm
Dimension S78.0 mm
Dimension T (thread)M 8
Dimension T112 mm
Dimension U93 mm
Dimension W113.5 mm
Dimension WF134 mm
Customs tariff number84123100
Weight1 kg
ManufacturerFluidics equipment
Hersteller-NrLZF 63/600
EAN4050571819460
Zolltarifnummer84123100
GPSR HerstellerdatenA1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Ausführungmit Gleitführung, mit Magnetkolben
BauformStandardbauform
ThreadG 3/8
Piston Ø [mm]63
Stroke [mm]600
Seal materialNBR, PUR
Housing materialAluminium, anodised
Cushioningadjustable
Betriebsdruck max [bar]8
Temperaturbereich-20-80 °C
Temperature (max.)80
