The centre mounting supports the rodless cylinder at the middle of its length. The underlying rating is a piston diameter of 63 mm. The dimensions come to 144 x 125 x 107.0 mm.

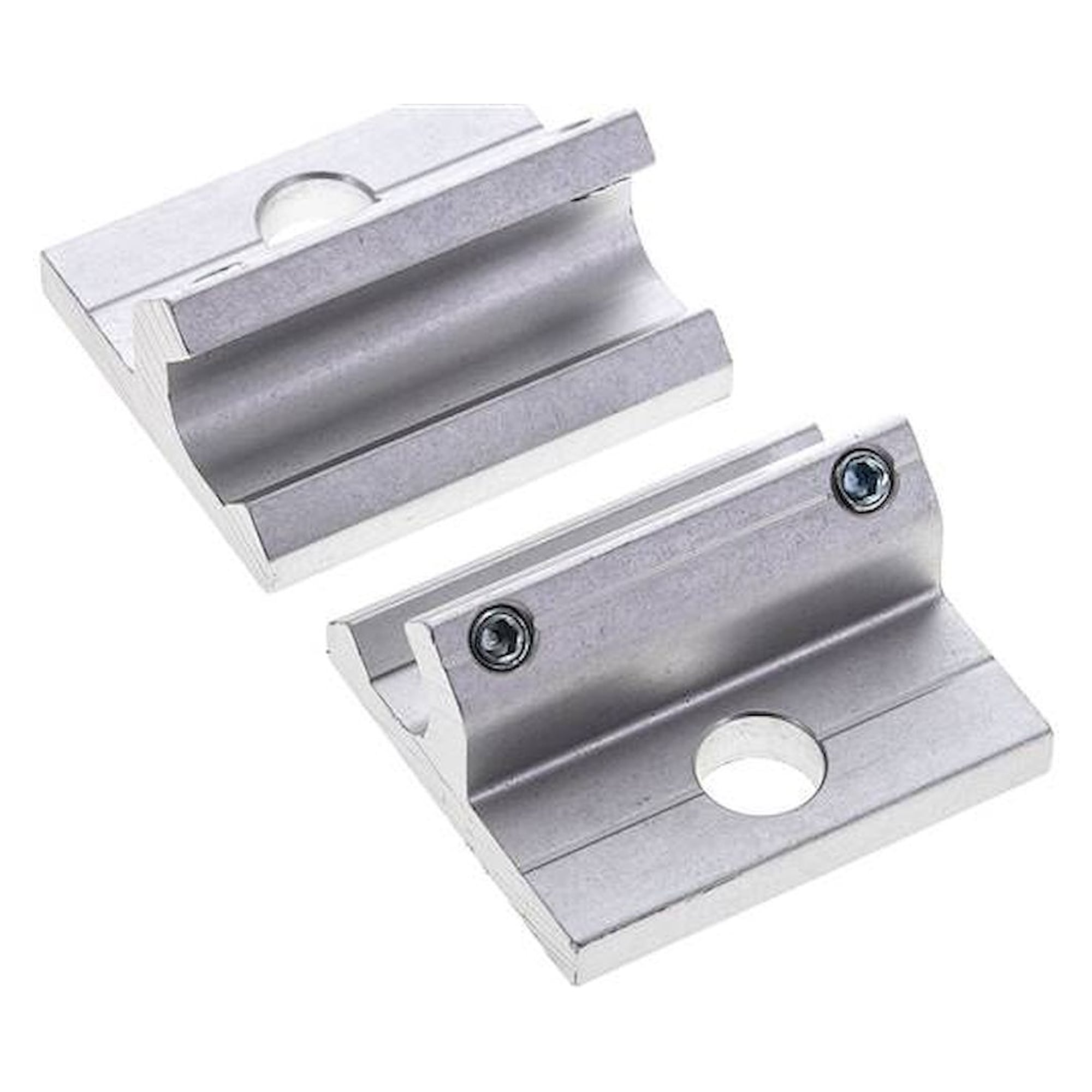

Centre mounting for rodless cylinders, for piston diameter 63 mm
FLUIDICS EQUIPMENT
Original product
Net price (excl. VAT)
€122.57
Item
FL-041632
Manufacturer no.
LZ 63 MB
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.LZ 63 MB
EAN4050571469931
Customs tariff number84129080
ConditionNew
Artikel
FL-041632
In use, the centre mounting supports the rodless cylinder at the middle of its length. It is supplied with 144 mm for dimension A, 125 mm for dimension B and 107.0 mm for dimension C.
Benefits
- Matched to cylinders with a 63 mm piston diameter.
- Dimension A comes to 144 mm for size 63 mm.
- Dimension B comes to 125 mm for size 63 mm.
- Dimension D comes to 48 mm for size 63 mm.
- For piston diameter 63 mm.
Technical data
| For piston diameter [mm] | 63 |
|---|---|
| Dimension A [mm] | 144 |
| Dimension B [mm] | 125 |
| Dimension C [mm] | 107.0 |
| Dimension D [mm] | 48 |
| Dimension E [mm] | 11 |
| Dimension F [mm] | 22.0 |
| Dimension G [mm] | 6.0 |
| Dimension H [mm] | 4.5 |
| Scope of delivery | 2 centre mountings incl. fixing screws |
Applications
In machine and plant construction the centre mounting holds a cylinder with a 63 mm piston diameter in place.
| Weight | 0.095000 |
|---|---|
| Manufacturer | Fluidics equipment |
| Hersteller-Nr | LZ 63 MB |
| EAN | 4050571469931 |
| Zolltarifnummer | 84129080 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
