The stop limits the stroke of the guided cylinder at a fixed point. The underlying rating is a piston diameter of 63 mm. The dimensions come to 140 x 78.0 x 40 mm.

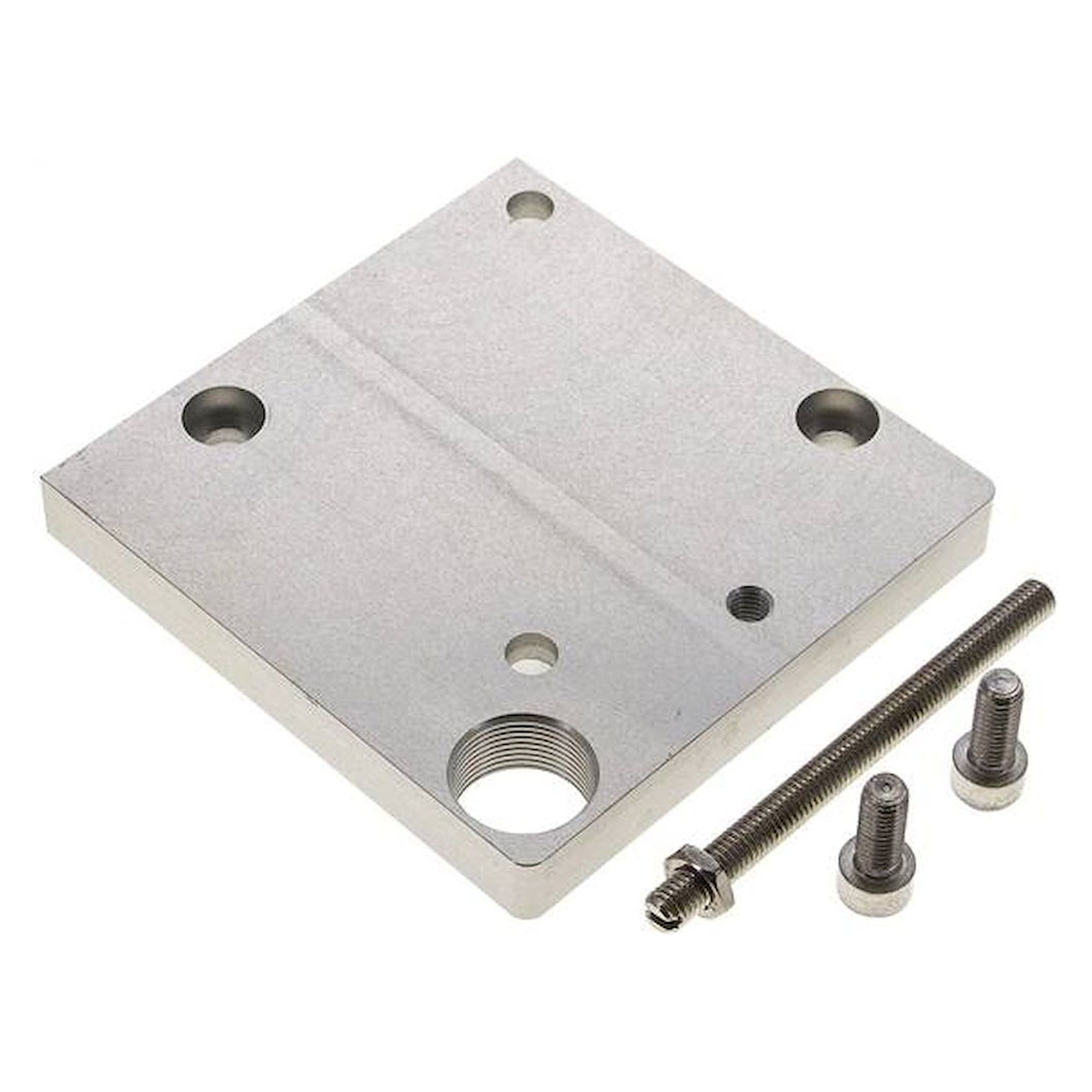

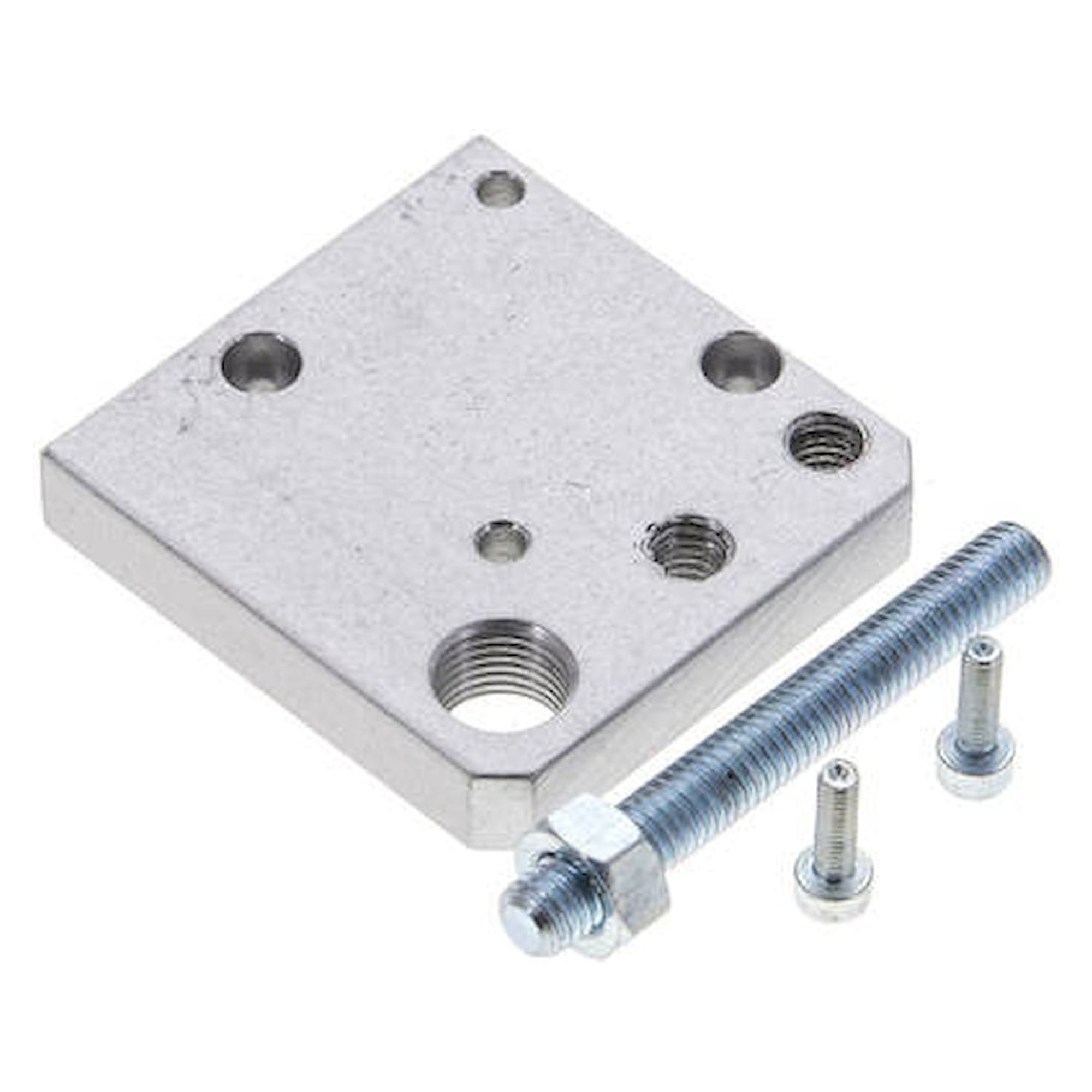

Stop for guided cylinders, version fixed, for piston diameter 63 mm
FLUIDICS EQUIPMENT
Original product
Net price (excl. VAT)
€209.79
€176.29
Item
FL-041608
Manufacturer no.
LZ 63 AS
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.LZ 63 AS
EAN4050571469900
Customs tariff number84129080
ConditionNew
Artikel
FL-041608
Frequently Bought Together
-
This Item:
€209.79 €176.29
-
Stop for guided cylinders, version fixed, for piston diameter 50 mm
€189.81 €159.50
-

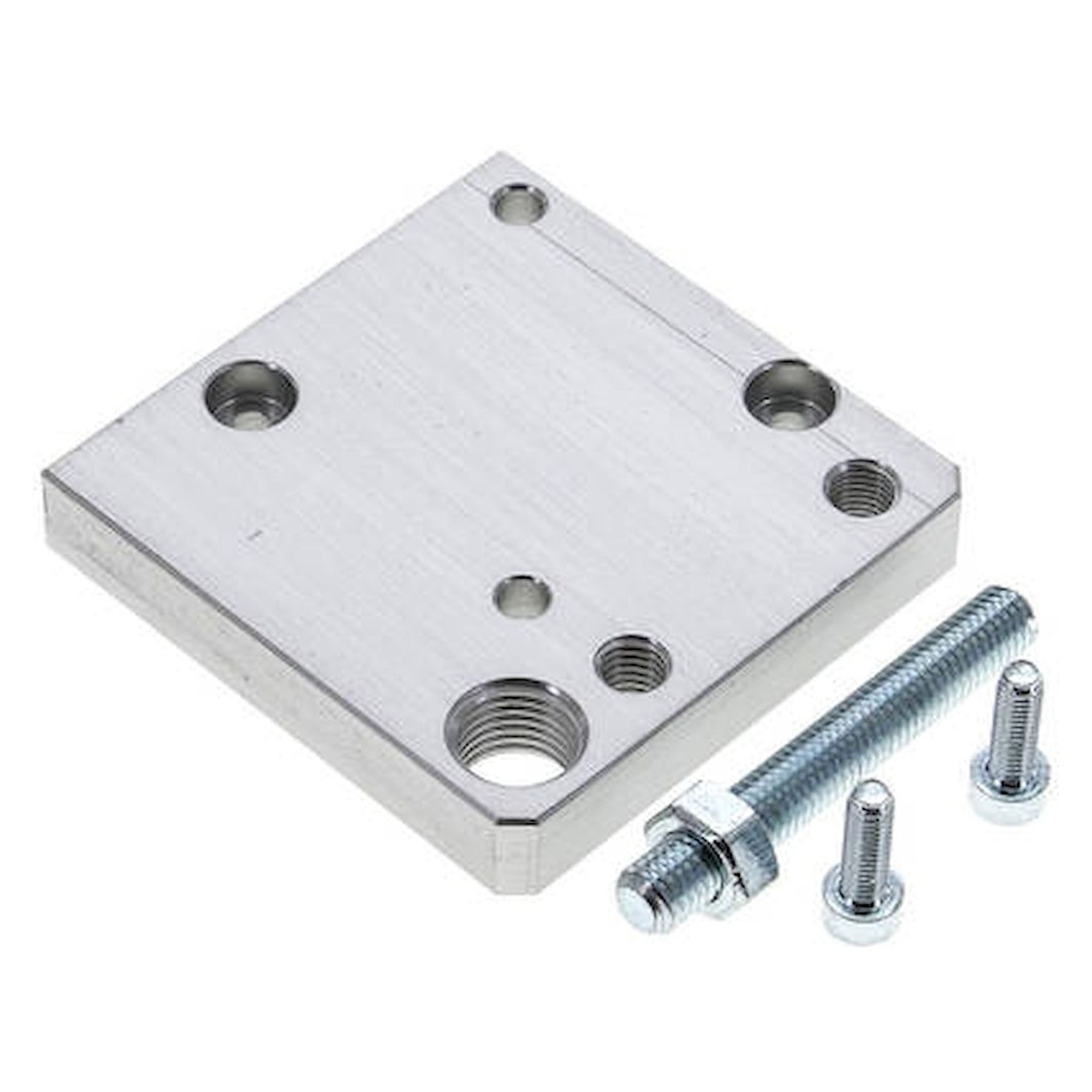

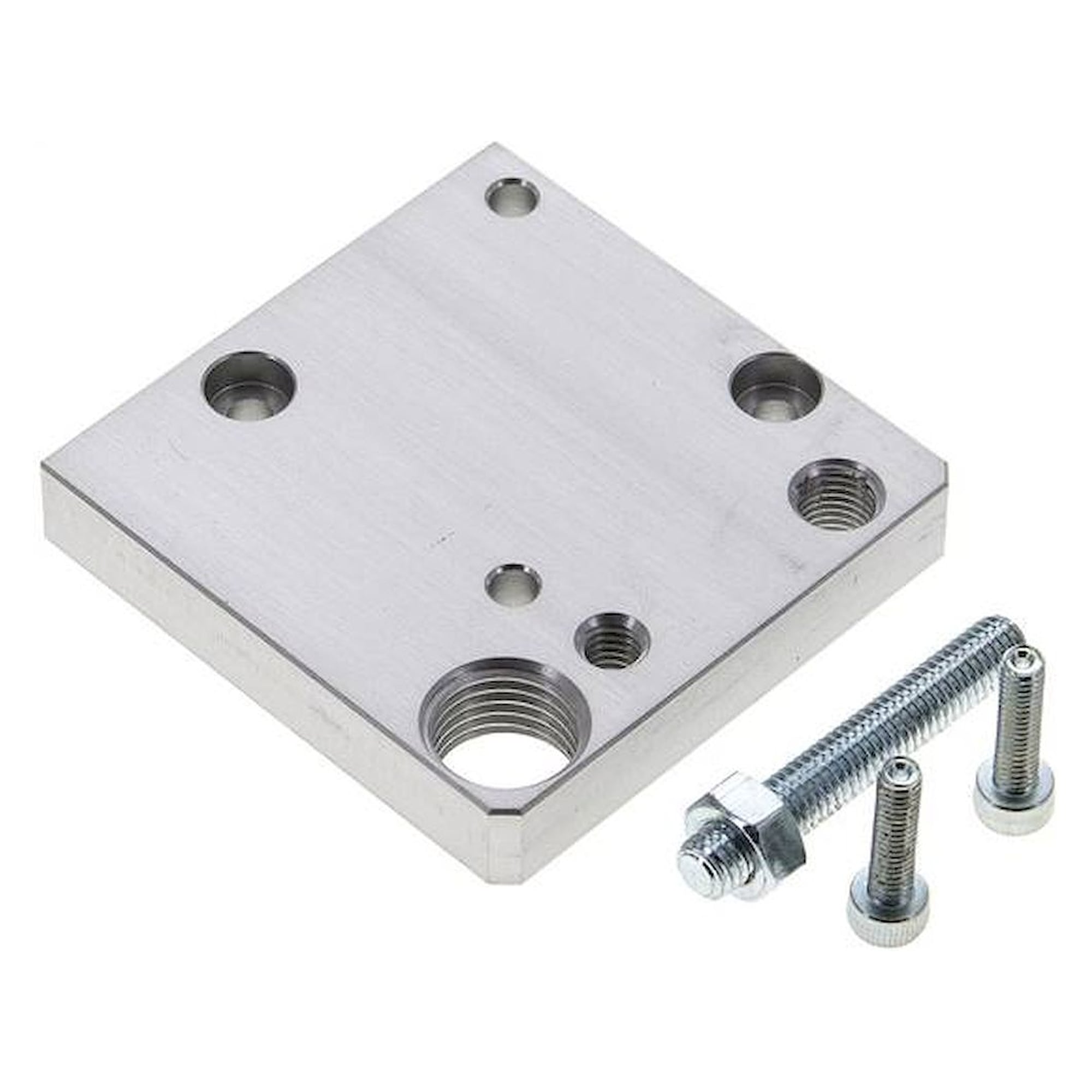

Stop for guided cylinders, version fixed, for piston diameter 25 mm
€126.54 €106.34
In use, the stop limits the stroke of the guided cylinder at a fixed point. It is supplied with 140 mm for dimension E, 78.0 mm for dimension H and 40 mm for dimension O.
Benefits
- Matched to cylinders with a 63 mm piston diameter.
- The stop carries a stop screw and a female thread M 8 for a shock absorber.
- Dimension E comes to 140 mm for size 63 mm.
- Dimension H comes to 78.0 mm for size 63 mm.
- For piston diameter of 63 mm as per the data sheet.
Technical data
| Version | fixed |
|---|---|
| For piston diameter [mm] | 63 |
| Dimension AH [mm] | 4.5 |
| Dimension E [mm] | 140 |
| Dimension F [mm] | 118.5 |
| Dimension G [mm] | 20.0 |
| Dimension H [mm] | 78.0 |
| Thread M | M 25x1,5 |
| Dimension N [mm] | 15 |
| Dimension O [mm] | 40 |
| Thread T | M 8 |
Applications
In infeed units the stop limits the stroke of the 63 mm cylinder.
| Hersteller-Nr | LZ 63 AS |
|---|---|
| Manufacturer | Fluidics equipment |
| EAN | 4050571469900 |
| Weight | 0.600000 |
| Zolltarifnummer | 84129080 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikel-Authentizität | Original product |
| Artikelzustand | New |
| Position sensing | No |
