This compensating bracket prevents constraint from misalignment between cylinder and external guide. What counts here is a piston diameter of 40 mm. The dimensions come to 80 x 107.0 x 60 mm.

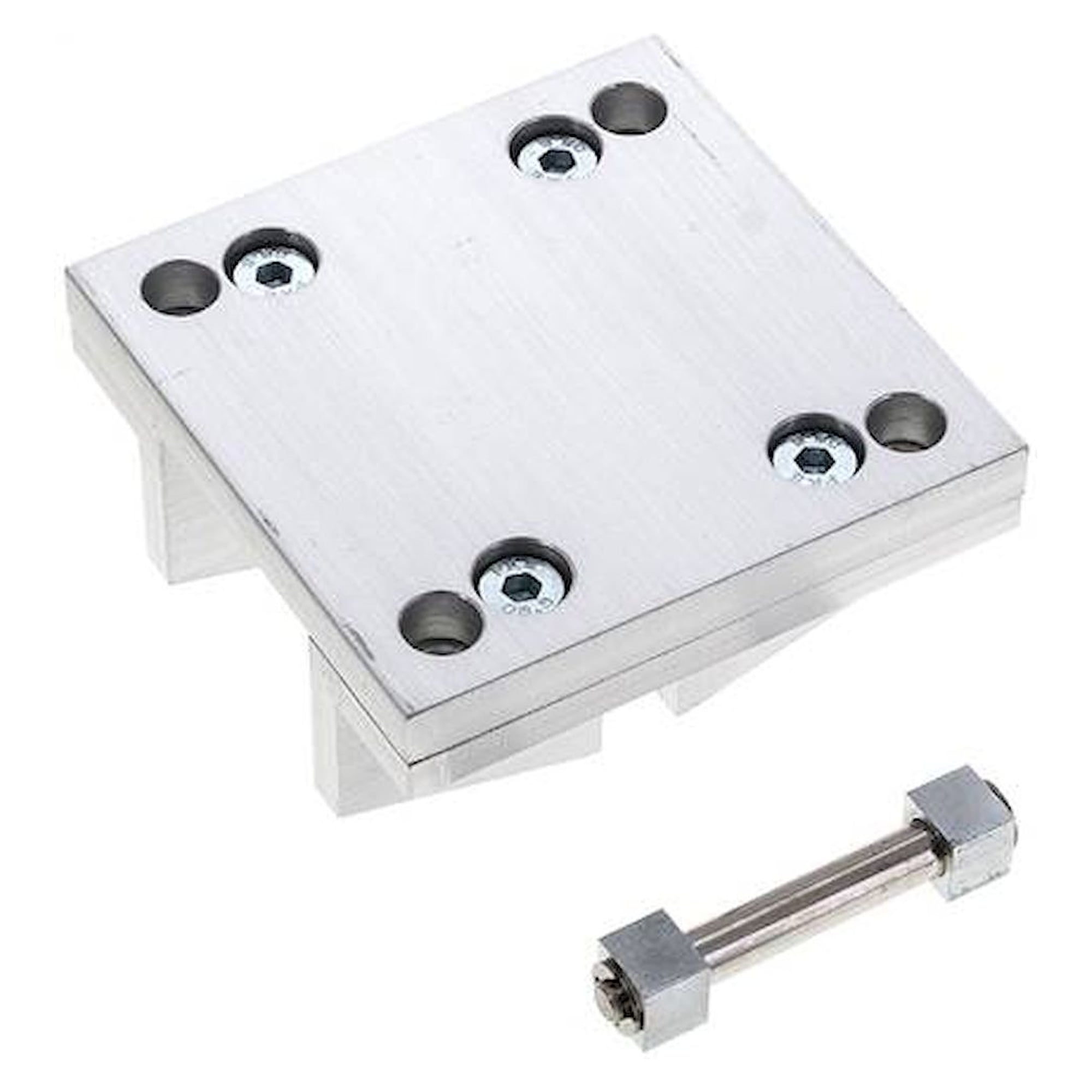

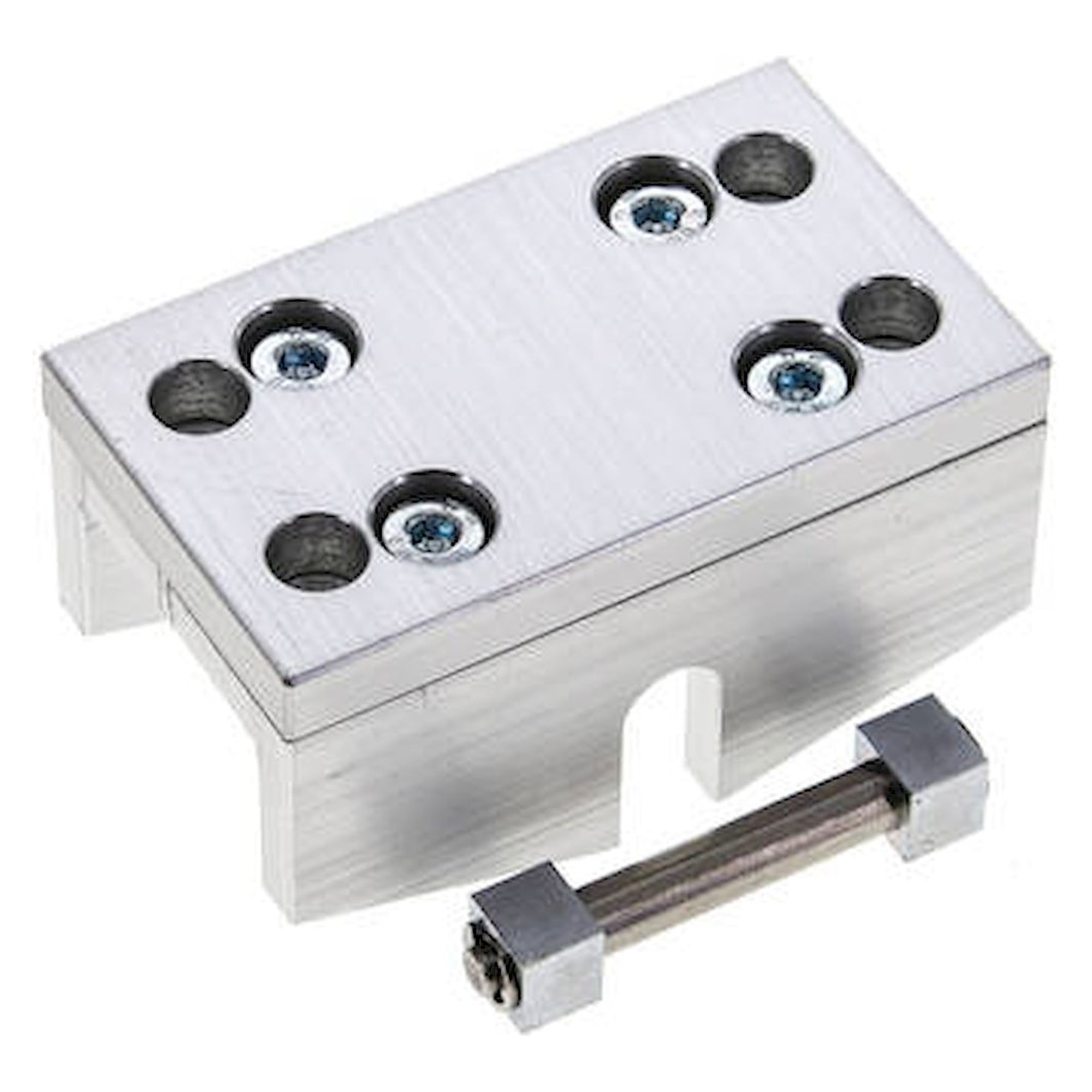

Compensating bracket for rodless cylinders, wide design, for piston diameter 40 mm
FLUIDICS EQUIPMENT
Original product
Net price (excl. VAT)
€145.47
Item
FL-041624
Manufacturer no.
LZ 40 PBB
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.LZ 40 PBB
EAN4050571469726
Customs tariff number84129080
ConditionNew
Artikel
FL-041624
Frequently Bought Together
-
This Item:
€145.47
-

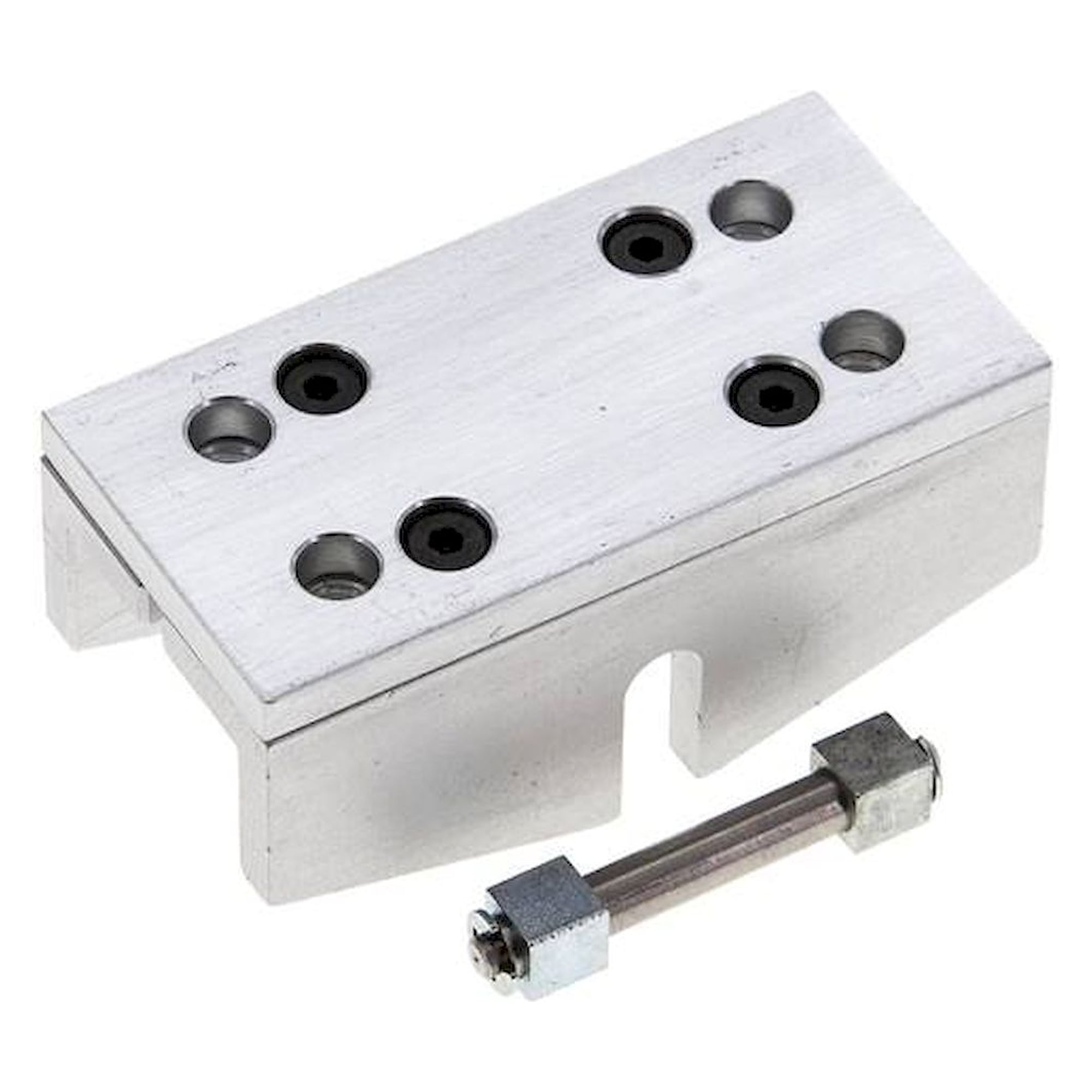

Compensating bracket for rodless cylinders, wide design, for piston diameter 25 mm
€117.52
-

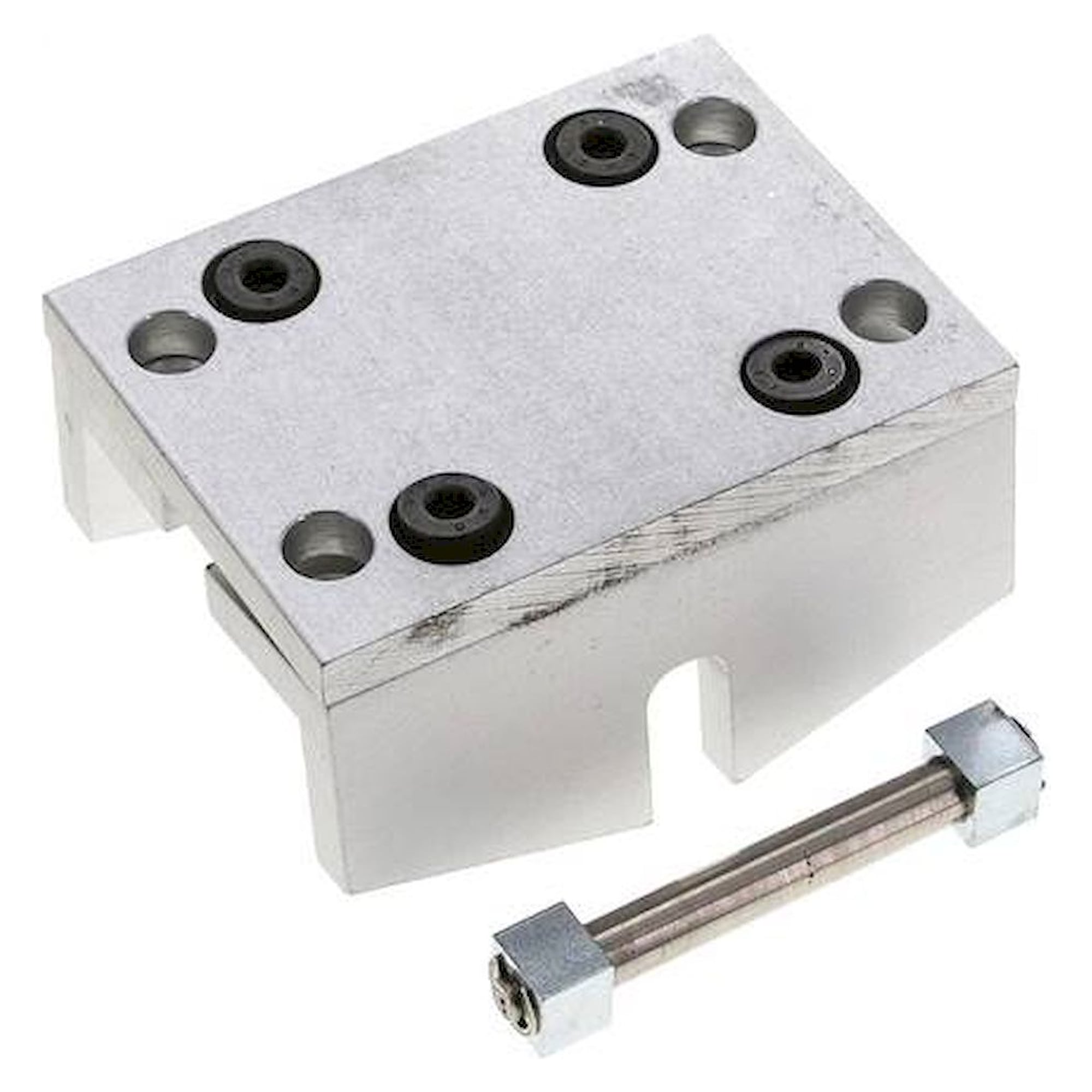

Compensating bracket for rodless cylinders, narrow design, for piston diameter 63 mm
€176.29
Total price
Once installed, the compensating bracket prevents constraint from misalignment between cylinder and external guide. This version is listed with 80 mm for dimension A, 107.0 mm for dimension H and 60 mm for dimension D. Decisive for the selection is a piston diameter of 40 mm.
Benefits
- Matched to cylinders with a 40 mm piston diameter.
- Dimension A comes to 80 mm for size 40 mm.
- Dimension H comes to 107.0 mm for size 40 mm.
- Dimension D comes to 60 mm for size 40 mm.
- For piston diameter 40 mm.
Technical data
| For piston diameter [mm] | 40 |
|---|---|
| Design | wide |
| Dimension A [mm] | 80 |
| Dimension C [mm] | 80.0 |
| Dimension D [mm] | 60 |
| Dimension F [mm] | 60 |
| Thread G | M 8 |
| Dimension H [mm] | 107.0 |
| Dimension J [mm] | 4.5 |
| Dimension K [mm] | 8 |
| Dimension M [mm] | 8 |
| Thread L | M 6 |
Applications
In gantries and travel axes the compensating bracket relieves the 40 mm cylinder.
| Hersteller-Nr | LZ 40 PBB |
|---|---|
| Manufacturer | Fluidics equipment |
| EAN | 4050571469726 |
| Weight | 0.270000 |
| Zolltarifnummer | 84129080 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikel-Authentizität | Original product |
| Artikelzustand | New |
| Position sensing | No |
