This stop limits the stroke of the guided cylinder at a fixed point. What counts here is a piston diameter of 40 mm. The dimensions come to 105 x 51.0 x 30 mm.
Stop for guided cylinders, version fixed, for piston diameter 40 mm
FLUIDICS EQUIPMENT Original product
Net price (excl. VAT)
€159.83 €134.31
Item FL-041606
Manufacturer no. LZ 40 AS
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.LZ 40 AS
EAN4050571469689
Customs tariff number84129080
ConditionNew
Artikel
FL-041606
Frequently Bought Together
- This Item: €159.83 €134.31

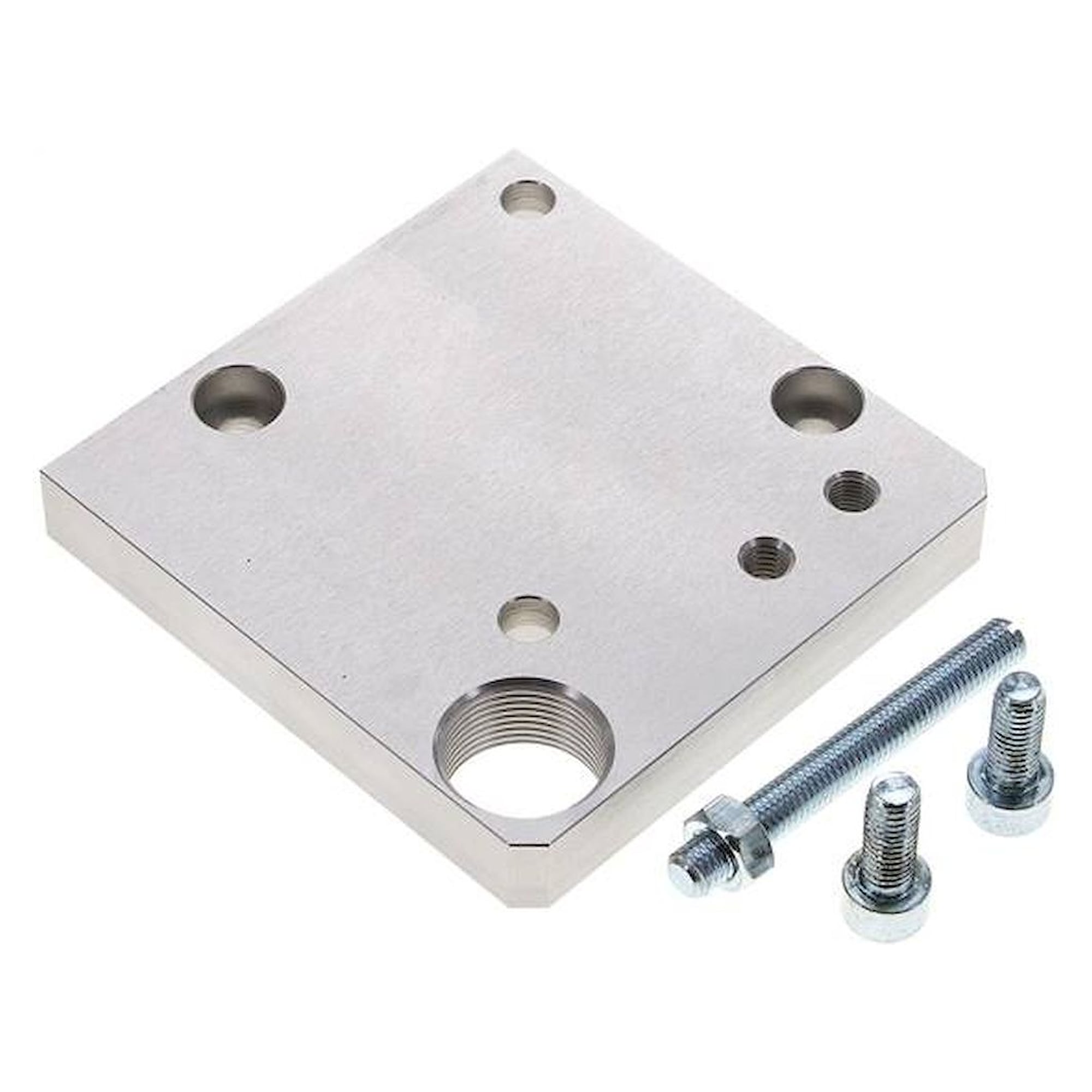

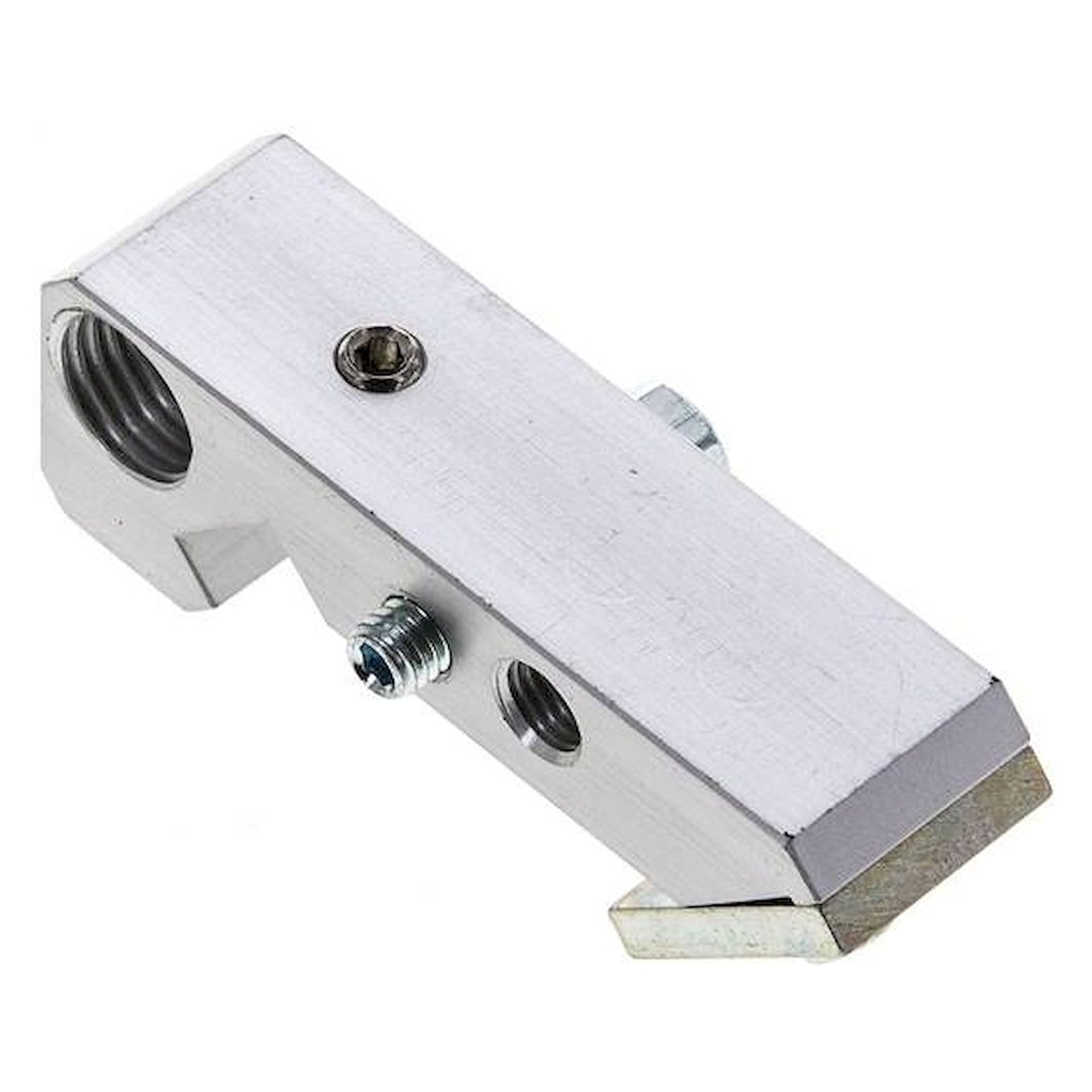

- Stop for guided cylinders, version adjustable, for piston diameter 50 mm €259.72 €218.25
- Stop for guided cylinders, version fixed, for piston diameter 18 mm €113.22 €95.14
Once installed, the stop limits the stroke of the guided cylinder at a fixed point. This version is listed with 105 mm for dimension E, 51.0 mm for dimension H and 30 mm for dimension O. Decisive for the selection is a piston diameter of 40 mm.
Benefits
- Matched to cylinders with a 40 mm piston diameter.
- The stop carries a stop screw and a female thread M 6 for a shock absorber.
- Dimension E comes to 105 mm for size 40 mm.
- Dimension H comes to 51.0 mm for size 40 mm.
- For piston diameter of 40 mm as per the data sheet.
Technical data
| Version | fixed |
|---|---|
| For piston diameter [mm] | 40 |
| Dimension AH [mm] | 3.0 |
| Dimension E [mm] | 105 |
| Dimension F [mm] | 93.0 |
| Dimension G [mm] | 16.0 |
| Dimension H [mm] | 51.0 |
| Thread M | M 25x1,5 |
| Dimension N [mm] | 15 |
| Dimension O [mm] | 30 |
| Thread T | M 6 |
Applications
In infeed units the stop limits the stroke of the 40 mm cylinder.
| Hersteller-Nr | LZ 40 AS |
|---|---|
| Manufacturer | Fluidics equipment |
| EAN | 4050571469689 |
| Weight | 0.350000 |
| Zolltarifnummer | 84129080 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikel-Authentizität | Original product |
| Artikelzustand | New |
| Position sensing | No |
