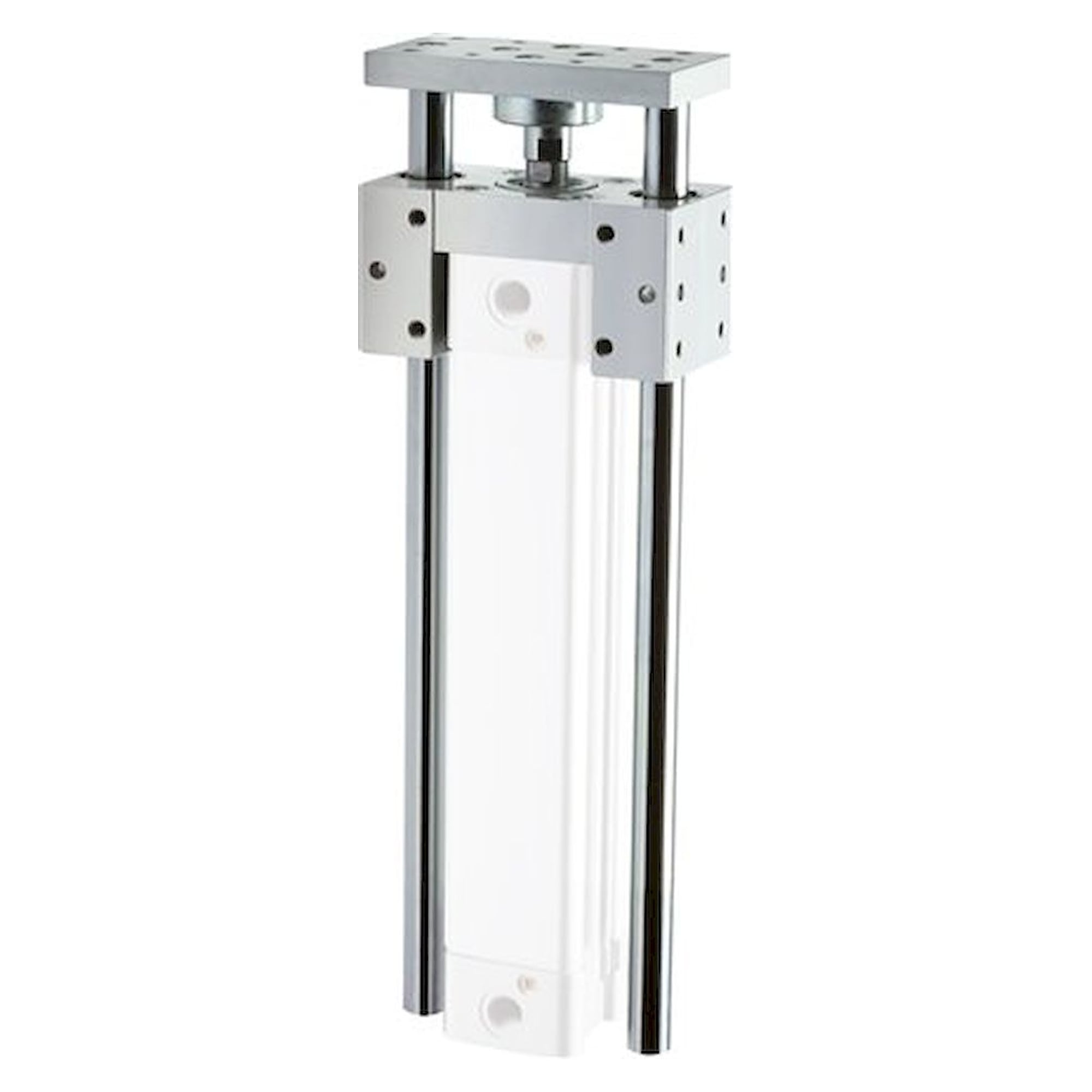

Guide unit for ISO15552-Ø 63mm, stroke 160mm
Datasheet (PDF)
Pictures are for reference and may not be accurate, actual product may differ
Guide unit for ISO15552-Ø 63mm, stroke 160mm

Guide unit for ISO15552-Ø 63mm, stroke 160mm

FLUIDICS EQUIPMENT Original product
Net price (excl. VAT)
€510.09 €428.65
excl. Shipping Cost
Available Fast shipping
Item FL-250490
Manufacturer no. LE 63/160 CG
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.LE 63/160 CG
EAN4050571465568
Customs tariff number84123100
ConditionNeu
Add to Wish List Add to Compare
Artikel
FL-250490
Function:
Guide units are used for anti-rotation safety and absorbing side forces with standard cylinders.

Materials:
Body: anodized aluminium, guide rods: hard chromium plated steel, wiper: NBR, bearing: steel or sintered bronze

Temperature range:
-30 to +100 °C

Version C with
sliding guide
for piston diameter [mm] 63
Stroke [mm] 160
MA / MB* [Nm] 26 / 23
A [mm] 152
B [mm] 85
C [mm] 85,2
CH [mm] 20
D1 [mm] 25
E1 [mm] 15,30
E2 [mm] 56,5
E3 [mm] 15,30
F [mm] 147
G [mm] 80
H [mm] 15
I [mm] 20
L6 [mm] 161
L7 [mm] 64
L8 [mm] 76
N [mm] 9,0
O [mm] 16
P [mm] 15
Q [mm] 9,0
S M 8
T [mm] 105
U [mm] 100
V [mm] 56,5
Z [mm] 119
More Information
Hersteller-Nr LE 63/160 CG
Manufacturer Fluidics equipment
EAN 4050571465568
Weight 37.000000
Zolltarifnummer 84123100
GPSR Herstellerdaten A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment
Artikel-Authentizität Originalprodukt
Artikelzustand Neu
