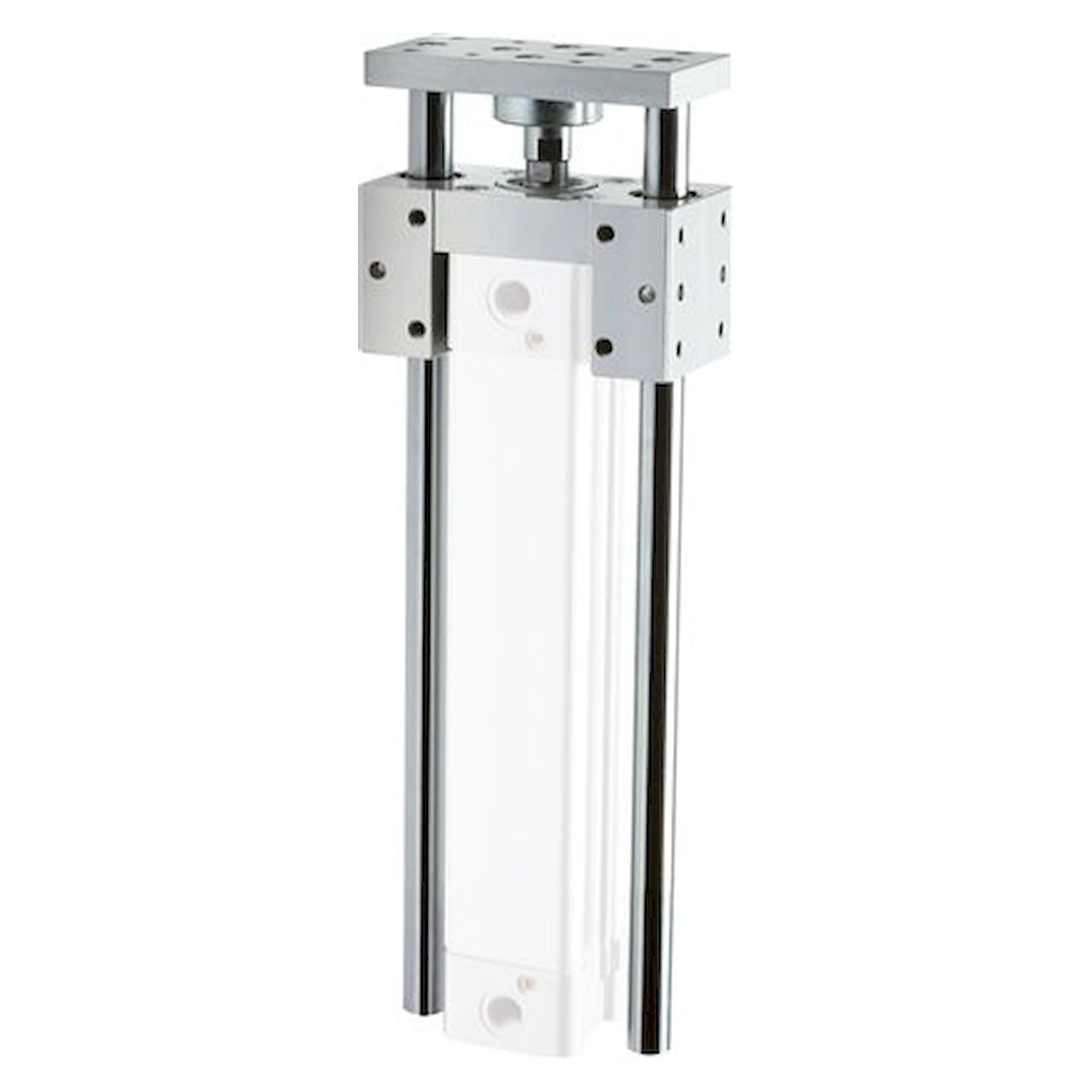

Guide unit for ISO15552-Ø 40mm, stroke 400mm

Function:
Guide units are used for anti-rotation safety and absorbing side forces with standard cylinders.

Materials:
Body: anodized aluminium, guide rods: hard chromium plated steel, wiper: NBR, bearing: steel or sintered bronze

Temperature range:
-30 to +100 °C

Version	C with sliding guide
for piston diameter [mm]	40
Stroke [mm]	400
MA / MB* [Nm]	21 / 19
A [mm]	115
B [mm]	58
C [mm]	58,2
CH [mm]	15
D1 [mm]	21
E1 [mm]	11,00
E2 [mm]	38,0
E3 [mm]	11,00
F [mm]	112
G [mm]	55
H [mm]	12
I [mm]	16
L6 [mm]	130
L7 [mm]	55
L8 [mm]	58
N [mm]	6,6
O [mm]	12
P [mm]	11
Q [mm]	6,5
S	M 6
T [mm]	84
U [mm]	69
V [mm]	38,0
Z [mm]	87
