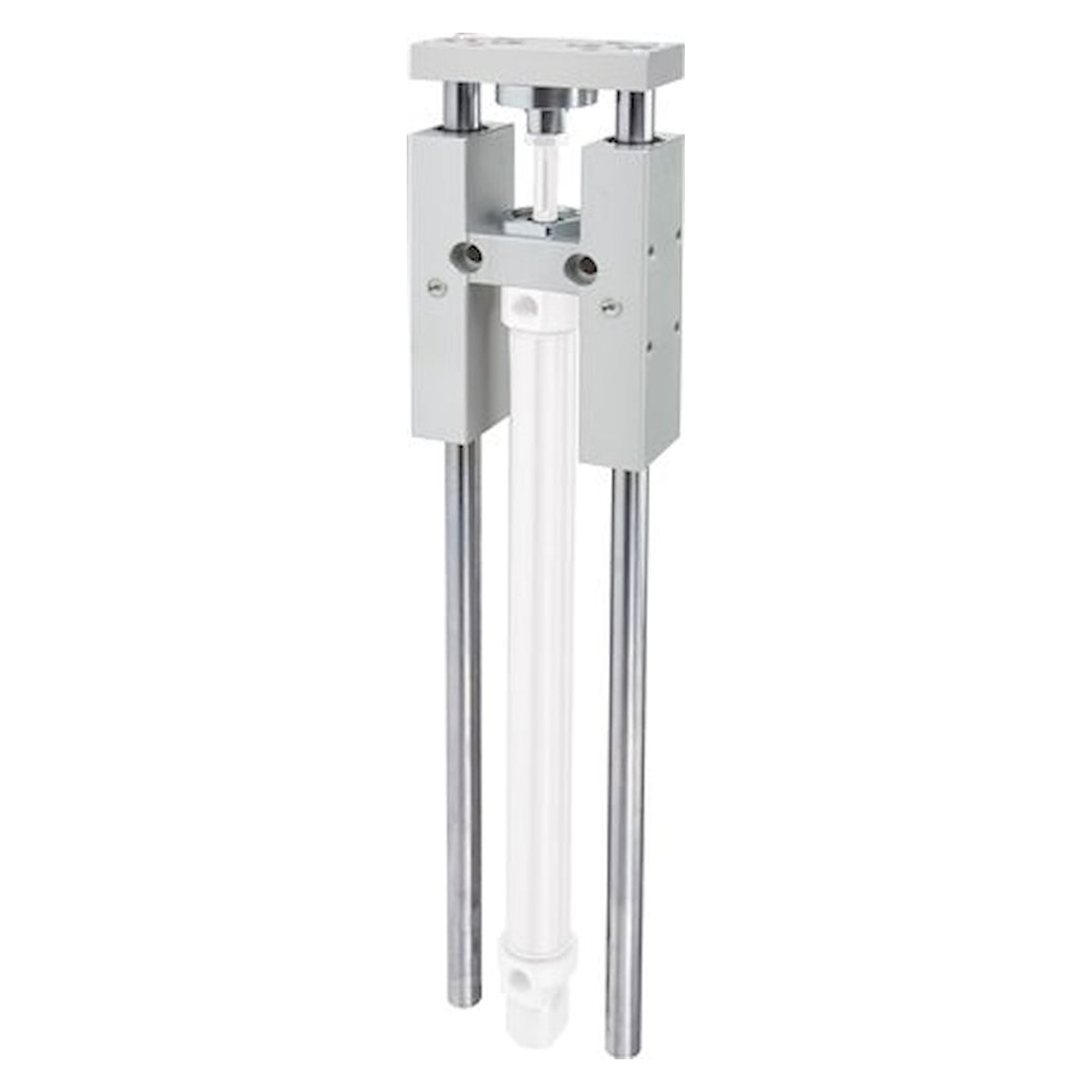

Guide unit type C with sliding guide for ISO 6432 piston Ø 20 and 25 mm, stroke 50 mm - Fluidics equipment
The guide unit protects round cylinders to ISO 6432 with piston Ø 20 and 25 mm against rotation and absorbs side loads, stroke 50 mm. Sliding guide in type C, moment MA / MB 13 / 12 Nm.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Side loads and rotation stress the piston rod and seals of a Ø 20 and 25 mm cylinder. The guide unit for ISO 6432 with 50 mm stroke takes up both.
Benefits
- Anti-rotation and absorption of side forces, moment MA / MB 13 / 12 Nm
- Sliding guide in type C
- Fits cylinders ISO 6432 with piston Ø 20 and 25 mm and 50 mm stroke
- Body of anodised aluminium, guide rods of hard chrome plated steel, NBR wipers
- Temperature range -30 to +100 °C
Applications
Typical on feeders, stoppers and lifting units with 50 mm stroke when the load does not sit exactly central on the piston rod.
Technical data
| Feature | Value |
|---|---|
| Type | C |
| Guide | sliding guide |
| For cylinders | ISO 6432 |
| For piston Ø | 20 and 25 mm |
| Stroke | 50 mm |
| Moment MA / MB | 13 / 12 Nm |
| Body | anodised aluminium |
| Guide rods | hard chrome plated steel |
| Wiper | NBR |
| Bearing | steel or sintered bronze |
| Temperature range | -30 to +100 °C |
| Dimension S | 11 |
| Dimension J | M 5 |
| Dimension K | M 6 |
| Dimension A | 79 mm |
| Dimension B | 34 mm |
| Dimension C | 37 mm |
| Dimension CH | 12 mm |
| Dimension D | 17 mm |
| Dimension D1 | 8.5 mm |
| Dimension E1 | 24.25 mm |
| Dimension F | 78 mm |
| Dimension G | 32 mm |
| Dimension H | 12 mm |
| Dimension I | 12 mm |
| Dimension L5 | 83.0 mm |
| Dimension L6 | 15 mm |
| Dimension L7 | 48 mm |
| Dimension M | 38 mm |
| Dimension N | 5.5 mm |
| Dimension O | 9 mm |
| Dimension P | 10 mm |
| Dimension Q | 7.5 mm |
| Dimension R | 6.5 mm |
| Dimension T | 6.5 mm |
| Dimension U | 38 mm |
| Dimension V | 68 mm |
| Dimension W1 | 32.5 mm |
| Dimension X | 20 mm |
| Dimension Y | 23 mm |
| Dimension Z | 58.0 mm |
| Weight | 1 kg |
| Manufacturer | Fluidics equipment |
| Hersteller-Nr | LE 25/50 CG |
| EAN | 4050571464394 |
| Zolltarifnummer | 84123100 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Ausführung | Bauform C, Gleitführung |
| Stroke [mm] | 50 |
| Housing material | Aluminium, anodised |
| Norm | ISO 6432 |
| Temperaturbereich | -30-100 °C |
