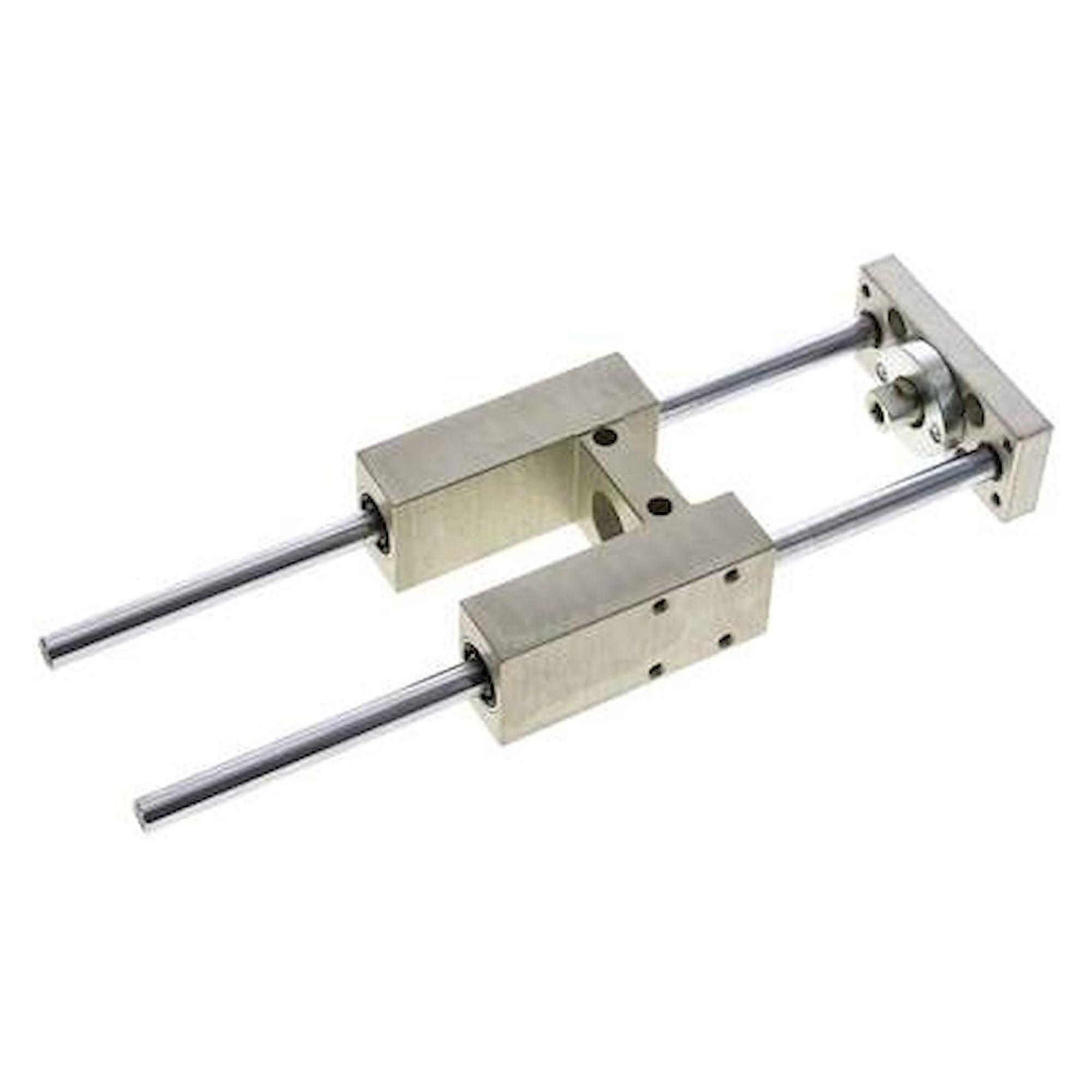

Guiding unit for ISO6432-Ø 20 & 25mm, stroke 320mm
Datasheet (PDF)
Images are for illustration purposes only and may differ from the actual product. Some images have been generated or edited, in whole or in part, using artificial intelligence systems. The technical specifications in the product description are authoritative.
Guiding unit for ISO6432-Ø 20 & 25mm, stroke 320mm

Guiding unit for ISO6432-Ø 20 & 25mm, stroke 320mm

FLUIDICS EQUIPMENT Original product
Net price (excl. VAT)
€294.12 €247.16
Item FL-250429
Manufacturer no. LE 25/320 CG
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.LE 25/320 CG
EAN4050571464301
Customs tariff number84123100
ConditionNew
Add to Wish List Add to Compare
Artikel
FL-250429
Function:
Guide units are used for anti-rotation safety and absorbing side forces with standard cylinders.

Materials:
Body: anodized aluminium, guide rods: hard chromium plated steel, wiper: NBR, bearing: steel or sintered bronze

Temperature range:
-30 to +100 °C

Version C with
sliding guide
for piston diameter [mm] 20 & 25
Stroke [mm] 320
MA / MB* [Nm] 13 / 12
A [mm] 79
B [mm] 34
C [mm] 37
CH [mm] 12
D [mm] 17
D1 [mm] 8,5
E1 [mm] 24,25
F [mm] 78
G [mm] 32
H [mm] 12
I [mm] 12
J M 5
K M 6
L5 [mm] 83,0
L6 [mm] 15
L7 [mm] 48
M [mm] 38
N [mm] 5,5
O [mm] 9
P [mm] 10
Q [mm] 7,5
R [mm] 6,5
S 11
T [mm] 6,5
U [mm] 38
V [mm] 68
W1 [mm] 32,5
X [mm] 20
Y [mm] 23
Z [mm] 58,0
More Information
Hersteller-Nr LE 25/320 CG
Manufacturer Fluidics equipment
EAN 4050571464301
Weight 1.100000
Zolltarifnummer 84123100
GPSR Herstellerdaten A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment
Artikel-Authentizität Original product
Artikelzustand New
Position sensing No
