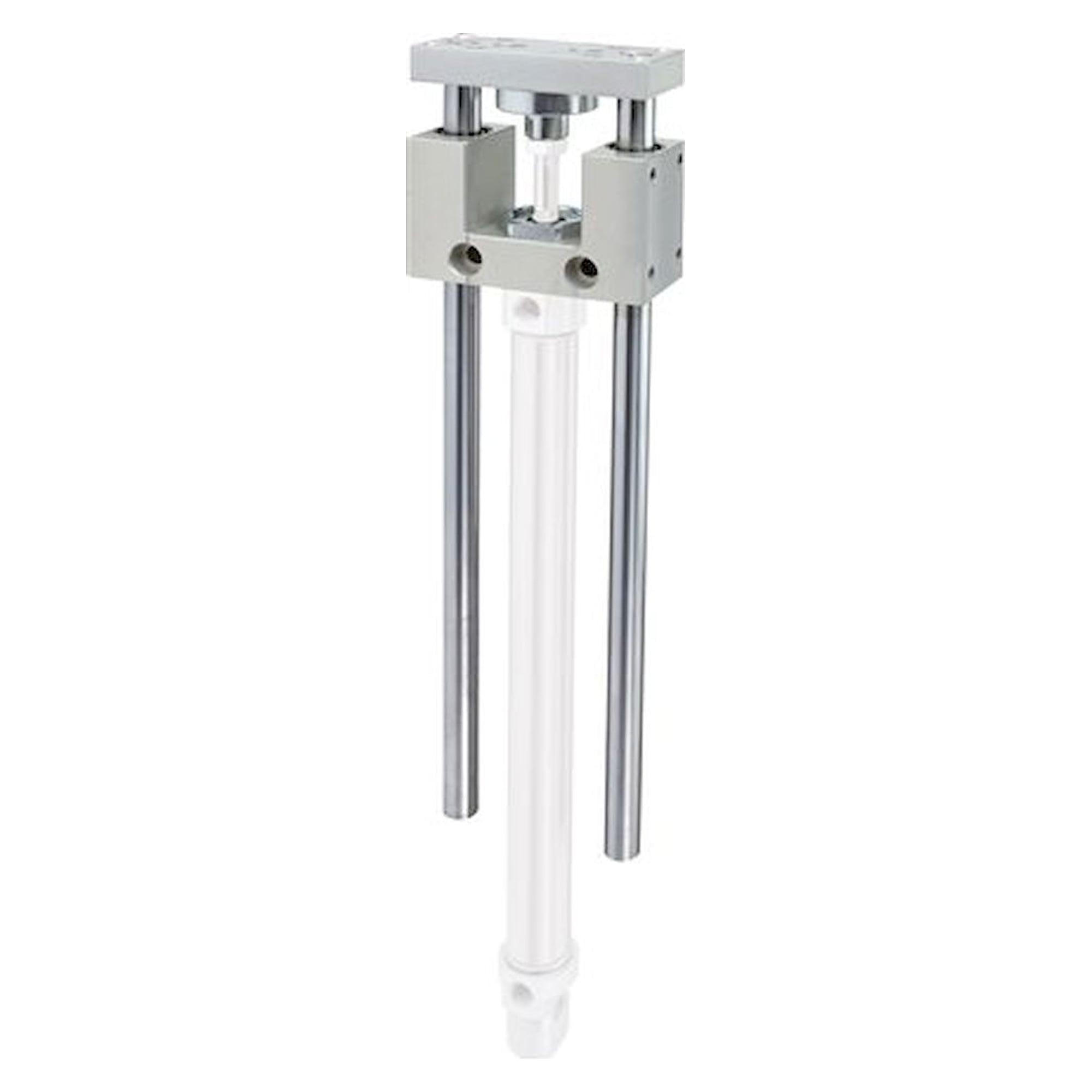

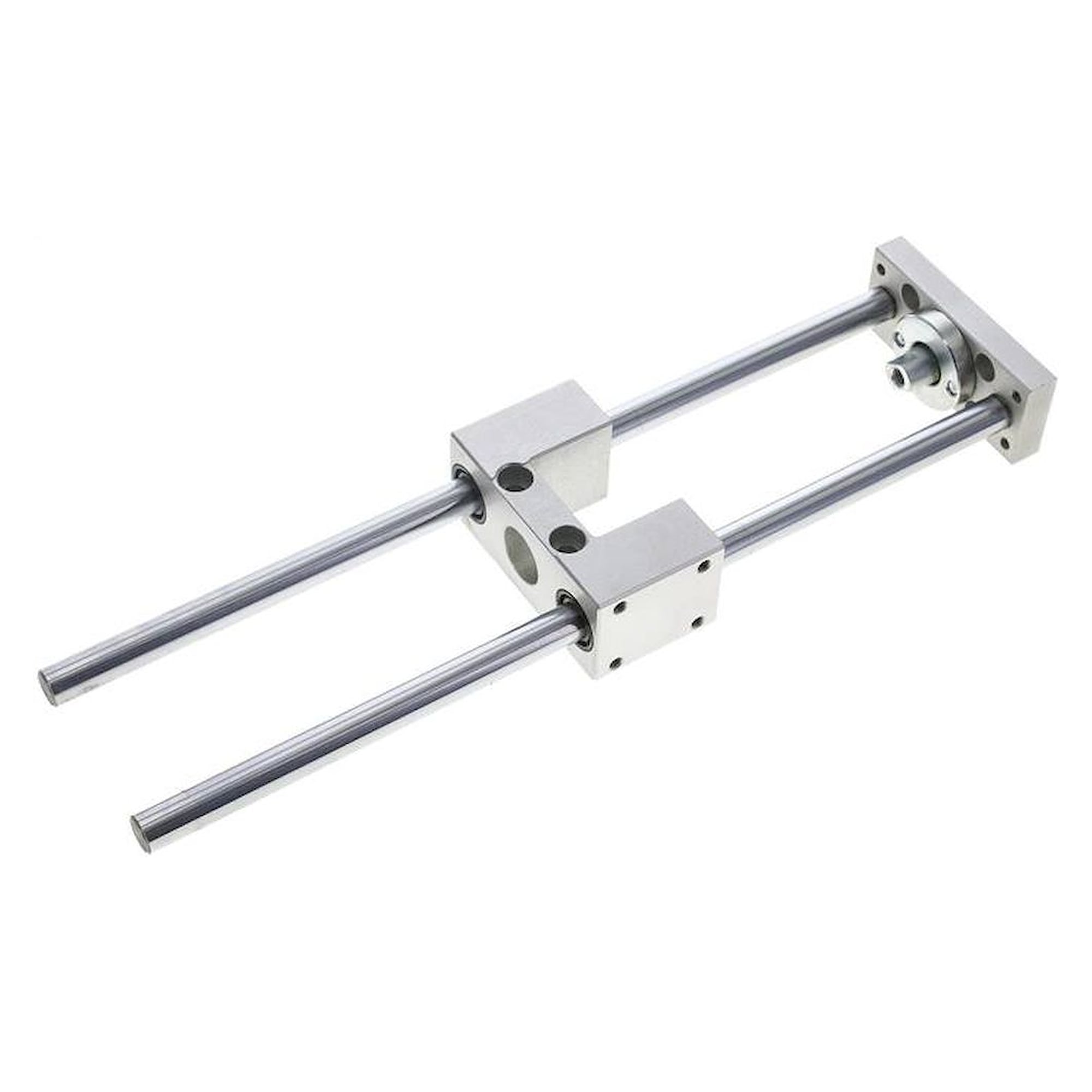

Guide unit type C with sliding guide for ISO 6432 piston Ø 12 and 16 mm, stroke 320 mm - Fluidics equipment
The guide unit protects round cylinders to ISO 6432 with piston Ø 12 and 16 mm against rotation and absorbs side loads, stroke 320 mm. Sliding guide in type C, moment MA / MB 6 / 5 Nm.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Side loads and rotation stress the piston rod and seals of a Ø 12 and 16 mm cylinder. The guide unit for ISO 6432 with 320 mm stroke takes up both.
Benefits
- Anti-rotation and absorption of side forces, moment MA / MB 6 / 5 Nm
- Sliding guide in type C
- Fits cylinders ISO 6432 with piston Ø 12 and 16 mm and 320 mm stroke
- Body of anodised aluminium, guide rods of hard chrome plated steel, NBR wipers
- Temperature range -30 to +100 °C
Applications
For lifting, pushing and positioning tasks in which a tool or gripper on the Ø 12 and 16 mm cylinder has to be guided free of rotation.
Technical data
| Feature | Value |
|---|---|
| Type | C |
| Guide | sliding guide |
| For cylinders | ISO 6432 |
| For piston Ø | 12 and 16 mm |
| Stroke | 320 mm |
| Moment MA / MB | 6 / 5 Nm |
| Body | anodised aluminium |
| Guide rods | hard chrome plated steel |
| Wiper | NBR |
| Bearing | steel or sintered bronze |
| Temperature range | -30 to +100 °C |
| Dimension S | 9 |
| Dimension J | M 4 |
| Dimension K | M 4 |
| Dimension A | 69 mm |
| Dimension B | 30 mm |
| Dimension C | 30 mm |
| Dimension CH | 8 mm |
| Dimension D | 12 mm |
| Dimension D1 | 6 mm |
| Dimension E1 | 19.50 mm |
| Dimension F | 66 mm |
| Dimension G | 29 mm |
| Dimension H | 10 mm |
| Dimension I | 10 mm |
| Dimension L5 | 66.5 mm |
| Dimension L6 | 13 mm |
| Dimension L7 | 38 mm |
| Dimension M | 32 mm |
| Dimension N | 4.5 mm |
| Dimension O | 6 mm |
| Dimension P | 8 mm |
| Dimension Q | 4.5 mm |
| Dimension R | 5.5 mm |
| Dimension T | 5.5 mm |
| Dimension U | 24 mm |
| Dimension V | 58 mm |
| Dimension W1 | 25.0 mm |
| Dimension X | 18 mm |
| Dimension Y | 22 mm |
| Dimension Z | 49.5 mm |
| Weight | 0.75 kg |
| Manufacturer | Fluidics equipment |
| Hersteller-Nr | LE 16/320 CG |
| EAN | 4050571463786 |
| Zolltarifnummer | 84123100 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Ausführung | Bauform C, Gleitführung |
| Stroke [mm] | 320 |
| Housing material | Aluminium, anodised |
| Norm | ISO 6432 |
| Temperaturbereich | -30-100 °C |
