Coupling plug NW 10, hose connection 13 mm (1/2 inch), nickel-plated brass, with double shut-off - Fluidics equipment

Fast coupling, safe separation: the coupling plug NW 10 with hose connection 13 mm (1/2 inch) works at -0.95 to 35 bar and reaches a flow rate of 1020 l/min.

Key benefits

• Operating pressure -0.95 to 35 bar, also for vacuum down to -0.95 bar
• Flow rate 1020 l/min at nominal size 10
• Body in nickel-plated brass
• Temperature range -20 to +100 °C
• Valve for double shut-off, both line sides stay closed on disconnection
• Compatible with Rectus (27, 41, 1700, 1727), TEMA (1700), CEJN (410)

Applications

Typical applications for the NW 10 coupling system are tool and machine connections with high air demand. The coupling plug connects directly to the hose line via its 13 mm hose connection.

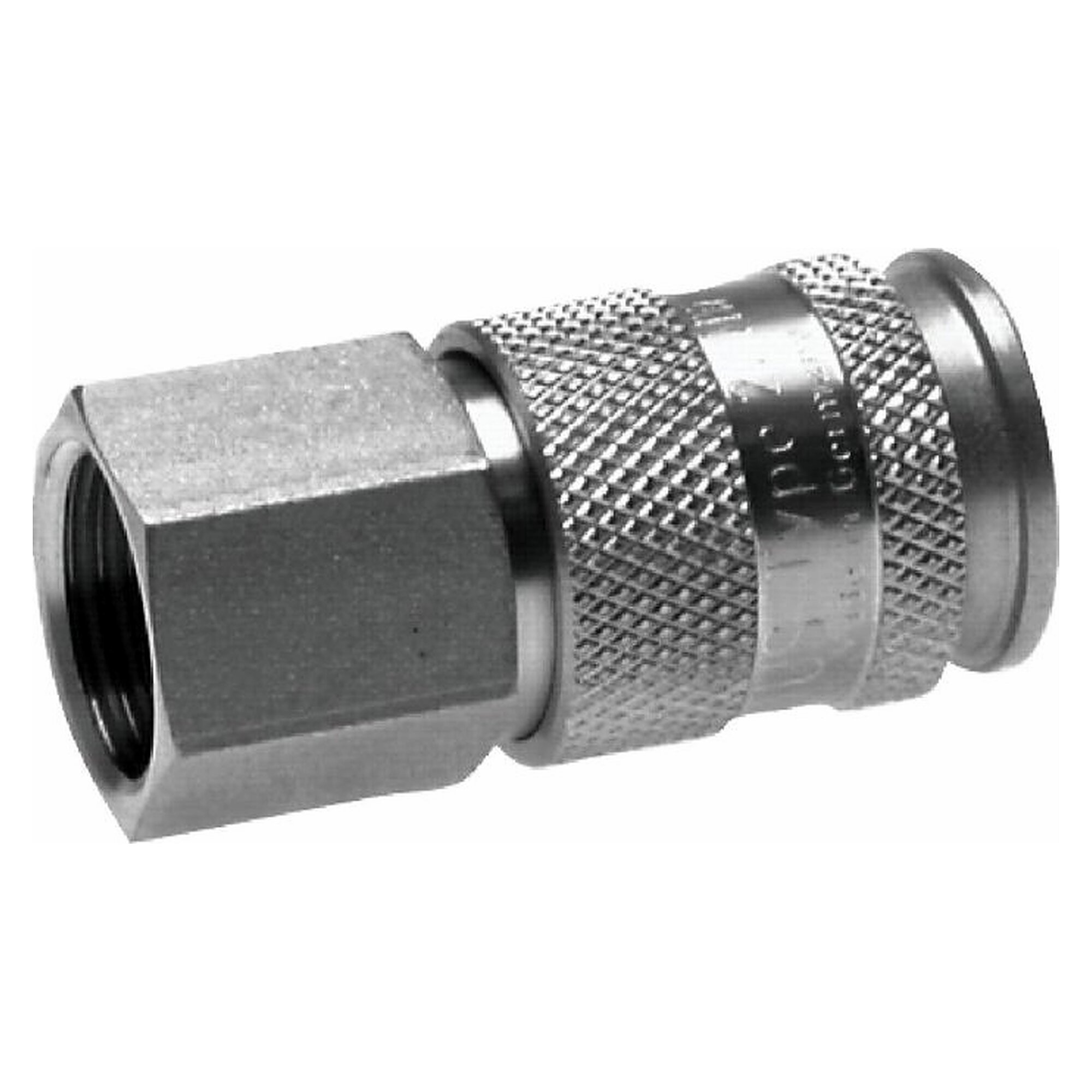

On disconnection the built-in valve closes both line sides, the counterpart is a NW 10 BA coupling socket.
