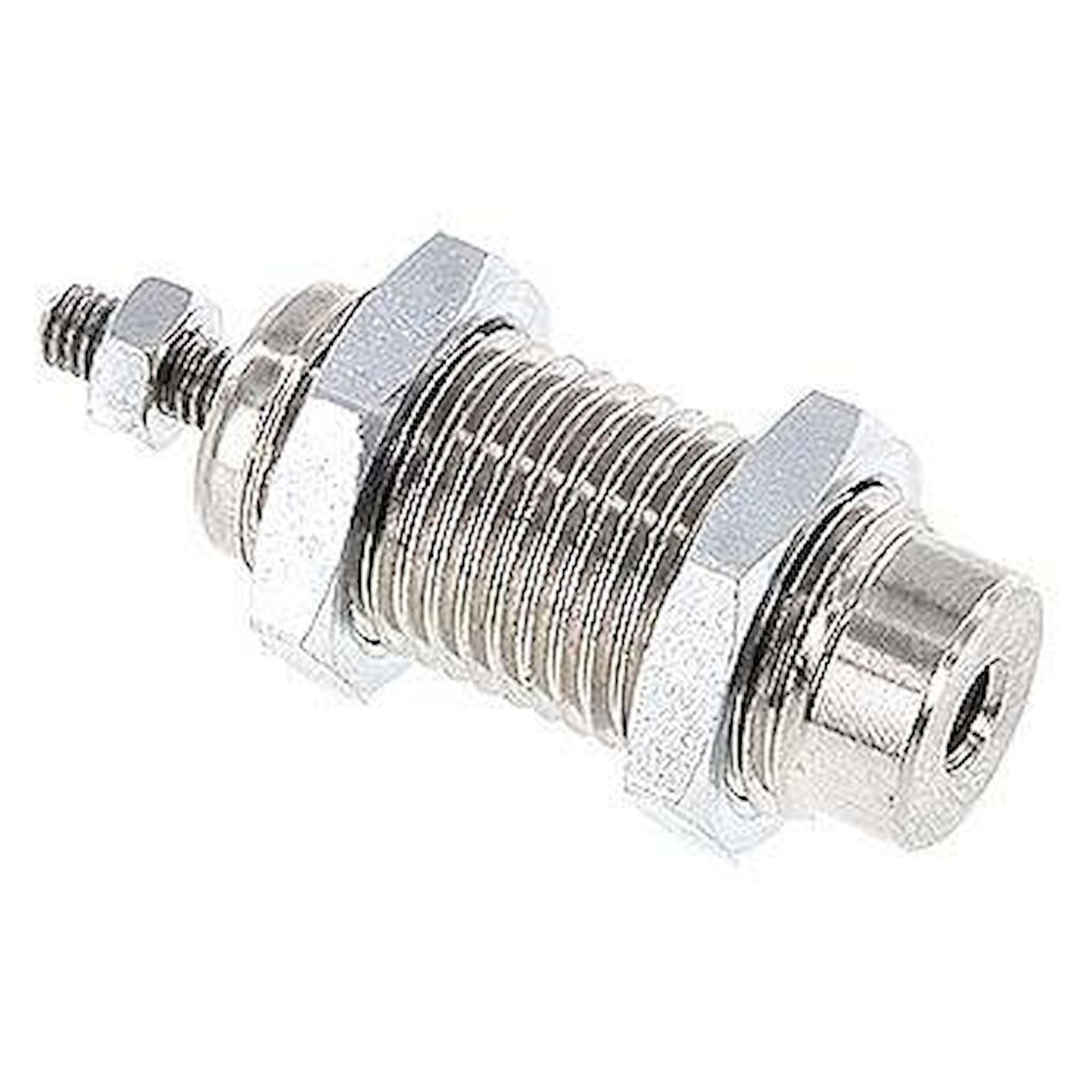

Screw-in cylinder single acting piston Ø 10 mm, stroke 15 mm, mounting thread M 15x1,5, piston rod without thread - Fluidics equipment

Fluidics equipment ✓ Original product Brand new

The screw-in cylinder with piston Ø 10 mm is screwed directly into the fixture or machine part via its external thread M 15x1,5. Compressed air extends the piston rod and a spring returns it, spring force 11 N extended and 4.5 N retracted.

Net
€22.49
excl. VAT
Item FL-032262
Manufacturer no. HB 10/15
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

One thread M 15x1,5, one port M 5 and 15 mm stroke: the screw-in cylinder Ø 10 mm needs no mounting of its own.

Benefits

  • Installed directly via mounting thread M 15x1.5, spanner size 19 mm
  • Spring return with 4.5 N retracted and 11 N extended
  • Body of nickel-plated brass, piston rod of stainless steel, NBR seal
  • Operating pressure up to 7 bar, temperature range -20 to +80 °C

Applications

For small clamping and positioning tasks with 15 mm stroke in fixture and mould making.

Technical data

FeatureValue
Designscrew-in cylinder, single acting with spring return
Piston Ø10 mm
Stroke15 mm
Piston rod versionwithout thread
Mounting threadM 15x1.5
Compressed air portM 5
Spring force retracted4.5 N
Spring force extended11 N
Operating pressuremax. 7 bar
Temperature range-20 to +80 °C
Bodynickel-plated brass
Piston rodstainless steel
SealNBR
Spanner size19 mm
Dimension B13.0 mm
Dimension E14 mm
Dimension F5 mm
Dimension G34.0 mm
Dimension H11.5 mm
Dimension M4 mm
Weight0.041 kg
ManufacturerFluidics equipment
Hersteller-NrHB 10/15
EAN4050571351458
Zolltarifnummer84123100
GPSR HerstellerdatenA1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
EinschraubgewindeM 15x1,5
ThreadM 5
Piston Ø [mm]10
Stroke [mm]15
Seal materialNBR
Housing materialNickel-plated brass
Functionsingle-acting
Betriebsdruck max [bar]7
Temperaturbereich-20-80 °C
