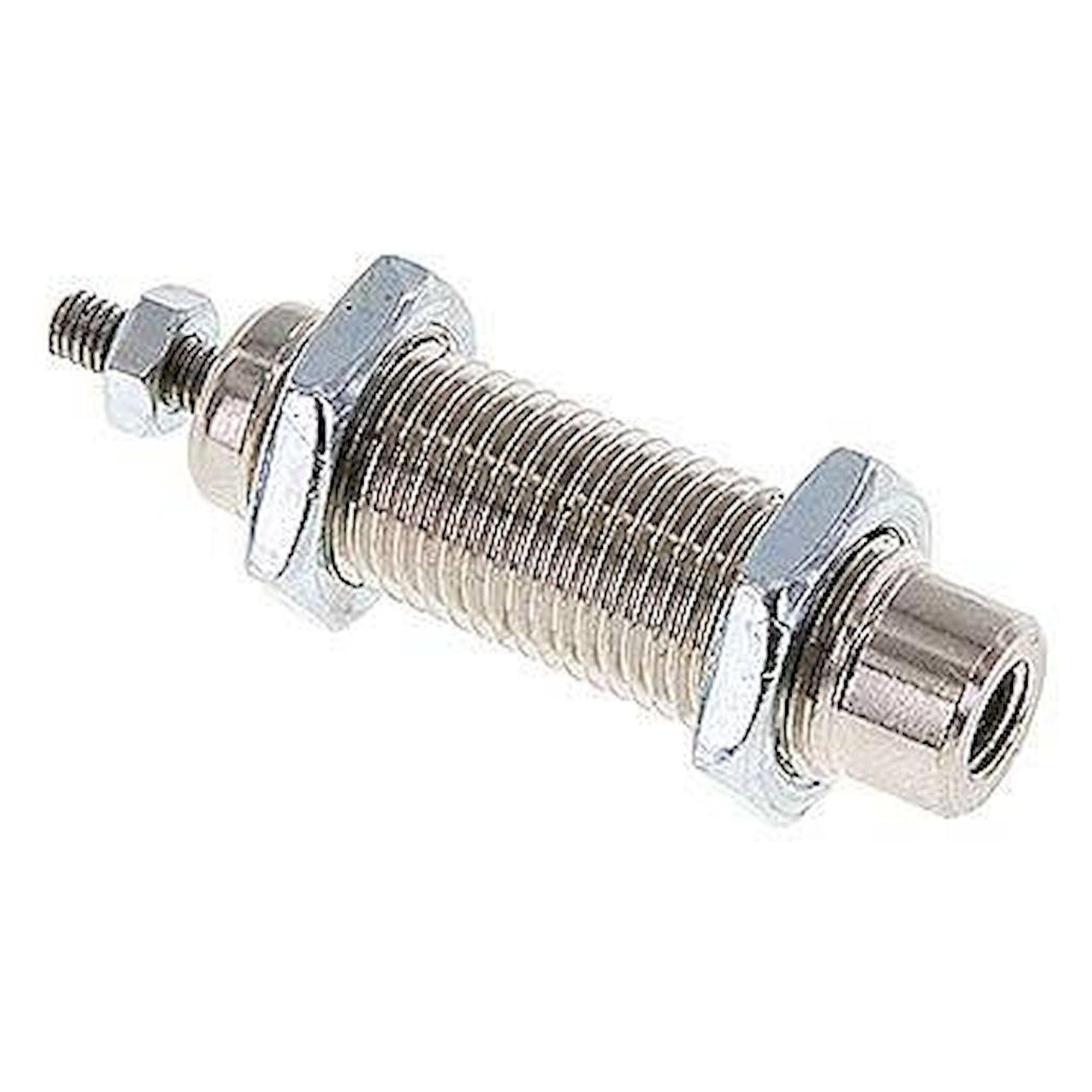

Screw-in cylinder single acting piston Ø 10 mm, stroke 5 mm, mounting thread M 15x1,5, piston rod with thread M 4 - Fluidics equipment
The screw-in cylinder with piston Ø 10 mm is screwed directly into the fixture or machine part via its external thread M 15x1,5. Compressed air extends the piston rod and a spring returns it, spring force 4 N extended and 1.5 N retracted.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
With 5 mm stroke and piston Ø 10 mm, this screw-in cylinder sits directly in the component via its thread M 15x1,5.
Benefits
- Installed directly via mounting thread M 15x1.5, spanner size 19 mm
- Spring return with 1.5 N retracted and 4 N extended
- Body of nickel-plated brass, piston rod of stainless steel, NBR seal
- Operating pressure up to 7 bar, temperature range -20 to +80 °C
- Piston rod thread M 4 for thrust pieces and attachments
Applications
Used in handling, assembly and test equipment when a Ø 10 mm cylinder with 5 mm stroke is to be screwed into the part.
Technical data
| Feature | Value |
|---|---|
| Design | screw-in cylinder, single acting with spring return |
| Piston Ø | 10 mm |
| Stroke | 5 mm |
| Piston rod version | with thread |
| Piston rod thread | M 4 |
| Mounting thread | M 15x1.5 |
| Compressed air port | M 5 |
| Spring force retracted | 1.5 N |
| Spring force extended | 4 N |
| Operating pressure | max. 7 bar |
| Temperature range | -20 to +80 °C |
| Body | nickel-plated brass |
| Piston rod | stainless steel |
| Seal | NBR |
| Spanner size | 19 mm |
| Dimension B | 13.0 mm |
| Dimension E | 14 mm |
| Dimension F | 5 mm |
| Dimension G | 20.5 mm |
| Dimension H | 11.5 mm |
| Dimension M | 4 mm |
| Weight | 0.03 kg |
| Manufacturer | Fluidics equipment |
| Hersteller-Nr | HA 10/5 |
| EAN | 4050571350352 |
| Zolltarifnummer | 84123100 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Einschraubgewinde | M 15x1,5 |
| Thread | M 5 |
| Piston Ø [mm] | 10 |
| Stroke [mm] | 5 |
| Seal material | NBR |
| Housing material | Nickel-plated brass |
| Function | single-acting |
| Betriebsdruck max [bar] | 7 |
| Temperaturbereich | -20-80 °C |
