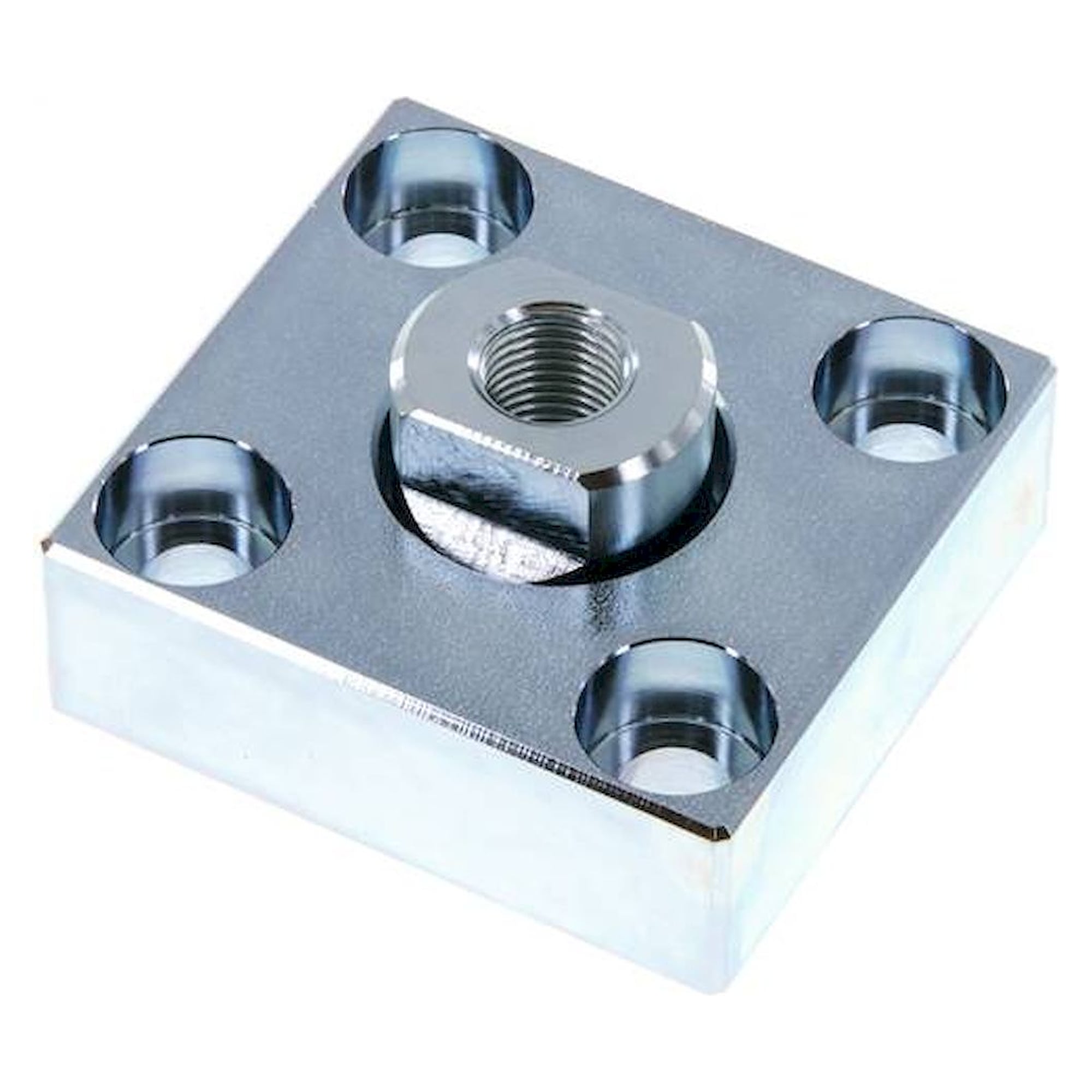

Flexo coupling m. Mounting plate, M 12x1,25, Zinc plated steel

Images are for illustration purposes only and may differ from the actual product. Some images have been generated or edited, in whole or in part, using artificial intelligence systems. The technical specifications in the product description are authoritative.

This flexible coupling compensates an offset between piston rod and load and carries a mounting plate. What counts here is the piston rod thread M 12x1.25. Material zinc-plated steel, size 9.0 x 30 x 60 mm.

Flexible coupling with mounting plate, for piston rod thread M 12x1.25, zinc-plated steel

Name: Flexible coupling with mounting plate, for piston rod thread M 12x1.25, zinc-plated steel
Brand: Fluidics equipment
SKU: FL-049398
Price: 94.07 EUR
Availability: InStock

FLUIDICS EQUIPMENT Original product

Net price (excl. VAT)

€94.07

Item FL-049398

Manufacturer no. FKB 40

Personal expert advice

Brand new Specialist dealer since 2009 Original product Worldwide shipping

Product data

Manufacturer no.FKB 40

EAN4050571299248

Customs tariff number84129080

ConditionNew

Artikel

FL-049398

Frequently Bought Together

This Item: Flexible coupling with mounting plate, for piston rod thread M 12x1.25, zinc-plated steel
€94.07

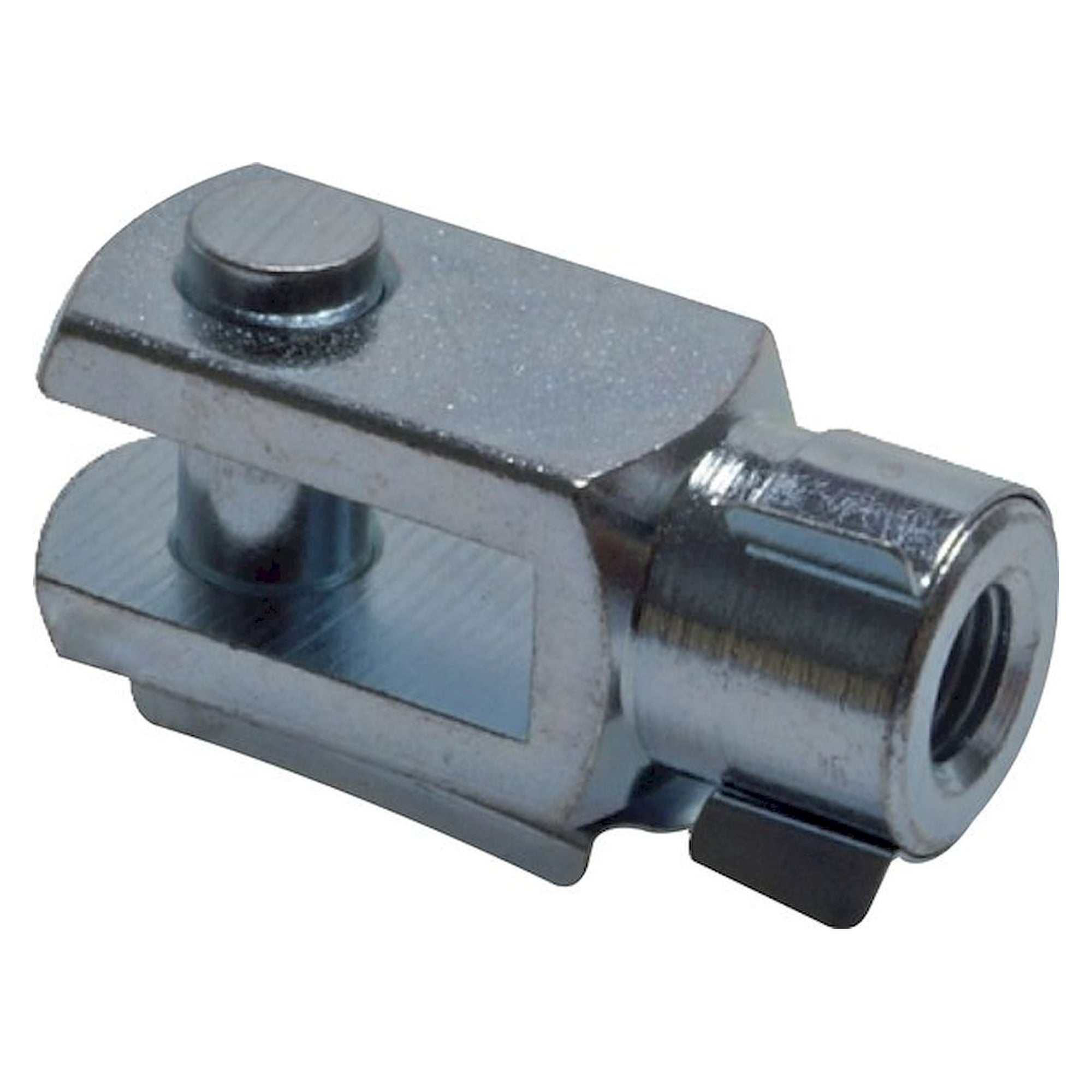

Yoke with bolts M 16x1,5, 1.4305
€107.30
Clevis head with pin, for piston rod thread M 12x1.25, zinc-plated steel
€9.58

Total price

Details

The flexible coupling compensates an offset between piston rod and load and carries a mounting plate. It is supplied with 9.0 mm for dimension D2, 30 mm for dimension H1 and 60 mm for dimension M1. The article is made of zinc-plated steel.

Benefits

Fits the piston rod thread M 12x1.25.
Material zinc-plated steel for piston rod thread M 12x1.25.
Dimension D2 comes to 9.0 mm.
Dimension M1 comes to 60 mm.
Dimension N1 comes to 42 mm.

Technical data

Material	zinc-plated steel
For piston rod thread A	M 12x1.25
Dimension D1 [mm]	25
Dimension D2 [mm]	9.0
Dimension H1 [mm]	30
Dimension H2 [mm]	20
Dimension M1 [mm]	60
Dimension M2 [mm]	56
Dimension N1 [mm]	42
Dimension N2 [mm]	38
Dimension SW [mm]	19
Dimension T [mm]	9

Applications

In feed and clamping equipment the flexible coupling sits on thread M 12x1.25.
