In service the pivot pin connects the spherical eye to the clevis swivel mounting. The decisive figure is a piston diameter of 80 mm. Dimensions 63.0 x 75 x 24 mm, made of stainless steel 1.4401.

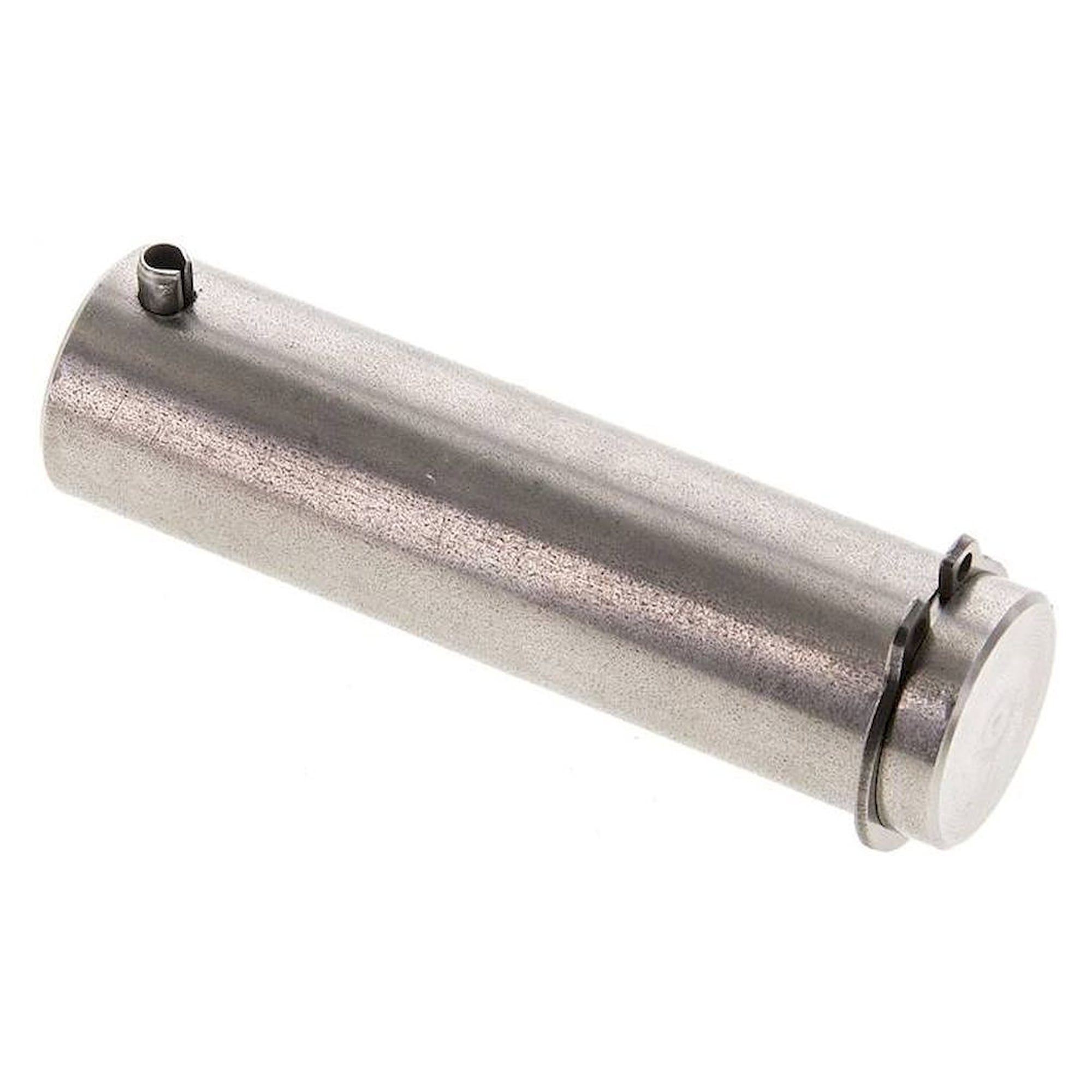

Pivot pin for spherical eye ISO 15552, for piston diameter 80 mm, stainless steel 1.4401
