Bearing block for ISO 6432 round cylinders, piston Ø 8 and 10 mm, stainless steel 1.4301 - Fluidics equipment

Fluidics equipment ✓ Original product Brand new

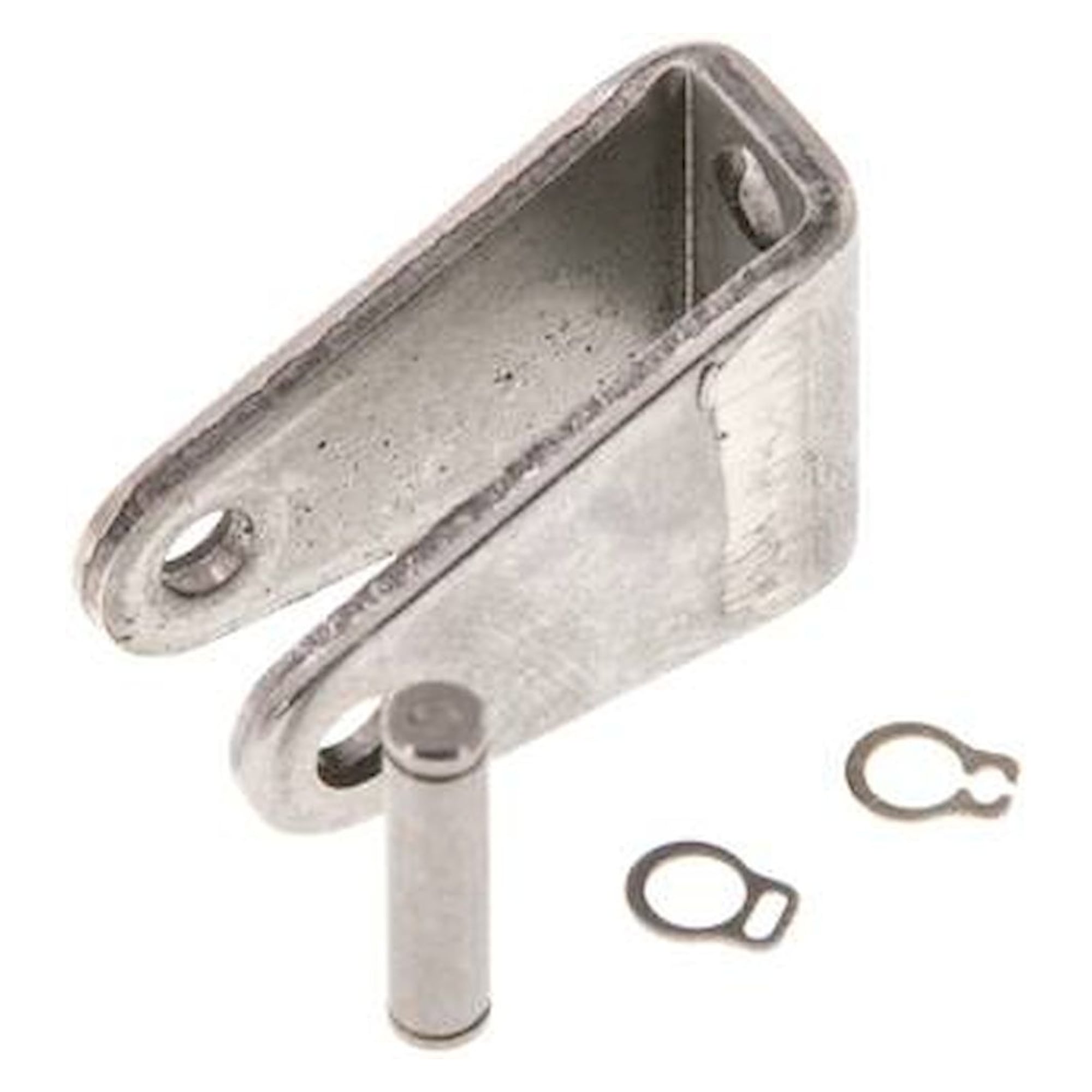

Bearing block in stainless steel 1.4301 for ISO 6432 round cylinders with 8 or 10 mm piston diameter. With 20 mm height H and 24 mm length L it supports the cylinder pivotably on the machine frame.

Net
€8.26
excl. VAT
Item FL-021691
Manufacturer no. BG 8/10 ES
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The bearing block for ISO 6432 round cylinders with piston Ø 8 and 10 mm is made of stainless steel 1.4301 and forms the fixed pivot point for a swivelling cylinder mounting.

Benefits at a glance

  • Fits ISO 6432 round cylinders with piston Ø 8 and 10 mm
  • Stainless steel 1.4301, corrosion resistant
  • Height H 20 mm, length L 24 mm, width B 4.5 mm
  • Hole dimension N 8.1 mm

Applications

The bearing block is used wherever a Ø 8 or 10 mm round cylinder performs a swivelling movement, for example on flaps, levers and diverters. Stainless steel 1.4301 also suits damp areas.

Technical data

FeatureValue
Product typeBearing block
For cylindersISO 6432 round cylinders
Piston Ø8 and 10 mm
MaterialStainless steel 1.4301
Dimension B4.5 mm
Dimension B14 mm
Dimension C12.5 mm
Dimension H20 mm
Dimension L24 mm
Dimension N8.1 mm
Dimension O17.0 mm
Dimension R5 mm
Dimension S2.5 mm
Dimension M11.25 mm
Weight25 g
ManufacturerFluidics equipment
Hersteller-NrBG 8/10 ES
EAN4050571224110
Zolltarifnummer73269098
GPSR HerstellerdatenA1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
NormISO 6432
