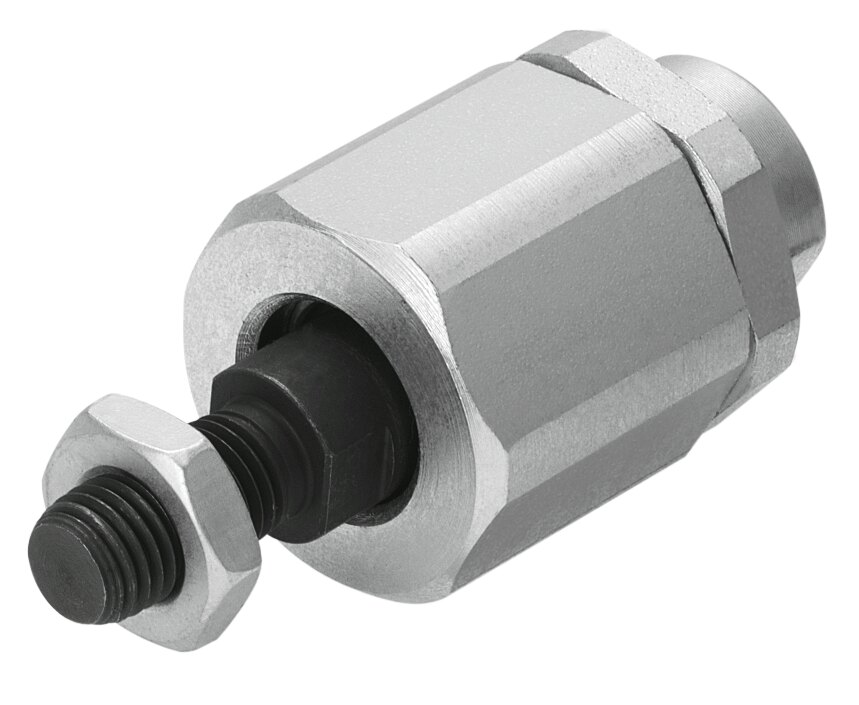

Self-aligning rod coupler thread 1-12 UNF-2B steel zinc-plated CRC 2 FK-1-12 - Festo 532709
With the self-aligning rod coupler FK-1-12 (thread 1-12 UNF-2B) the cylinder keeps running smoothly even when piston rod and load are not perfectly aligned. Housing made of steel, zinc-plated, CRC 2 (moderate corrosion stress). Ambient temperature -40 to 150 °C.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Misalignment between cylinder and load stresses seals and guides. The self-aligning rod coupler FK-1-12 for thread 1-12 UNF-2B absorbs this offset.
Benefits at a glance
- Thread size 1-12 UNF-2B
- Housing made of steel, zinc-plated
- Ball stud made of case-hardened steel
- Ambient temperature -40 to 150 °C
- Corrosion resistance class 2 - moderate corrosion stress
- Materials: RoHS compliant
Application
The FK-1-12 fits wherever a cylinder moves a separately guided load, such as slides, gates or lifting plates.
Technical data
| Order type | FK-1-12 |
|---|---|
| Festo part number | 532709 |
| Size | 1-12 UNF-2B |
| Corrosion resistance class CRC | 2 - moderate corrosion stress |
| PWIS conformity (LABS) | VDMA24364-B2-L |
| Ambient temperature | -40 to 150 °C |
| Product weight | 2142 g |
| Note on materials | RoHS compliant |
| Material bushing | steel, zinc-plated |
| Material housing | steel, zinc-plated |
| Material ball stud | case-hardened steel |
| Material spherical washer | case-hardened steel |
| Material nut | steel, zinc-plated |
| Customs tariff number | 84879059 |
| Weight | 2 kg |
| Manufacturer | Festo |
| Hersteller-Nr | FK-1-12 |
| EAN | 4052568340131 |
| Zolltarifnummer | 84879059 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Galvanised steel |
| Series | FK |
| Temperaturbereich | -40-150 °C |
| Temperature (max.) | 150 |
