Compressed air filter SYNTESI, 20 µm, size 1, without port bushings, RMSA semi-automatic drain, type 5610F200 - Riegler 144546
The compressed air filter SYNTESI works as a centrifugal separator: condensate is spun out and the filter element retains solid particles from 20 µm. Without port bushings, front and rear thread G 1/8, size 1, flow rate 1750 Nl/min at P2 = 6.3 bar and pressure drop Δp = 1 bar.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The compressed air filter SYNTESI works as a centrifugal separator: condensate is spun out and the filter element retains solid particles from 20 µm. Without port bushings, front and rear thread G 1/8, size 1, flow rate 1750 Nl/min at P2 = 6.3 bar and pressure drop Δp = 1 bar.
Advantages
- Filter rating 20 µm
- Outlet purity class 4.7.4 to ISO 8573-1
- Flow rate 1750 Nl/min (P2 = 6.3 bar and pressure drop Δp = 1 bar)
- Inlet pressure up to 15 bar
- Technopolymer bowl
- RMSA drain: closes at approx. 1 bar and drains when depressurised
Applications
Suitable for compressed air and neutral gases. The separated condensate collects in the bowl and is drained semi-automatically via the RMSA drain.
Technical data
| Manufacturer | Riegler |
|---|---|
| Item number | 144546 |
| Type (Riegler) | 5610F200 |
| Size | 1 |
| Inlet pressure | max. 15 bar |
| Temperature range | -10 to 50 °C |
| Body | Technopolymer |
| Inlet connection | Without socket |
| Outlet connection | Without socket |
| Front and rear port thread | G 1/8 |
| Filter rating | 20 µm |
| Flow rate at P2 = 6.3 bar and pressure drop Δp = 0.5 bar | 1300 Nl/min |
| Flow rate at P2 = 6.3 bar and pressure drop Δp = 1 bar | 1750 Nl/min |
| Bowl | Technopolymer |

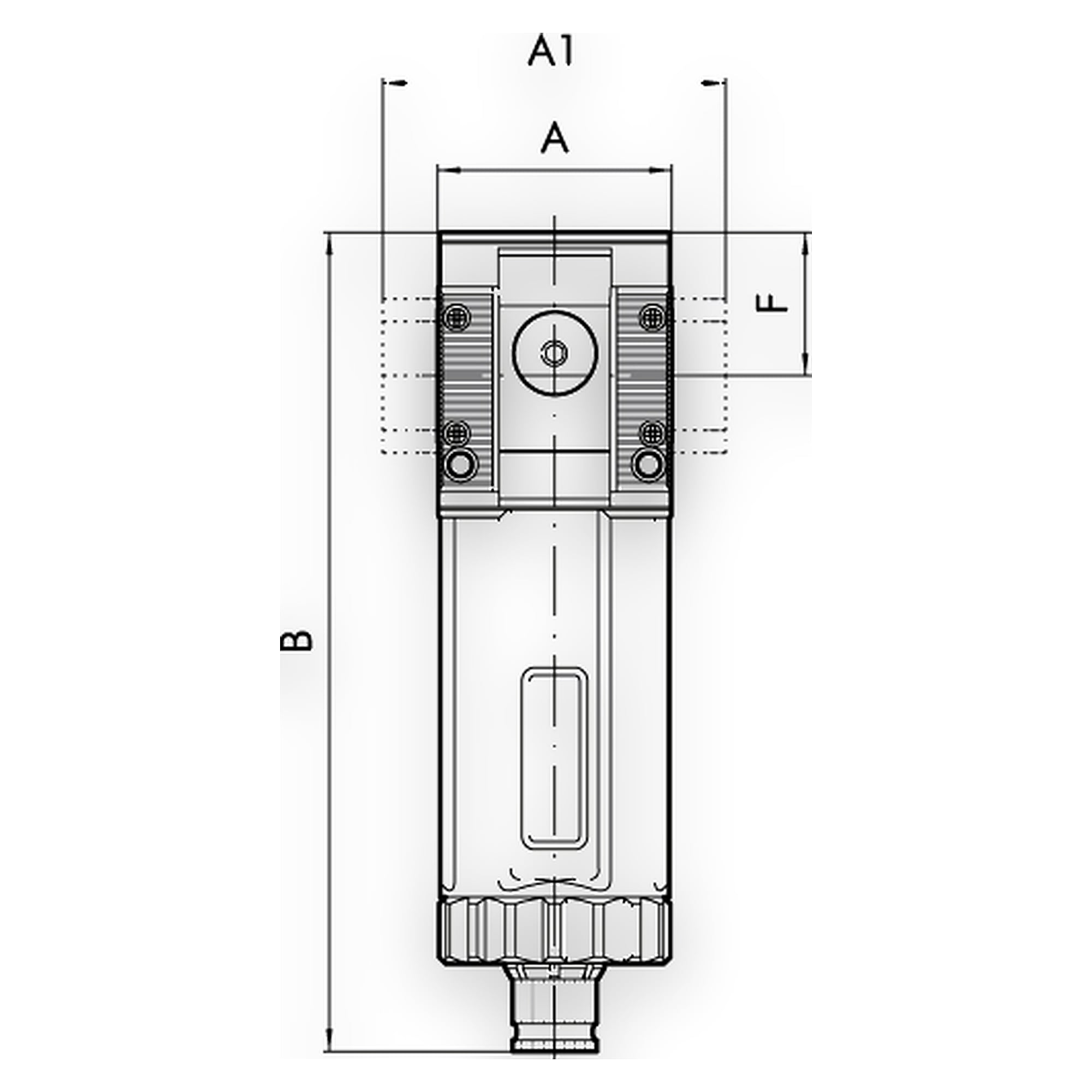

| Dimension A | 42 mm |
| Dimension B | 148 mm |
| Dimension F | 25.8 mm |
| Series | SYNTESI |
| Medium | Compressed air, neutral gases |
| Seal material | NBR |
| Condensate drain | RMSA semi-automatic |
| Outlet air purity class to ISO 8573-1 | 4.7.4 |
| Weight | 0.14 kg |
| Hersteller-Nr | 5610F200 |
| EAN | 4047322759106 |
| Zolltarifnummer | 84213925 |
| GPSR Herstellerdaten | Riegler & Co. KG, Schützenstraße 27, DE-72574 Bad Urach, www.riegler.de |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Country of Manufacture | Italy |
| Material | Technopolymer |
| Behälterausführung | Kunststoff |
| Thread | G 1/8 |
| Size BG | 1 |
| Housing material | Technopolymer |
| Inlet pressure max. [bar] | 15 |
| Flow rate [l/min] | 1750 |
| Filter grade [µm] | 20 |
| Operating conditions | ISO 8573-1 |
| Temperaturbereich | -10-50 °C |
| Temperature (max.) | 50 |
