Service unit filter + depurator SYNTESI, size 2, G 1/2, 5 µm + 0.01 µm, RMSA semi-automatic drain, type 5624F10D104 - Riegler 145371
Two-stage filtration in the SYNTESI service unit: the 5 µm prefilter protects the 0.01 µm depurator, outlet air reaches purity class 1.7.2 to ISO 8573-1. Flow rate 1050 Nl/min, usable in the temperature range -10 to 50 °C.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description

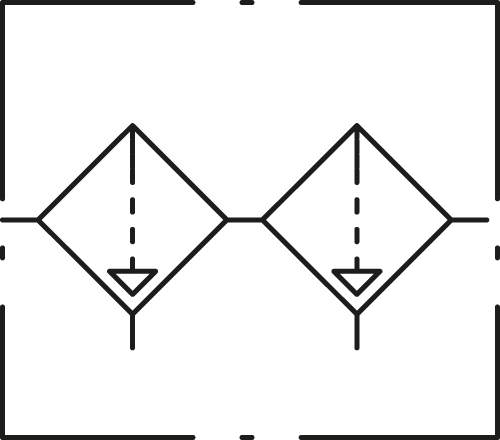

The SYNTESI service unit in size 2 consists of filter and depurator. The filter separates particles down to 5 µm and condensate, the downstream depurator retains particles down to 0.01 µm and oil aerosols. The recommended flow rate is 1050 Nl/min at 6.3 bar, the inlet pressure may be up to 13 bar.
Benefits
- Fine filtration to 5 µm protects the pneumatics behind the unit
- Purity class 1.7.2 to ISO 8573-1 at the outlet
- Flow rate 1050 Nl/min at 6.3 bar (recommended value), so the size can be chosen to match the actual air demand
- Inlet pressure up to 13 bar
- Condensate drain RMSA semi-automatic
- Temperature range -10 to 50 °C
Applications
Useful ahead of process air, painting and blow-off applications, measuring equipment and proportional valves that require oil-free air.
Technical data
| Type | 5624F10D104 |
|---|---|
| Size | 2 |
| Inlet pressure | max. 13 bar |
| Temperature range | -10 to 50 °C |
| Housing | technopolymer |
| Inlet port | G 1/2 |
| Outlet port | G 1/2 |
| Front and rear port thread | G 1/4 |
| Seal material | NBR |
| Filter rating depurator | 0.01 µm |
| Filter rating filter | 5 µm |
| Condensate drain filter | RMSA semi-automatic |
| Condensate drain depurator | RMSA semi-automatic |
| Bowl | technopolymer |

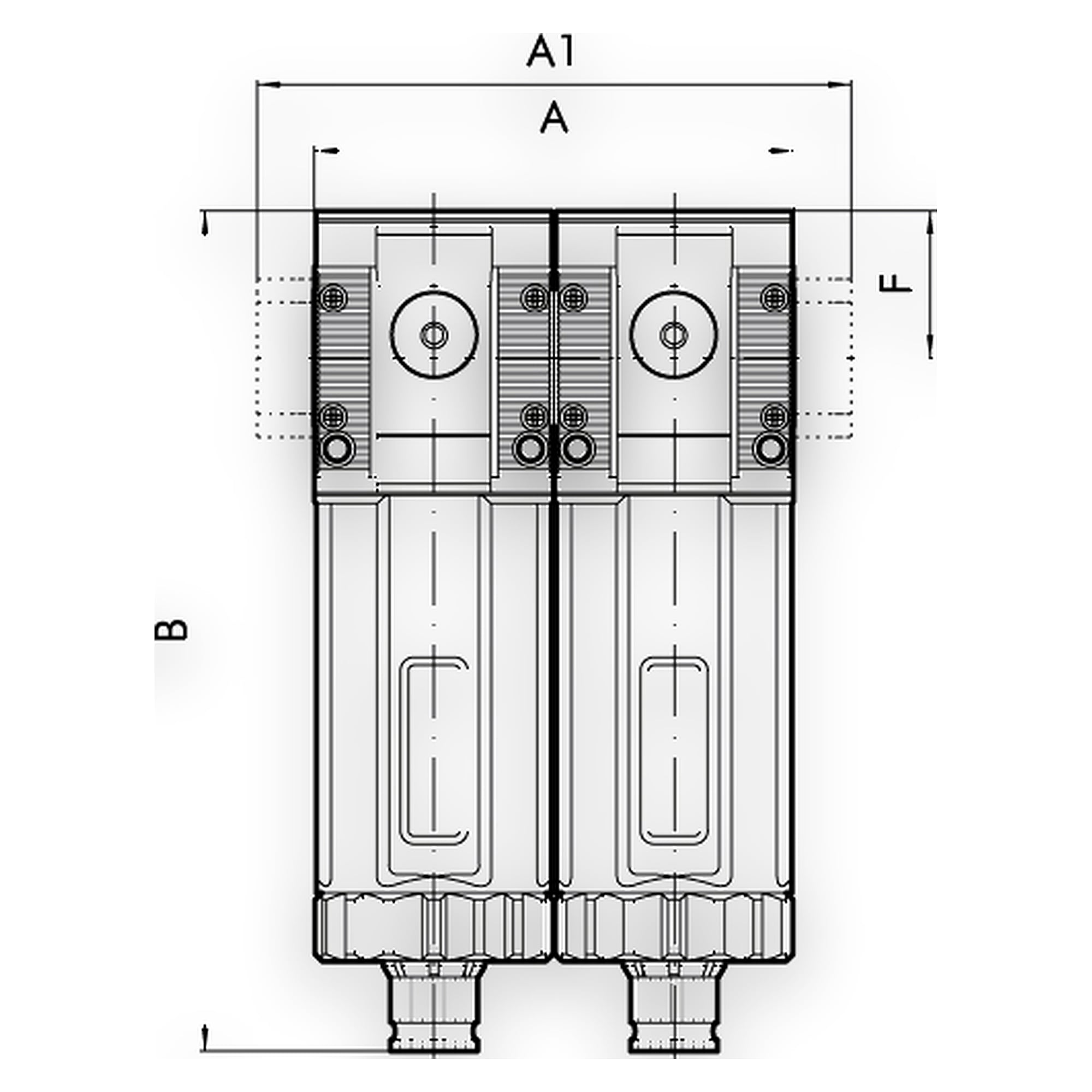

| Dimension A | 121.0 mm |
| Dimension B | 178.0 mm |
| Dimension F | 38.2 mm |
| Series | SYNTESI |
| Medium | compressed air, neutral gases |
| Recommended flow rate at 6.3 bar | 1050 Nl/min |
| Outlet air purity class (ISO 8573-1) | 1.7.2 |
| Manufacturer | Riegler |
| Hersteller-Nr | 5624F10D104 |
| EAN | 4047322768665 |
| Zolltarifnummer | 84213925 |
| GPSR Herstellerdaten | Riegler & Co. KG, Schützenstraße 27, DE-72574 Bad Urach, www.riegler.de |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Country of Manufacture | Italy |
| Material | Technopolymer |
| Thread | G 1/2 |
| Size BG | 2 |
| Housing material | Technopolymer |
| Inlet pressure max. [bar] | 13 |
| Filter grade [µm] | 5 |
| Condensate drain | RMSA semi-automatic |
| Operating conditions | ISO 8573-1 |
| Pneumatic connection | G1/2 |
| Temperaturbereich | -10-50 °C |
| Temperature (max.) | 50 |
