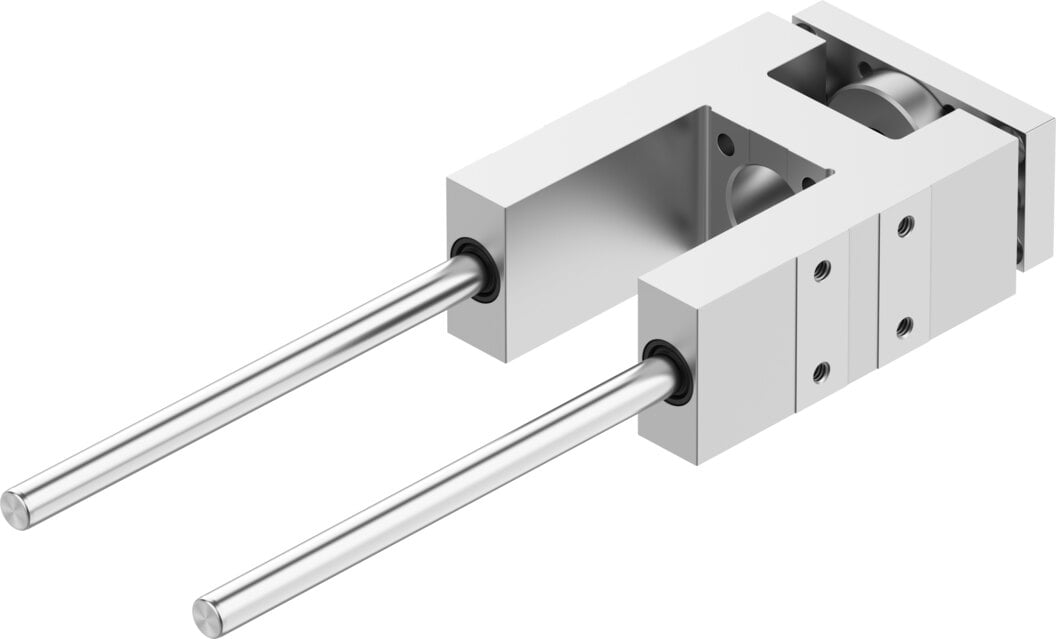

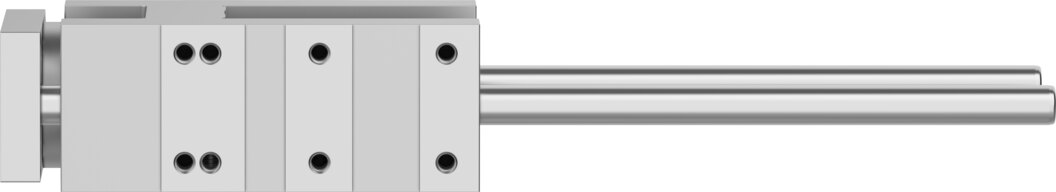

Guide unit with plain-bearing guide size 32 stroke 160 mm FENG-32-160-GF - Festo 8204063

The Festo guide unit FENG-32-160-GF in size 32 with plain-bearing guide keeps the piston rod torsion-free and relieves it of lateral forces, stroke 160 mm.

Why choose the FENG-32-160-GF

• Plain-bearing guide, size 32, stroke 160 mm
• Guide element made of high-alloy steel, housing made of wrought aluminium alloy, anodised
• Displacement force 30 N
• Usable at ambient temperatures of -20 to 80 °C
• Materials: RoHS compliant
• PWIS conformity VDMA24364-B2-L

Typical applications

Typical uses are lifting and pushing tasks in assembly and handling, where the FENG-32-160-GF guides tools or grippers without rotation.
