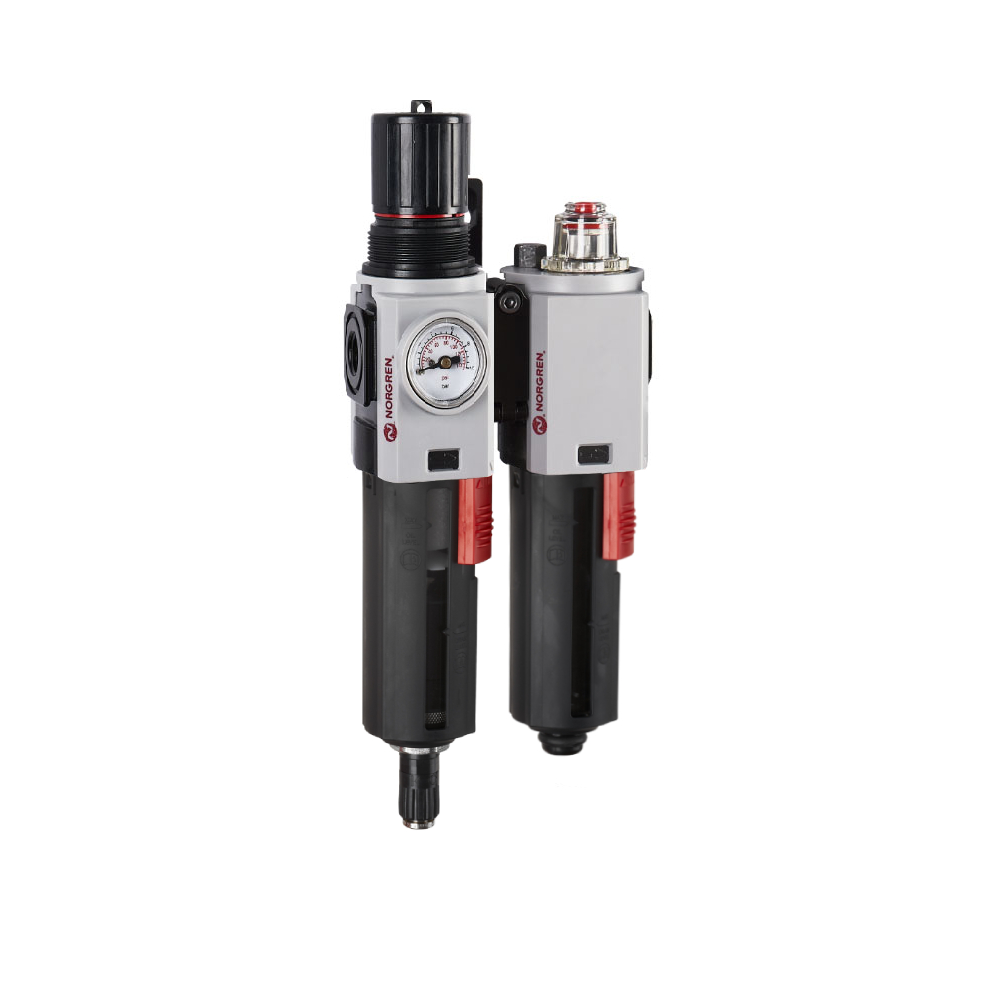

Excelon Plus filter/regulator and lubricator unit, 3/8 PTF, automatic drain, 0.3-10 bar, 40 µm - Norgren BL82-301A

As an air preparation unit Norgren BL82-301A prepares compressed air up to 10 bar inlet pressure and filters at 40 µm.

Benefits

• Reduced weight and size compared with the previous range
• Double safety lock on the bowl
• Flush mounted integrated gauge
• Filtration grade 40 µm with an element made of polypropylene (pp)
• Inlet pressure up to 10 bar, outlet pressure adjustable from 0.3 to 10 bar
• Flow 21 dm³/s in the temperature range -10 to 60 °C

Technical data

Applications

It is built in ahead of valve islands, cylinders and air tools that need air in the range 0.3 to 10 bar.

Standards and conformity

The version is RoHS compliant, an SVHC substance is present under REACH. The product does not fall under the WEEE directive. The temperature range is -10 to 60 °C in the 82 size. The lubricator bowl holds 0.056 l.
