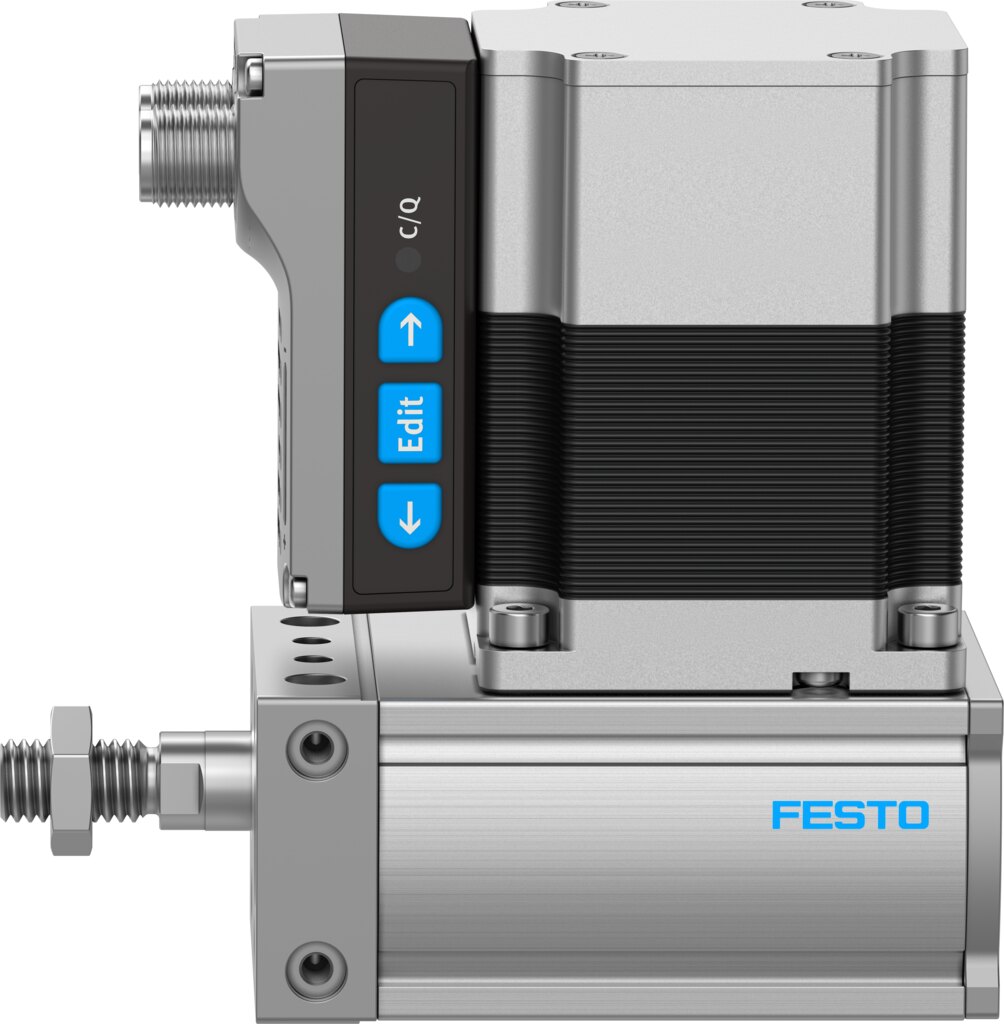

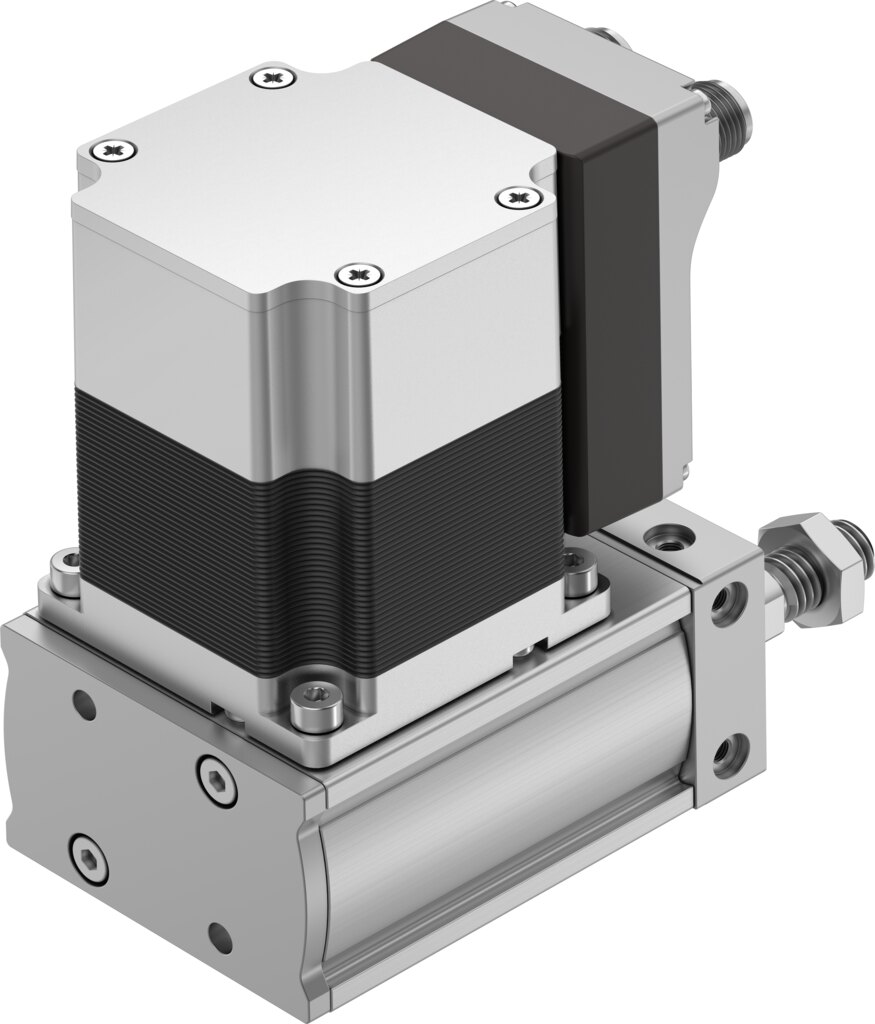

Electric cylinder unit with toothed belt, size 60, stroke 10 mm, IO-Link EPCE-TB-60-10-FL-MF-ST-M-H1-PLK-AA - Festo 8102166

Festo ✓ Original product Brand new

The EPCE size 60 moves loads of up to 10 kg over a 10 mm stroke with ±0.05 mm repetition accuracy. Stepper motor, single-turn encoder and controller are built in and it connects via 2 digital inputs or IO-Link.

Net
€686.32
excl. VAT
Item FES-8102166
Manufacturer no. EPCE-TB-60-10-FL-MF-ST-M-H1-PLK-AA
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

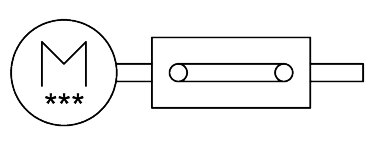

The EPCE-TB-60-10-FL-MF-ST-M-H1-PLK-AA electric cylinder unit combines toothed belt, stepper motor, absolute single-turn encoder and controller in one device. With a 10 mm stroke, up to 150 N feed force and up to 0.6 m/s, it is designed for infeed, pressing and ejecting over a short stroke.

Benefits

  • Everything on board: motor, absolute encoder (16 bit) and controller, the EPCE-60 needs only 24 V DC and 5.3 A nominal current.
  • Simple control: the EPCE-60 uses 2 digital inputs and 2 outputs (PNP) or IO-Link Device V 1.1, parameters can also be set on the unit itself.
  • Repeatable: ±0.05 mm at up to 0.6 m/s and 9 m/s² acceleration.
  • Load capacity: feed force up to 150 N, reference payload 10 kg horizontal and 5 kg vertical.
  • Low maintenance: lifetime lubrication and 100 km reference service life, degree of protection IP40.

Applications

The piston rod with male thread M10x1,25 takes tools or grippers directly. The EPCE-60 operates at 0 to 50 °C ambient temperature. Above 30 °C the permissible power drops by 2 % per kelvin, which matters when the unit is installed close to control cabinets.

Technical data

Effective diameter of drive pinion10.18 mm
Size60
Stroke10 mm
Stroke reserve0 mm
Piston rod threadM10x1.25
Toothed-belt stretch0.375 %
Toothed-belt pitch2 mm
Mounting positionAny
Piston-rod endMale thread
Type of motorStepper motor
Position detectionMotor encoder
DesignWith toothed belt, With integrated drive
Protection against torque/guideWith plain-bearing guide
ReferencingPositive fixed stop block, Negative fixed stop block
Rotor position sensorAbsolute encoder, single turn
Rotor position sensor, encoder measuring principlemagnetic
Temperature monitoringSwitch-off for excessive temperature, Integrated precise CMOS temperature sensor with analogue output
Additional functionsBuilt-in end-position sensing
DisplayLED
Ready status indicationLED
Maximum acceleration9 m/s²
Maximum speed0.6 m/s
Speed "Speed press"0.02 m/s
Repetition accuracy±0.05 mm
Features of digital logic outputsConfigurable, Not galvanically isolated
Duty cycle100%
Insulation protection classB
Maximum current digital logic outputs100 mA
Maximum current consumption5300 mA
Maximum current consumption, logic0.3 A
Nominal voltage DC24 V
Nominal current5.3 A
Parameterisation interfaceIO-Link, User interface
Rotor position transducer resolution16 bit
Permissible voltage fluctuations+/- 15 %
Power supply, connection typePlug
power supply, connection systemM12x1, T-coded according to EN 61076-2-111
Power supply, number of pins/wires4
ApprovalRCM
KC markKC-EMV
CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS instructions
Vibration resistanceTransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 1 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Storage temperature-20 to 60 °C
Relative air humidity0 - 90%
Degree of protectionIP40
Protection classIII
Ambient temperature0 to 50 °C
Note on ambient temperaturePower must be reduced by 2% per K at ambient temperatures above 30°C
Impact energy in end positions0.016 J
Maximum moment Mx0 Nm
Maximum moment My1 Nm
Maximum moment Mz1 Nm
Maximum feed force Fx150 N
Reference value effective load, horizontal10 kg
Reference value effective load, vertical5 kg
Feed constant32 mm/rev
Reference service life100 km
Maintenance intervalLifetime lubrication
Moving mass207 g
Moving mass for 0 mm stroke197 g
Additional moving mass per 10 mm stroke9.75 g
Product weight1453 g
Basic weight for 0 mm stroke1407 g
Additional weight per 10 mm stroke46 g
Number of digital logic outputs 24 V DC2
Number of digital logic inputs2
Specification logic inputBased on IEC 61131-2, type 1
Working range of logic input24 V
Features of logic inputConfigurable, Not galvanically isolated
IO-Link, SIO-Mode supportYes
IO-Link, Protocol versionDevice V 1.1
IO-Link, communication modeCOM3 (230.4 kBaud)
IO-Link, Port classA
IO-Link, Number of ports1
IO-Link, Process data length OUT2 bytes
IO-Link, Process data content OUTMove intermediate 1 bit
IO-Link, Process data length IN2 bytes
IO-Link, Process data content INState Device 1 bit, State In 1 bit, State Intermediate 1 bit, State Move 1 bit, State Out 1 bit
IO-Link, Service data INSpeed 32 bit, Position 32 bit, Force 32 bit
IO-Link, Min, cycle time1 ms
IO-Link, Data storage required500 byte
Maximum cable length15 m outputs, 15 m inputs, 20 m with IO-Link operation
Switching logic for outputsPNP (positive switching)
Switching logic for inputsPNP (positive switching)
IO-Link, connection technologyPlug
Logic interface, connection typePlug
Logic interface, connection technologyM12x1, A-coded according to EN 61076-2-101
Logic interface, number of pins/wires8
Type of mountingWith through-hole, With female thread, With centring sleeve, With accessories
Note on materialsRoHS compliant
Material coverAnodised wrought aluminium alloy
Material housingAnodised wrought aluminium alloy
Material piston rodHigh-alloy stainless steel
Material toothed beltPolychloroprene with glass fibre
Weight1.6 kg
ManufacturerFesto
Hersteller-NrEPCE-TB-60-10-FL-MF-ST-M-H1-PLK-AA
EAN4052568551773
Zolltarifnummer84798997
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Stroke [mm]10
Housing materialAluminium, anodised
Operating voltage24 V DC
Protection ratingIP40
Temperaturbereich0-50 °C
Temperature (max.)50
