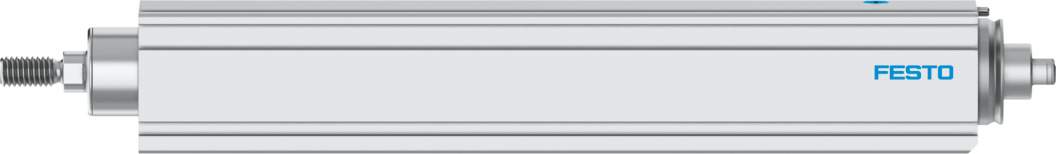

Electric cylinder ball screw size 25 stroke 75 mm EPCC-BS-25-75-6P-A - Festo 5428815
With a 75 mm stroke and ±0.02 mm repeatability, the electric cylinder EPCC-BS-25-75-6P-A handles exact positioning tasks. Ball screw with 6 mm pitch, feed force up to 75 N and travel speed up to 0.4 m/s. Suitable for stepper and servo motors, degree of protection IP40.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
EPCC-BS-25-75-6P-A is a Festo electric cylinder with 75 mm stroke, size 25, up to 0.4 m/s. The ball screw with 6 mm/rev pitch generates up to 75 N feed force at the piston rod (M6).
Advantages
- Positions repeatable within ±0.02 mm.
- Feed force up to 75 N in the direction of motion.
- Up to 0.4 m/s and 15 m/s² acceleration for short cycle times.
- Reference payload 12 kg horizontal and 6 kg vertical.
- Piston rod thread M6.
- Lifetime lubrication, no relubrication in operation.
Application
The electric cylinder EPCC-BS-25-75-6P-A replaces pneumatic cylinders where freely programmable positions and defined forces are needed over a 75 mm stroke. Mounting position any, ambient temperature 0 to 60 °C. Designed for mounting stepper and servo motors.
Technical data
| Type | EPCC-BS-25-75-6P-A |
|---|---|
| Size | 25 |
| Stroke | 75 mm |
| Stroke reserve | 0 mm |
| Piston rod thread | M6 |
| Reversing backlash theoretical | 100 µm |
| Spindle diameter | 6 mm |
| Spindle pitch | 6 mm/U |
| Torsional backlash at piston rod +/- | 1 deg |
| Mounting position | Any |
| Piston-rod end | Male thread |
| Type of motor | Stepper motor, servo motor |
| Position detection | Via proximity switch |
| Design | With ball screw |
| Spindle type | Ball screw |
| Protection against torque/guide | With plain-bearing guide |
| Maximum acceleration | 15 m/s² |
| Maximum rotational speed | 4000 1/min |
| Maximum speed | 0.4 m/s |
| Maximum homing speed | 0.01 m/s |
| Repetition accuracy | ±0.02 mm |
| Duty cycle | 100% |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom suitability, measured according to ISO 14644-14 | Class 9 according to ISO 14644-1 |
| Storage temperature | -20 to 60 °C |
| Relative air humidity | Non-condensing |
| Degree of protection | IP40 |
| Ambient temperature | 0 to 60 °C |
| Impact energy in end positions | 0.0012 J |
| Maximum drive torque | 0.1 Nm |
| Maximum moment Mx | 0 Nm |
| Maximum moment My | 0.6 Nm |
| Maximum moment Mz | 0.6 Nm |
| Maximum radial force at drive shaft | 30 N |
| Maximum feed force Fx | 75 N |
| Frictional torque independent of load | 0.055 Nm |
| Reference value effective load, horizontal | 12 kg |
| Reference value effective load, vertical | 6 kg |
| Mass moment of inertia JH per metre of stroke | 0.0095 kgcm² |
| Mass moment of inertia JL per kg of working load | 0.0091 kgcm² |
| Mass moment of inertia JO | 0.0014 kgcm² |
| Maintenance interval | Lifetime lubrication |
| Moving mass for 0 mm stroke | 53 g |
| Additional moving mass per 10 mm stroke | 2.6 g |
| Basic weight for 0 mm stroke | 132 g |
| Additional weight per 10 mm stroke | 13 g |
| Type of mounting | With accessories |
| Note on materials | RoHS compliant |
| Material housing | Smooth-anodised |
| Material piston rod | High-alloy stainless steel |
| Material ball screw nut | Steel |
| Material spindle | Bearing steel |
| Manufacturer | Festo |
| Hersteller-Nr | EPCC-BS-25-75-6P-A |
| EAN | 4052568452162 |
| Zolltarifnummer | 84799070 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Stroke [mm] | 75 |
| Protection rating | IP40 |
| Temperaturbereich | 0-60 °C |
| Temperature (max.) | 60 |
