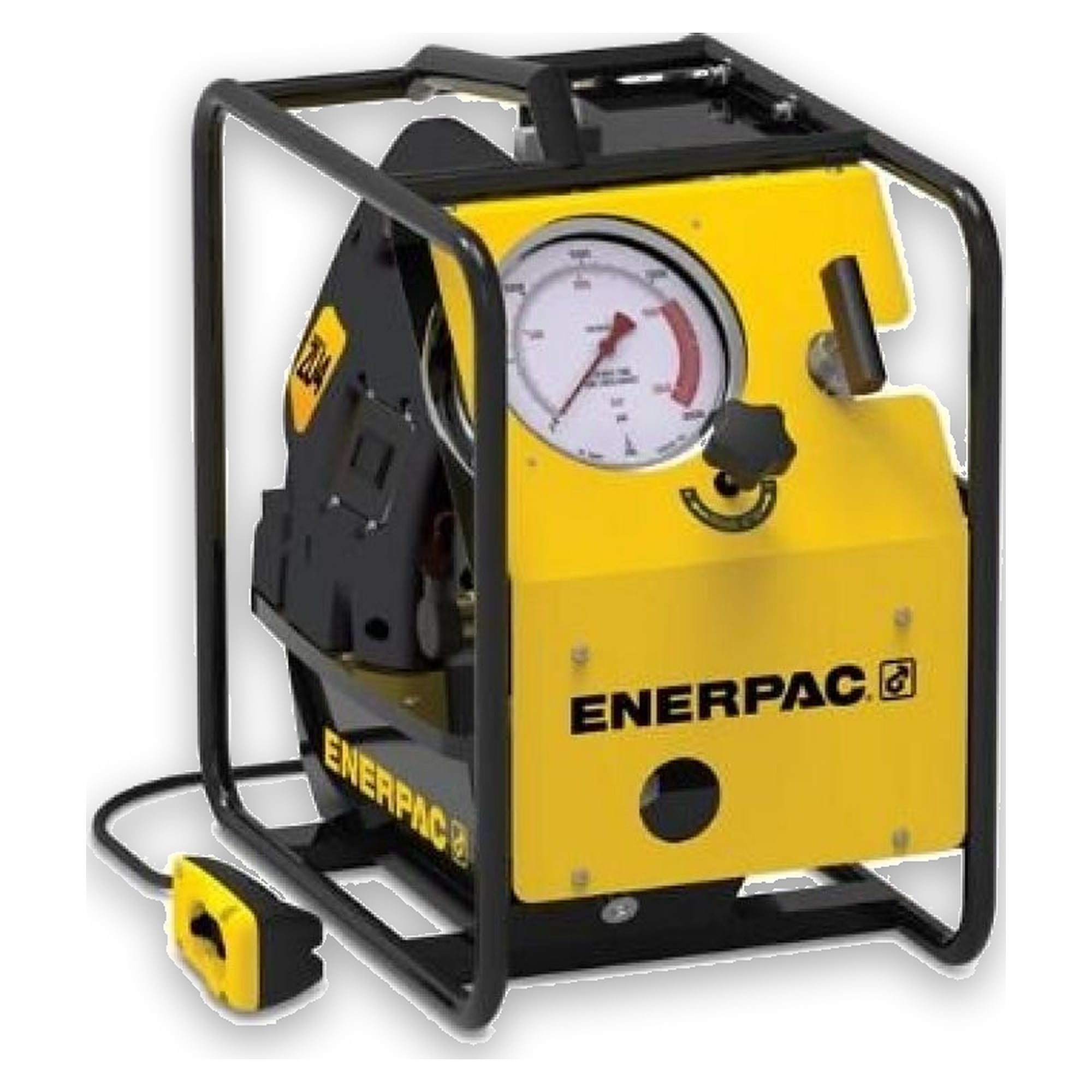

Electric Hydraulic Tensioning Pump, Solenoid Valve, 4 L, 115 V - Enerpac ZUTP1500SB

The ZUTP1500SB reaches up to 1500 bar for bolt tensioning tools and hydraulic nuts and runs through a pendant-operated solenoid valve. One operator can pressurize and depressurize the tool straight from the pendant.

Benefits

• Solenoid valve with 6 m pendant for single-person operation
• Easily accessible manual override valve if power is lost
• 1.25 kW universal motor for a strong performance-to-weight ratio
• Two-stage design: fast system fills, controlled flow at high pressure
• Replaceable 10 micron breather and inline high-pressure filter keep the oil clean
• Panel-mounted 153 mm gauge in a protective metal shroud for good visibility

Technical data

• Drive: electric, 115 V
• Motor power: 1.25 kW
• Usable oil: 4 L
• Max. pressure: 1500 bar
• Valve: solenoid, pendant-operated
• Gauge: 153 mm
• Series: ZUTP
• Weight: 29.5 kg

Applications

Suited to tensioning several joints in sequence. Operate only with the fittings and hoses approved for these ultra-high pressures.
