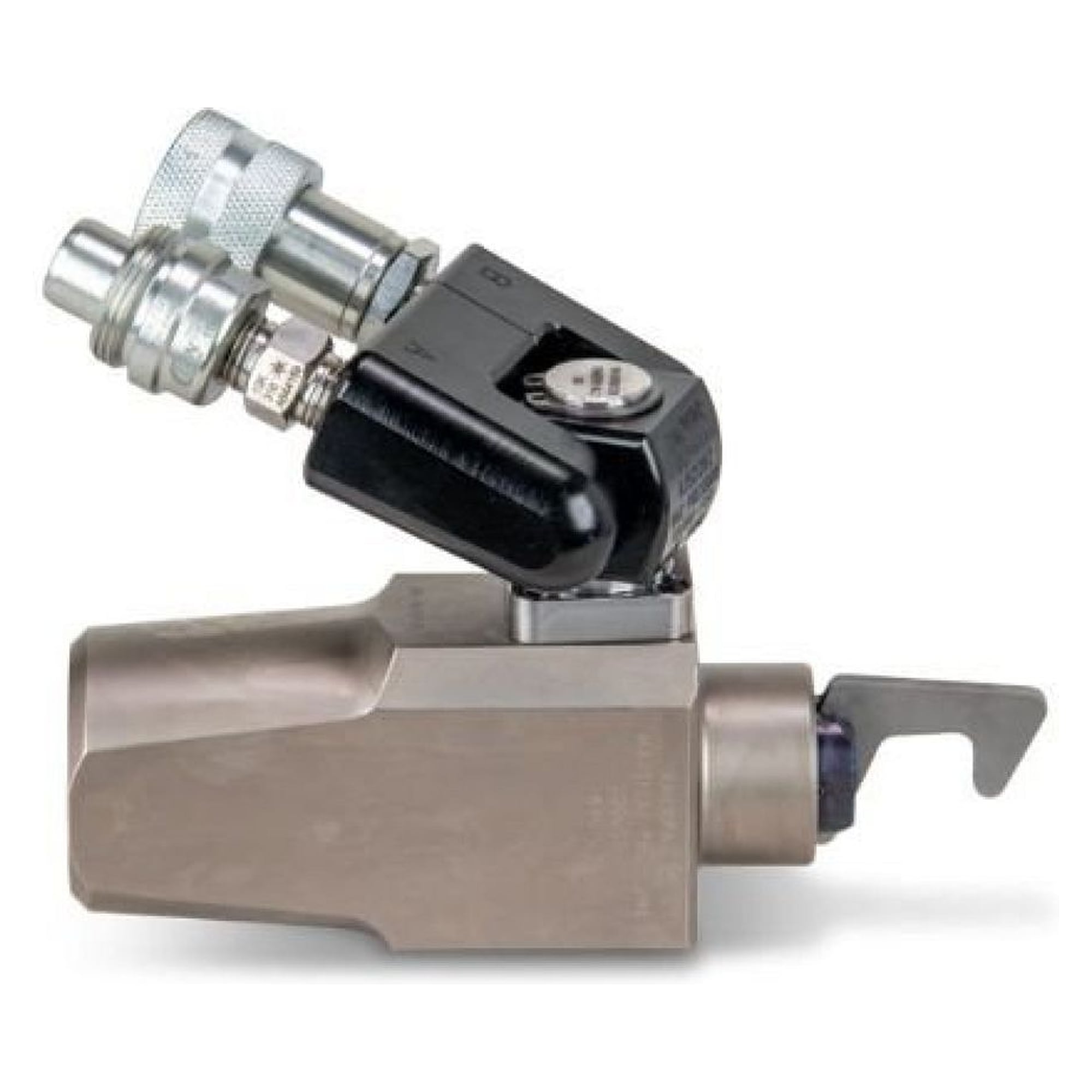

Torque Wrench Drive Unit, 5661 Nm, Swivel - Enerpac W4000PX

The W4000PX hydraulic torque wrench drive unit powers the interchangeable hexagon cassettes of the Enerpac W-series and delivers a maximum torque of 5661 Nm with +/- 3 % accuracy over the full stroke.

Benefits

• High strength-to-size ratio for access to hard-to-reach bolting without sacrificing load capacity
• 30 degree drive angle with fast return for quick operation
• Heavy-duty swivel coupling with an added safety feature for greater operator safety
• Quick release for tool-free cassette changes
• Compatible with the W-series hexagon cassettes and the UltraSlim W-SL series cassettes
• CE and ATEX certified, supplied with a calibration certificate

Technical data

• Maximum torque: 5661 Nm
• Torque accuracy: +/- 3 % over the full stroke
• Drive angle: 30 degrees
• Coupling: swivel coupling
• Weight: 2 kg
• Series: W - Drive Unit

Applications

For controlled tightening and loosening of bolted joints in plant, power generation and machinery construction, used together with the matching W-series hexagon cassette.
