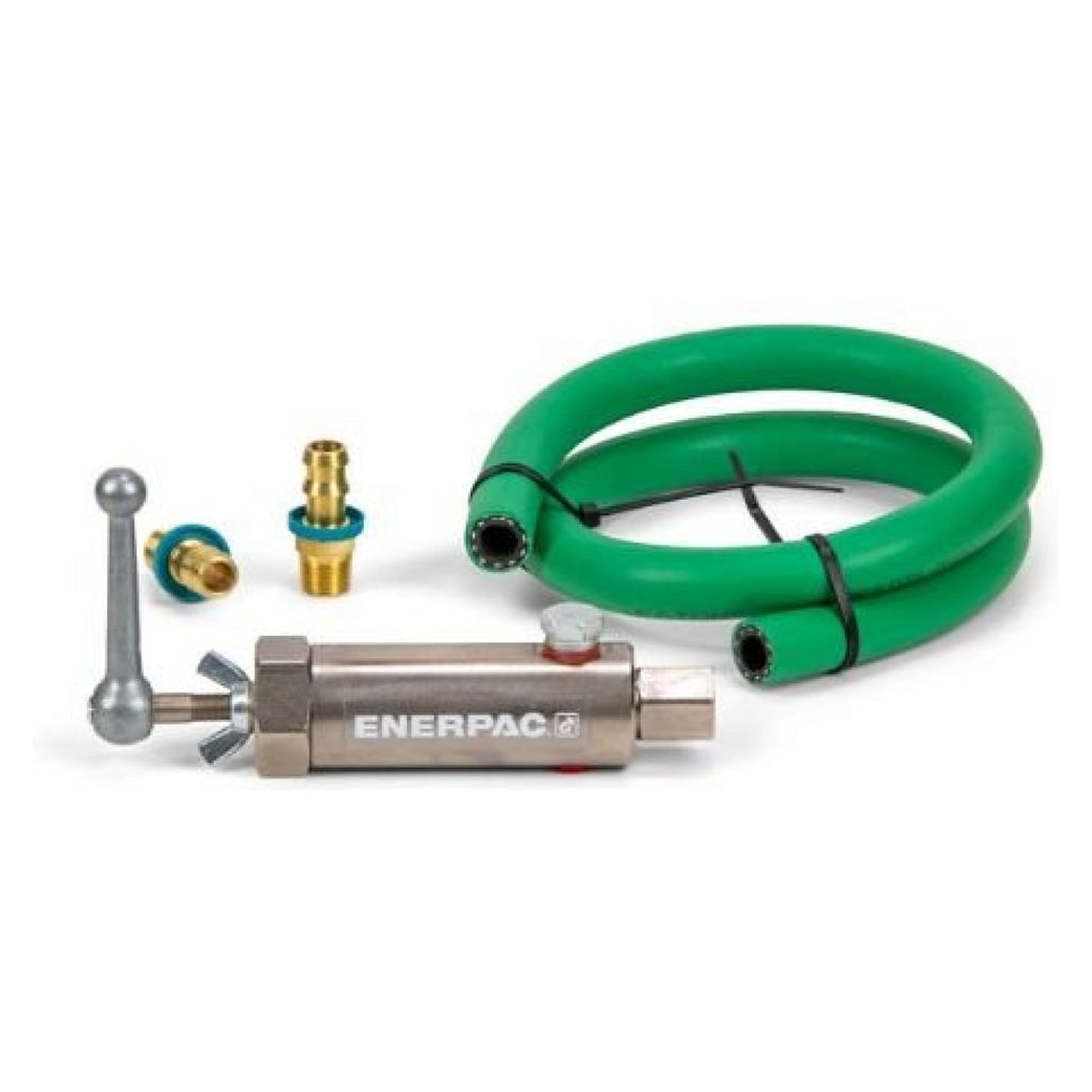

Enerpac V152NV, Pressure Relief Valve, Viton Seals, Nickel-Plated

The V152 and V152VN adjustable hydraulic pressure relief valves are used to limit hydraulic pressure and regulate oil flow.

Easy adjustment is done by simply turning the handle clockwise to increase the pressure. The valves offer repeatability accuracy of ±3% and an adjustment range of 800-10,000 psi (55-700 bar).

The maximum oil flow is 1830 in3 /min (30 l/min) and the valve features NPT or SAE porting to insure against leakage at rated pressure. A 3 ft return line hose kit is included.

The V152NV Nickel plated model option provides enhanced resistance to corrosion. Viton seals in V66NV and V152NV for high temperature applications.

• Corrosion resistant, nickel-plated valves
• Viton Seals provide heat and chemical resistance
• Limits pressure developed by the pump in hydraulic circuit, thus limiting the force imposed on other components. Valve opens whenever preset pressure is reached. To increase pressure setting, turn handle clockwise.
• Includes 0,9 m return line hose kit,
• ± 3% repeatability
• 55-700 bar adjustment range.
• Regulate oil flow or system pressure
• All valves feature NPT or SAE porting to insure against leakage at rated pressure
• Can easily be installed in any system
