Hydraulic Machine Lift, 178 kN, 157 mm Stroke - Enerpac SOH236

The SOH236 raises very heavy machinery where little access is available. Its 30 mm low lifting toe fits into small clearance gaps and develops 178 kN of lift with a 157 mm stroke through the integral hydraulic cylinder.

Benefits

• Low lifting toe from 30 mm height for use under hard-to-access loads
• Remote hydraulic pump keeps the operator at a safe distance from the load
• Precision guiding reduces friction and isolates the cylinder from side loads
• Two extendable support feet add stability

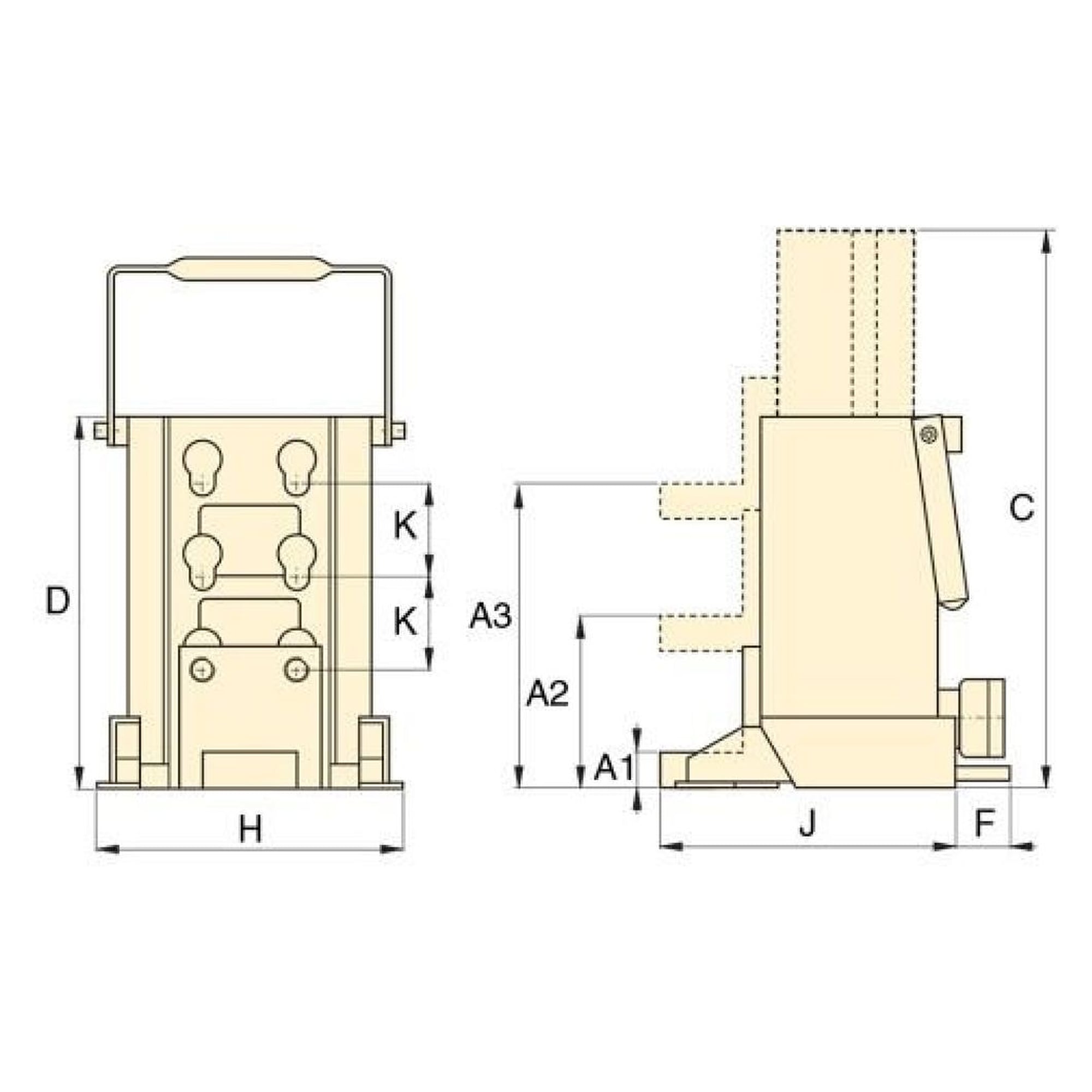

Technical data

• Lifting force: 178 kN
• Stroke: 157 mm
• Toe engagement height: 30 mm (min.)
• Retracted height: 320 mm
• Extended height: 472 mm
• Weight: 45 kg
• Series: SOH

Applications

For lifting and repositioning factory machinery. Combined with load skates it moves heavy equipment safely around a facility.

In the box

• RC-Series cylinder with CR-400 coupler
