Secure-Grip Flange Spreader Set, 150 kN, 100 mm Max. Spread - Enerpac SG15TESTD

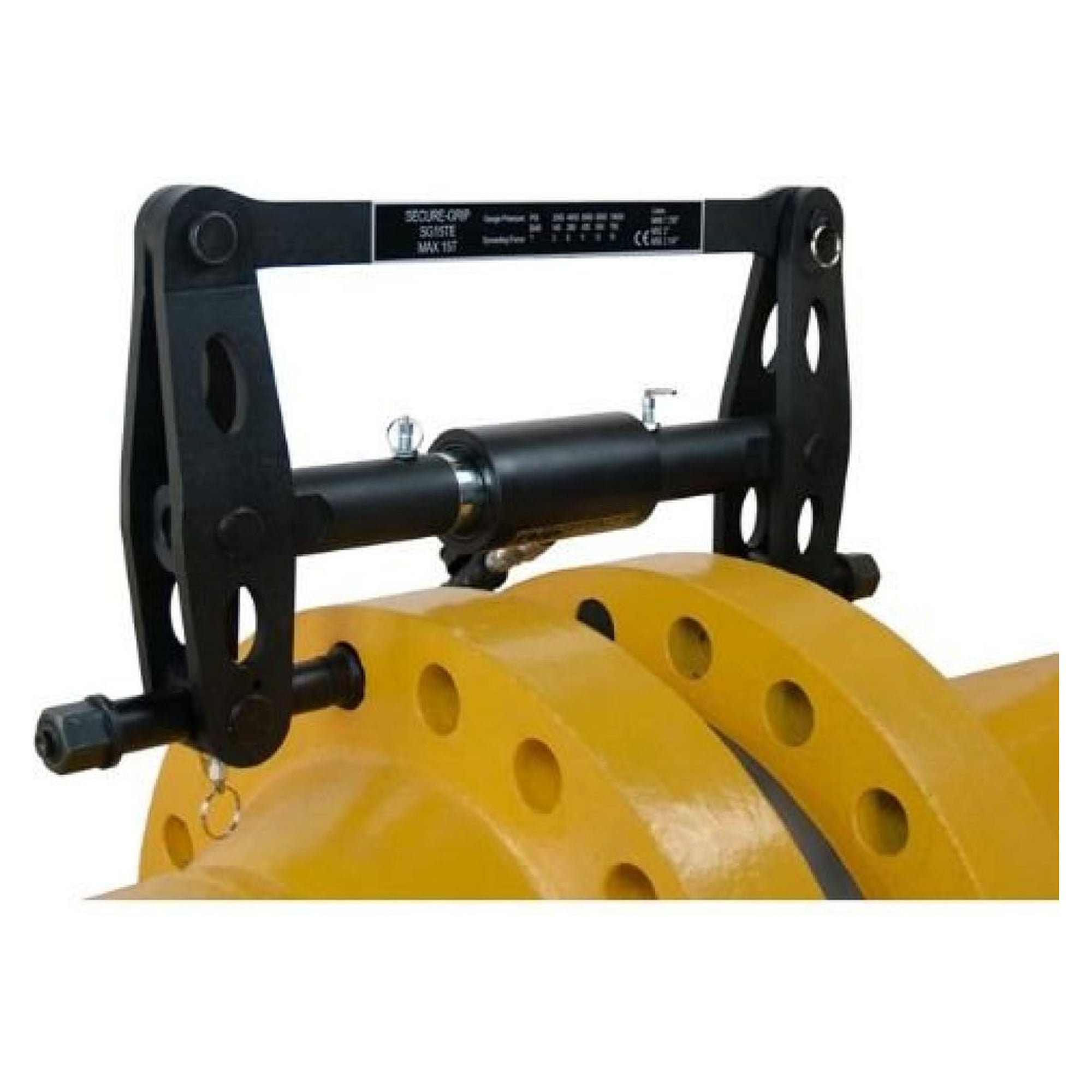

The SG15TE Secure-Grip flange spreader safely parts bolted flanges and delivers up to 150 kN (16,9 tons) of spreading force, up to 300 kN when used in the recommended pair. Hydraulic drive from the supplied 700 bar HP550S hand pump gives controlled force build-up.

Benefits

• Positive collet grip in bolt holes from 47.5 to 62 mm prevents the tool from slipping
• Adjustable drive cones spread flanges and free spacers, wafers or butterfly valves
• Up to 150 kN of spreading force on its own, 300 kN in a pair
• Hydraulic drive with sealed HP550S hand pump and 2 m hose
• Collet holders can be dismantled and inserted through the bolt holes from the opposite side

Technical data

• Spreading force: 150 kN (16.9 tons)
• Spreading force in a pair: 300 kN
• Bolt-hole range: 47.5 - 62 mm
• Max. spread: 100 mm
• Drive: hydraulic (HP550S hand pump, 700 bar)
• Operating pressure: 700 bar
• Weight: 45 kg
• Series: SG

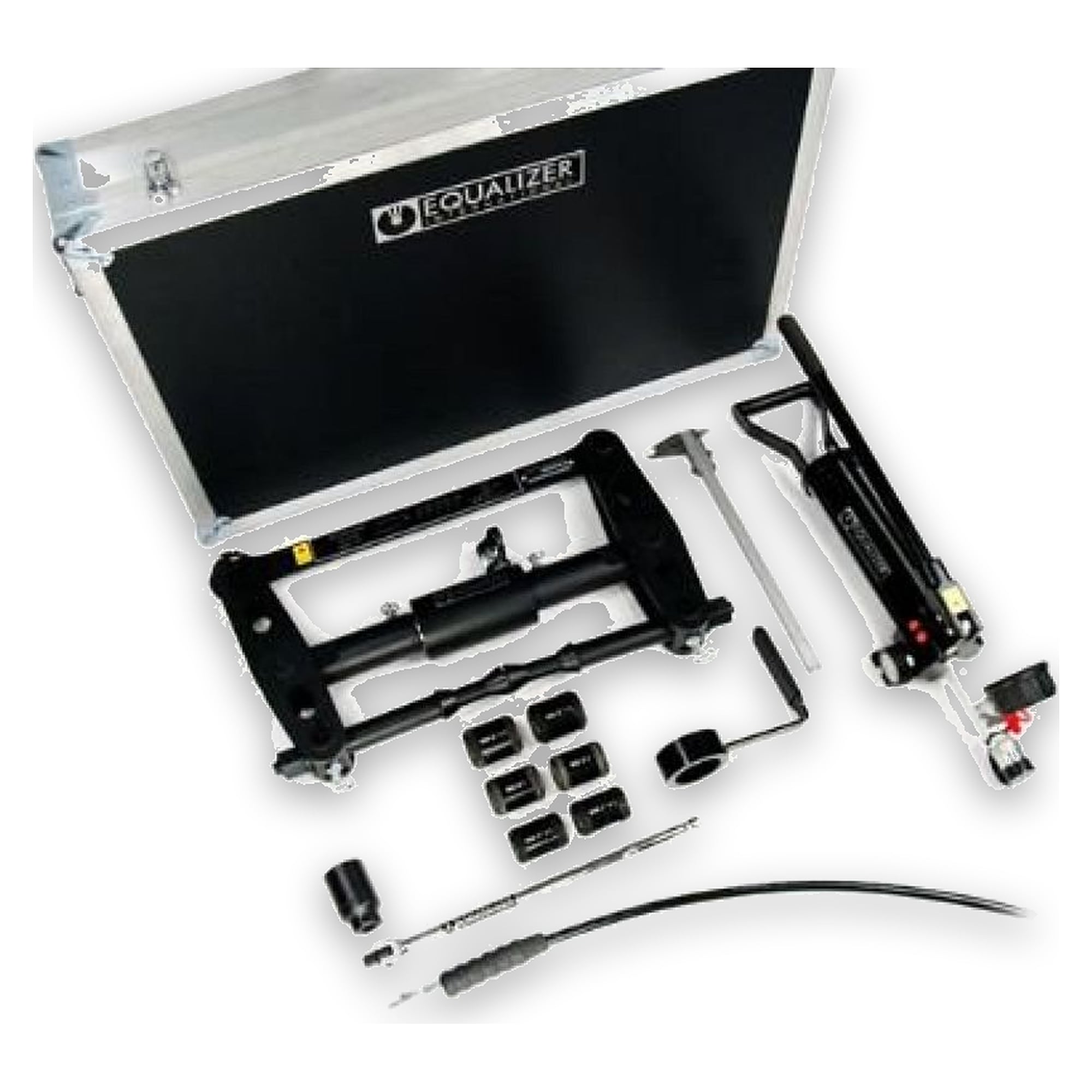

In the box

• SG15TE tool with hydraulic cylinder
• HP550S hand pump with gauge, 700 bar
• 700 bar hydraulic hose, 2 m
• 300 mm vernier calliper
• 1/2" square-drive handle with 36 mm socket
• safety block
• M48, M52 and M56 collets (2 each)
• instruction manual and carry case with foam inserts
