Slimline Stepped-Width Cassette, 32 mm AF - Enerpac RLP1104SL

The Slimline cassette with a 32 mm across-flats size reaches joints where a standard cassette is too wide to fit. The stepped, narrower build width opens up access, while high-grade materials and the refined geometry preserve full torque and long tool life.

Benefits

• Stepped build width for access to tight bolting positions
• Constant torque with +/- 3 % accuracy across the whole stroke
• Uses the same drive unit as the standard RLP cassettes

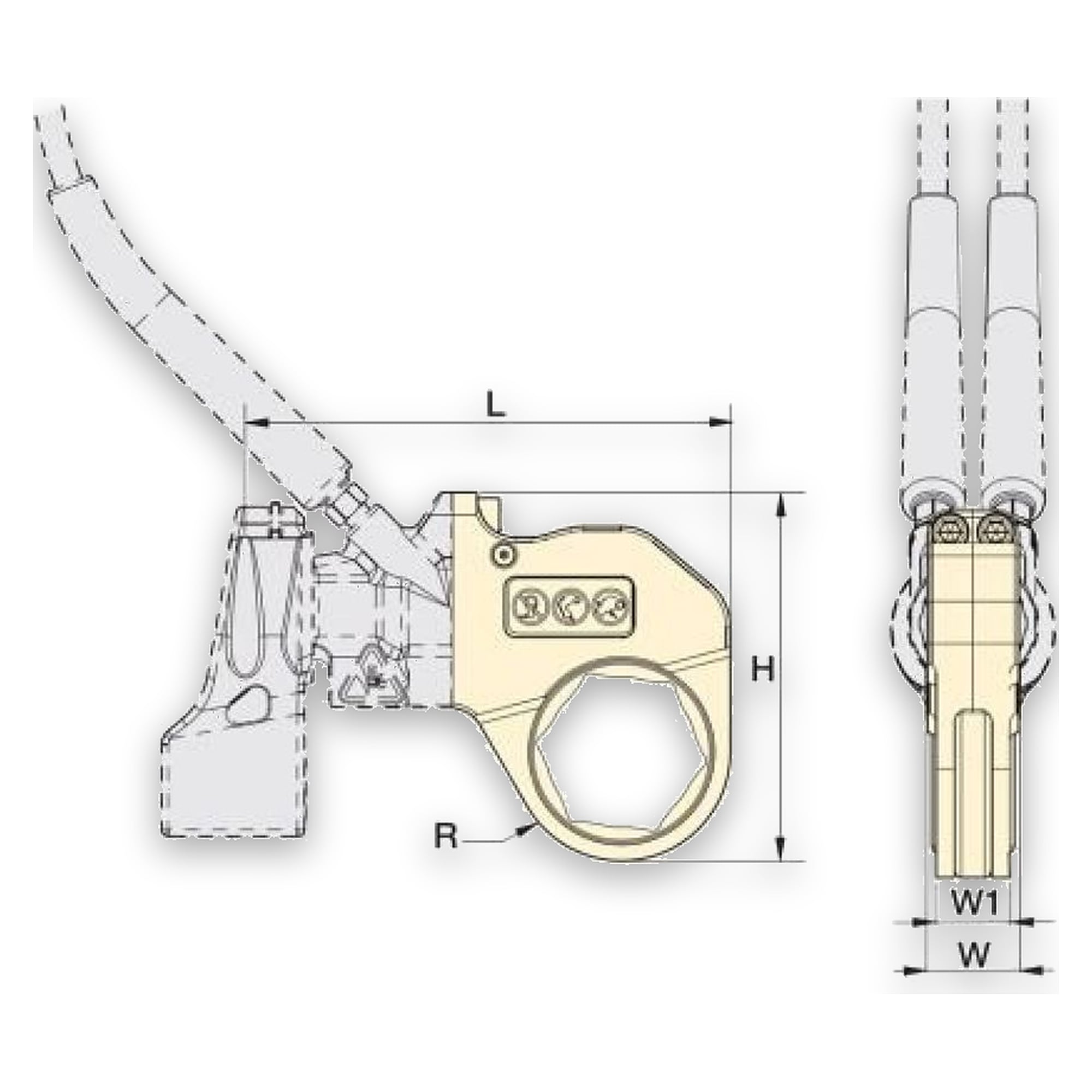

Technical data

• Across-flats size: 32 mm
• Design: Slimline stepped-width for access in tight spaces
• Drive unit: fits the matching RSL drive unit
• Torque accuracy: +/- 3 % across full stroke
• Length: 155.4 mm
• Height: 116.1 mm
• Width: 31.8 mm
• Weight: 1 kg
• Series: RLP

Applications

Used on flanges and connections with limited clearance, where the narrow cassette width provides access to the hex.
