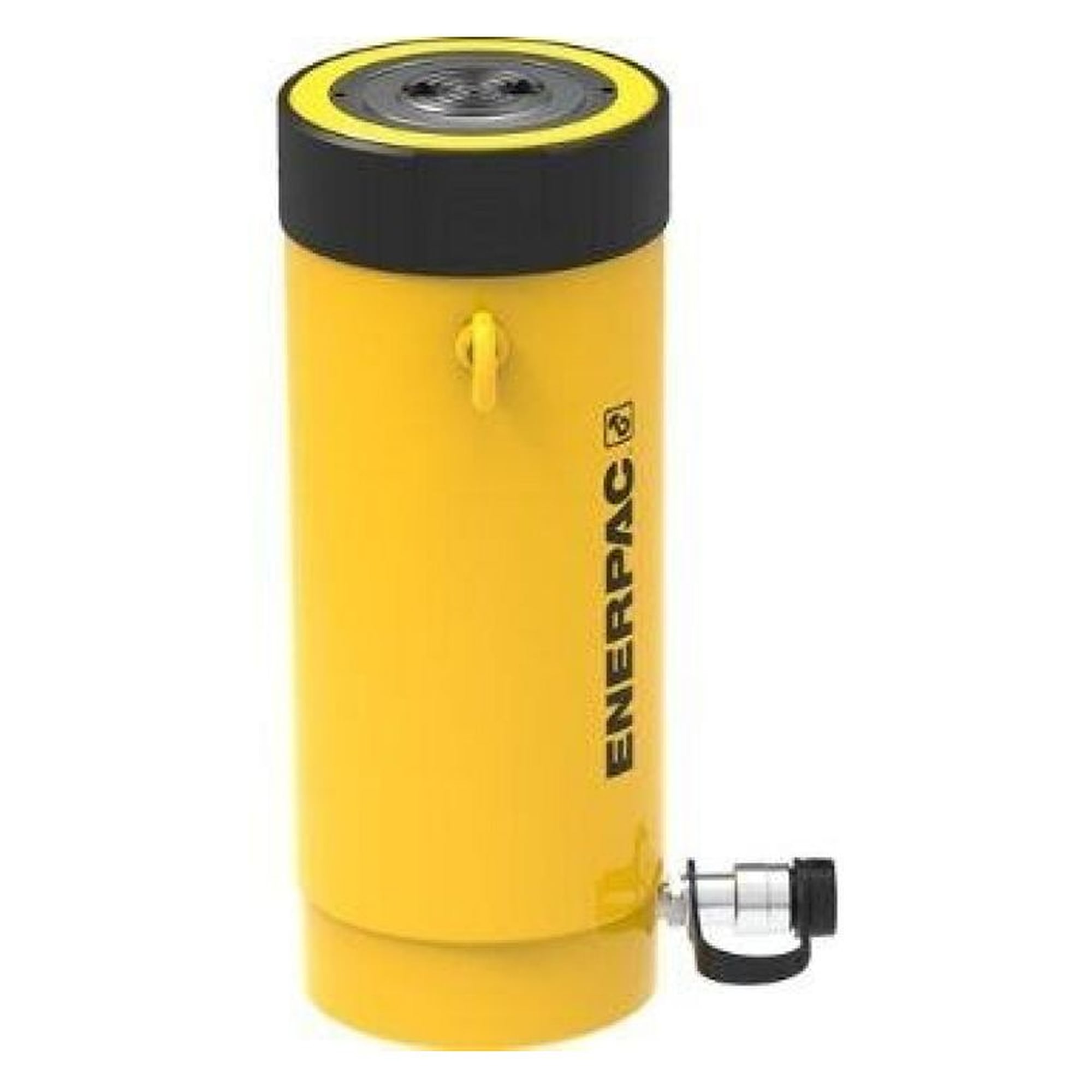

General Purpose Hydraulic Cylinder, 933 kN, 260 mm Stroke - Enerpac RC10010

The RC10010 from the RC-TRIO Series is a versatile general purpose cylinder with 933 kN of force and a 260 mm stroke, retracting up to three times faster through its hybrid spring-return system.

Benefits

• Trio Bearing System with up to four high-performance wear bands reduces bearing load and increases service life
• Hybrid spring-return system for up to three times faster retraction and higher productivity
• High-grade polyethylene seals and a nickel-plated high-strength steel plunger for long life and corrosion protection
• Trio Stop Ring with bronze side guidance takes the full extension force, wiper keeps contamination out
• Collar threads, base mounting holes and internal plunger thread for easy fixturing
• Model numbers, external dimensions and threads stay compatible with previous RC-Series cylinders

Technical data

• Capacity: 933 kN
• Stroke: 260 mm
• Action: single-acting, spring return
• Operating pressure: 700 bar

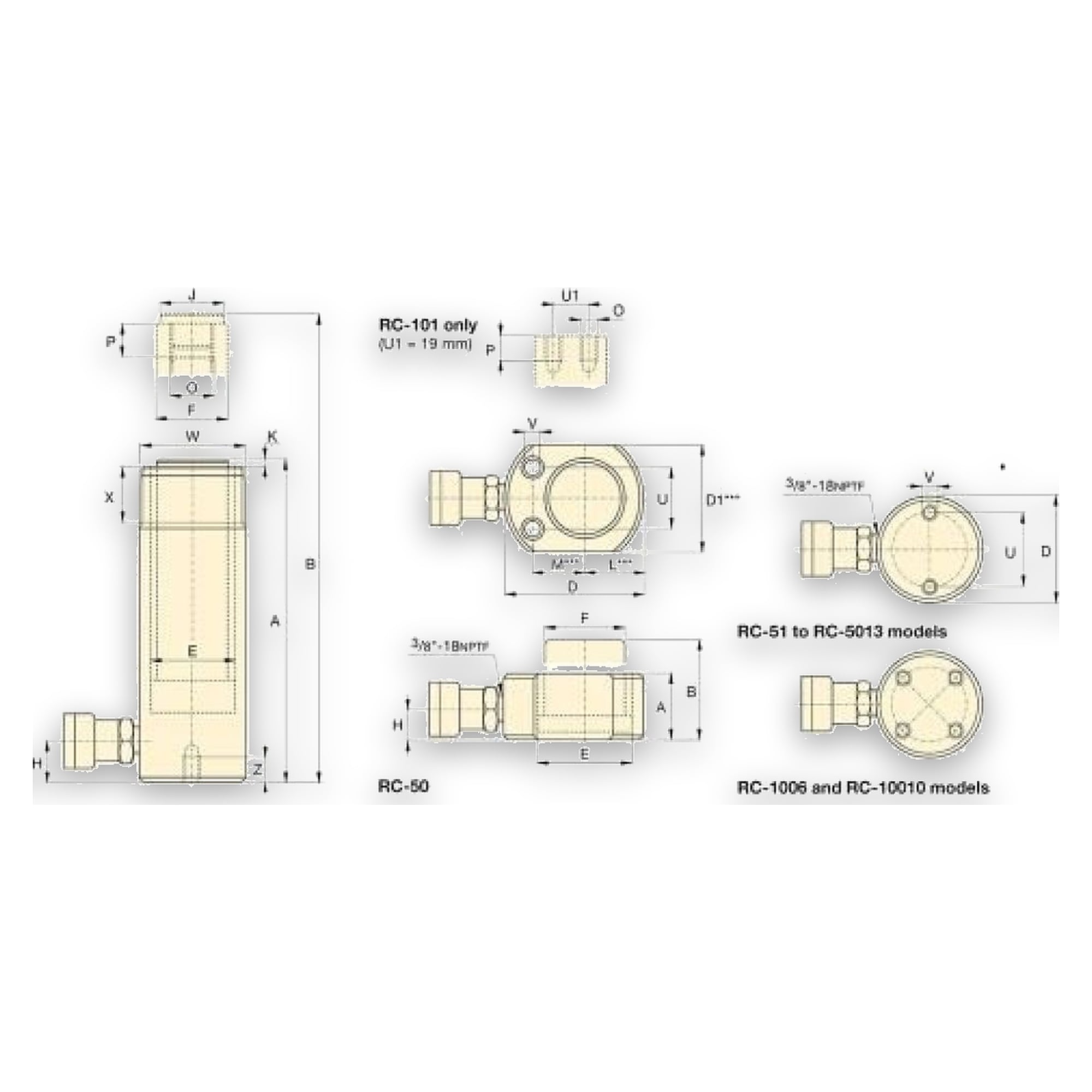

• Collapsed height: 449 mm
• Extended height: 709 mm
• Outside diameter: 178 mm
• Bore diameter: 130.2 mm
• Weight: 72.6 kg
• Series: RC
• Standard: ASME B30.1
