Aluminum Lock Nut Hydraulic Cylinder, 496 kN, 150 mm Stroke - Enerpac RACL506

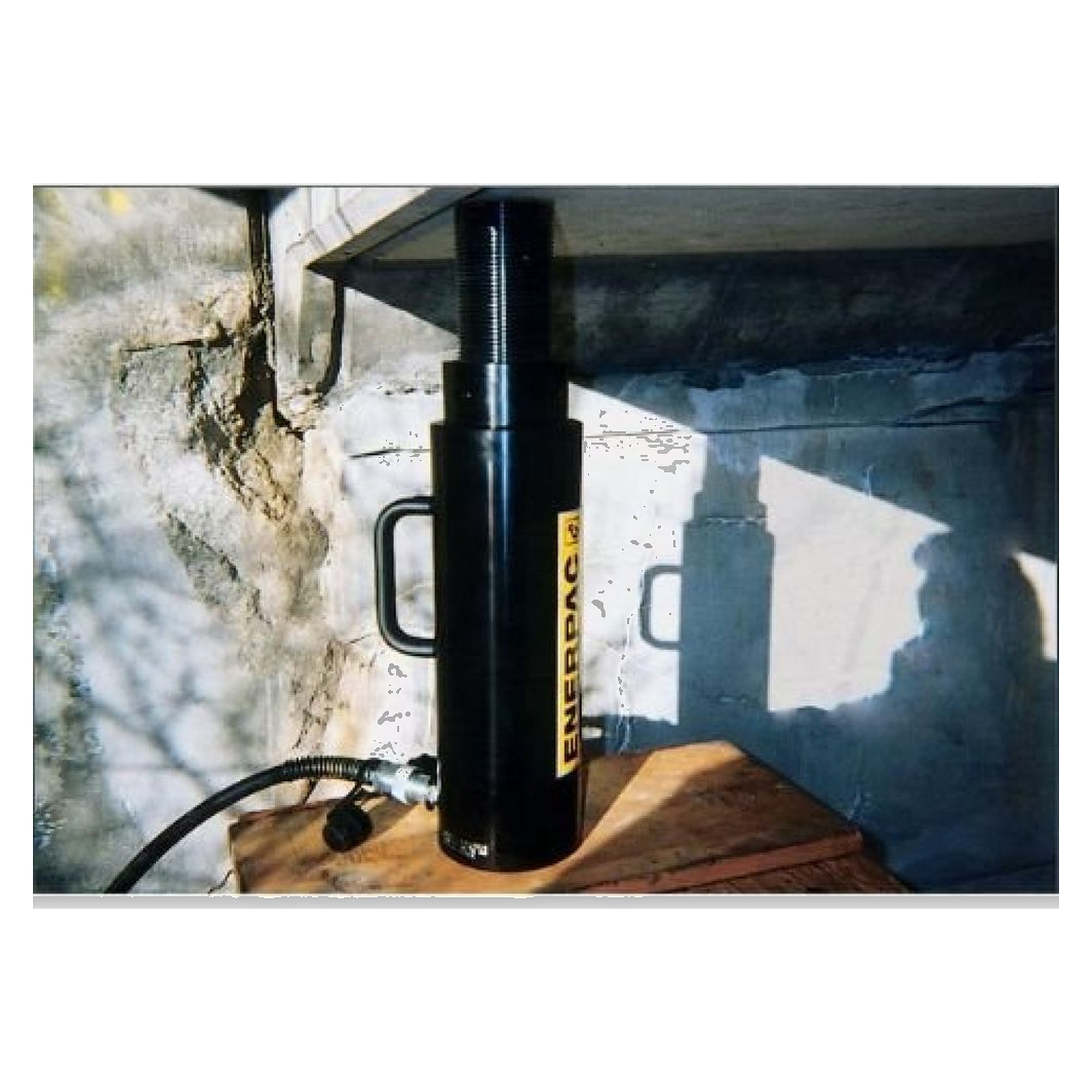

The RACL506 lifts and supports loads with 496 kN of force over a 150 mm stroke and then holds the position mechanically through the bolt-on aluminum lock nut.

Benefits

• Bolt-on aluminum lock nut holds the load mechanically for extended periods, independent of hydraulic pressure
• Around half the weight of comparable steel cylinders at 496 kN, easier to transport and position
• Composite bearings and hard coat anodized finish raise side-load resistance by up to 5% and extend service life
• Integral stop ring absorbs the full cylinder capacity and prevents plunger over-travel
• High-strength return spring for fast retraction, CR400 coupler and dust cap fitted as standard

Technical data

• Capacity: 496 kN
• Stroke: 150 mm
• Action: single-acting, with lock nut
• Operating pressure: 700 bar

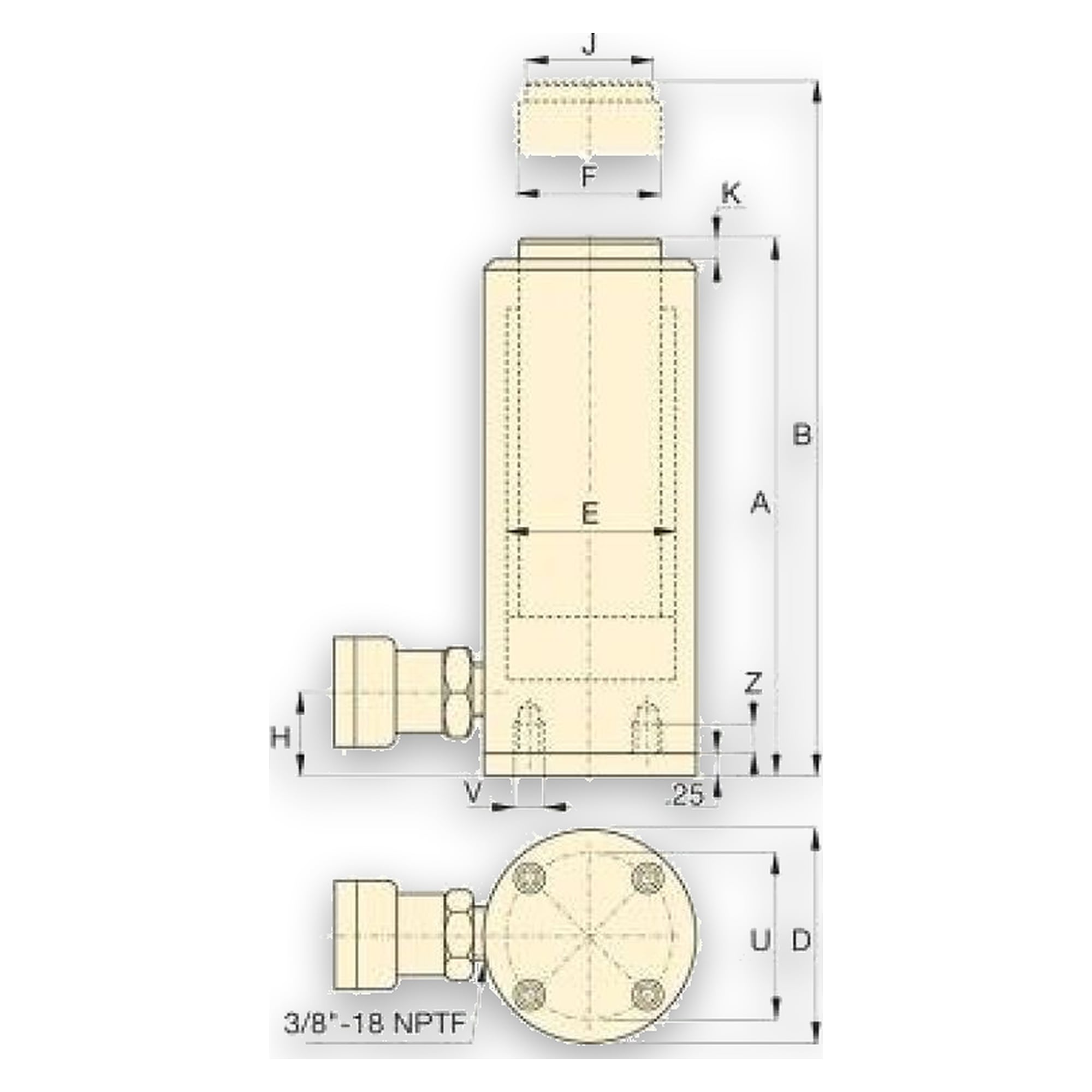

• Collapsed height: 336 mm
• Extended height: 486 mm
• Outside diameter: 130 mm
• Bore diameter: 95 mm
• Weight: 12.6 kg
• Series: RACL
• Standard: ASME B30.1
