Aluminum Lock Nut Hydraulic Cylinder, 496 kN, 50 mm Stroke - Enerpac RACL502

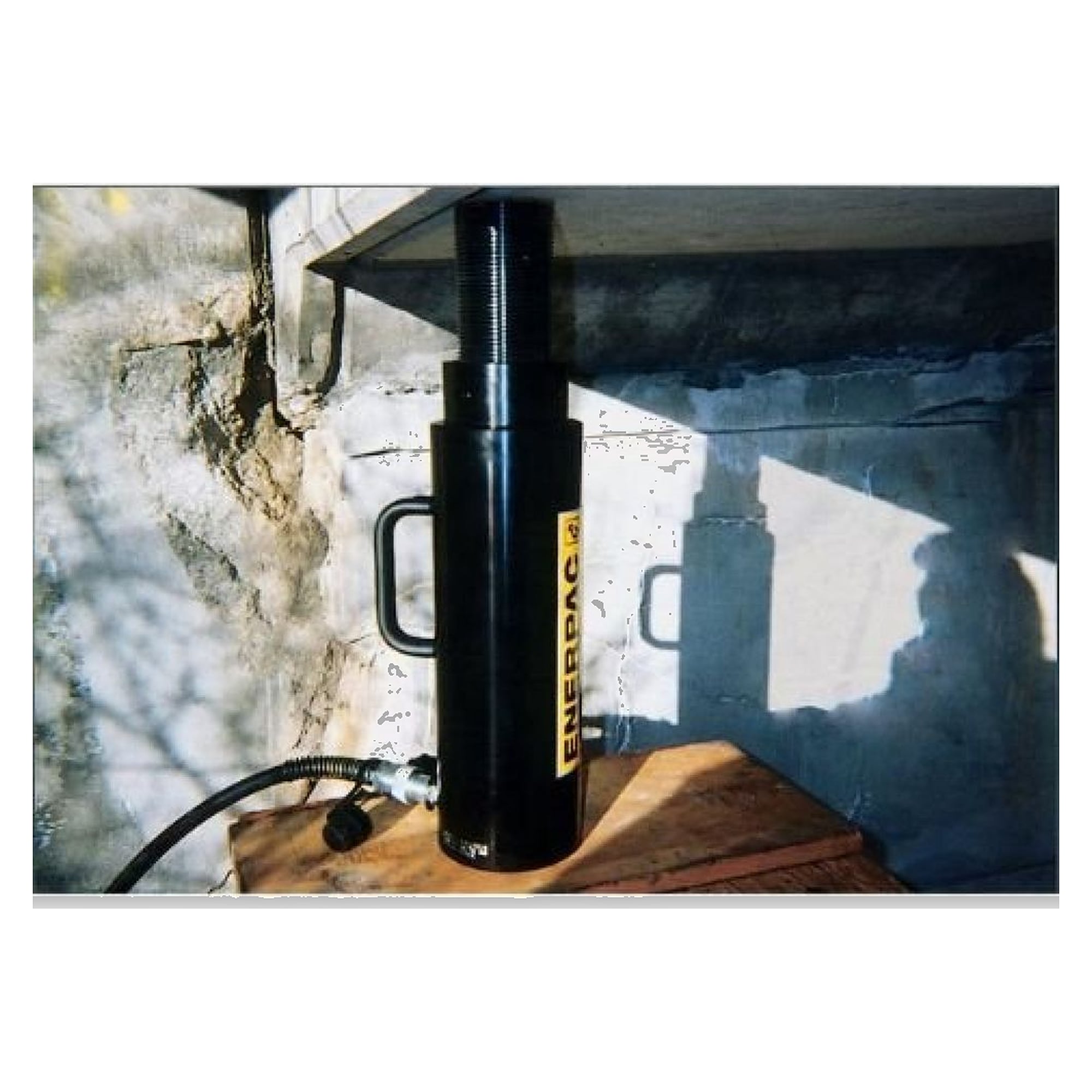

The RACL502 lifts and supports loads with 496 kN over a 50 mm stroke and then secures the position mechanically. The aluminum lock nut holds the load for extended periods, independent of hydraulic pressure.

Benefits

• Aluminum lock nut for mechanical load holding over long periods
• Composite bearings prevent metal-to-metal contact and improve side-load capacity
• Integral stop ring limits plunger travel and withstands the full cylinder capacity
• Hard-anodized aluminum body at about half the weight of steel
• High-strength return spring, steel base plate and carrying handle as standard, CR400 coupler with dust cap

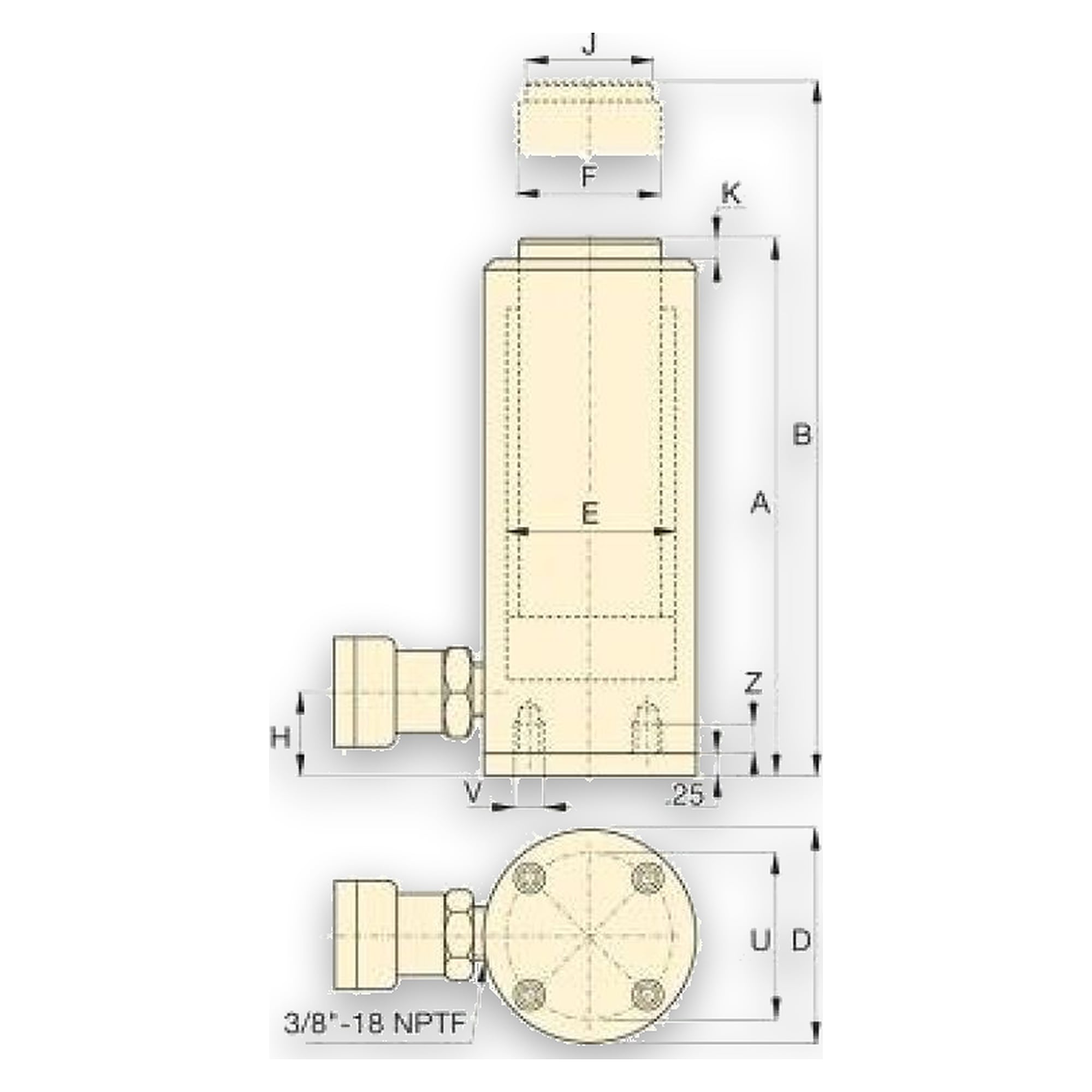

Technical data

• Capacity: 496 kN
• Stroke: 50 mm
• Operating pressure: 700 bar
• Type: single-acting, spring return
• Outside diameter: 130 mm
• Plunger thread (lock nut): Tr 80 x 4
• Lock nut height: 50 mm
• Base mounting thread: M6
• Weight: 9.3 kg
• Series: RACL

Standards

• Compliant with ASME B30.1
