Single-acting aluminum lock nut hydraulic cylinder delivering 309 kN over a 50 mm stroke. The lock nut holds the load mechanically, even if pressure drops, at about 5.4 kg.

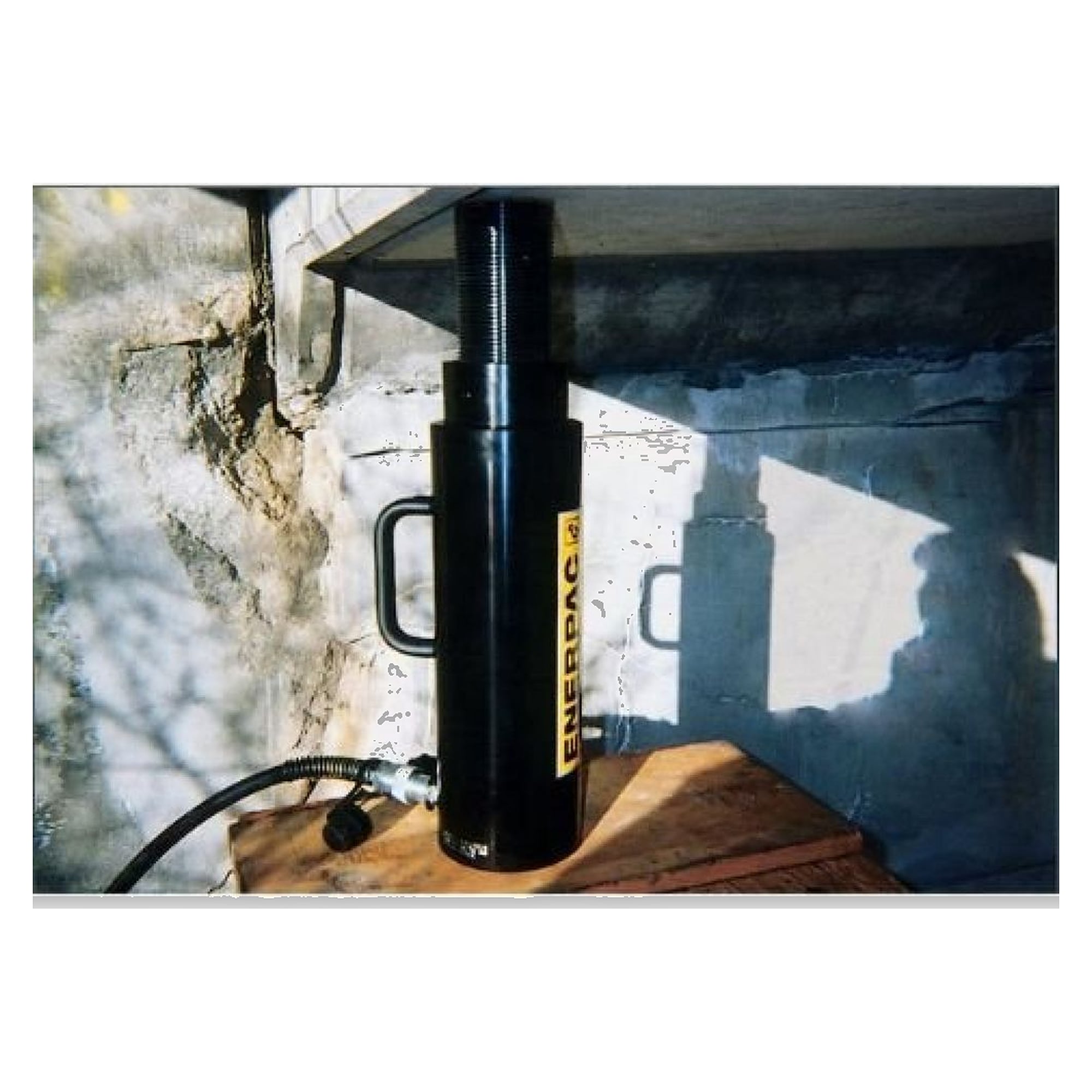

Aluminum Lock Nut Hydraulic Cylinder, 309 kN, 50 mm Stroke - Enerpac RACL302
ENERPAC Original product
Net price (excl. VAT)
€2,051.18 €1,723.68
Item ENP-RACL302
Manufacturer no. RACL302
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.RACL302
Country of originUnited States
ConditionNew
Artikel
ENP-RACL302
Frequently Bought Together
- This Item: €2,051.18 €1,723.68
- General Purpose Hydraulic Cylinder, 222 kN, 159 mm Stroke - Enerpac BRD256 €3,194.64 €2,684.57
- Cylinder Mounting Block - Enerpac MF551 €1,176.17 €988.38
The RACL302 lifts and supports loads with 309 kN over a 50 mm stroke and then secures the position mechanically. The aluminum lock nut holds the load for extended periods, independent of hydraulic pressure.
Benefits
- Aluminum lock nut for mechanical load holding over long periods
- Composite bearings prevent metal-to-metal contact and improve side-load capacity
- Integral stop ring limits plunger travel and withstands the full cylinder capacity
- Hard-anodized aluminum body at about half the weight of steel
- High-strength return spring, steel base plate and carrying handle as standard, CR400 coupler with dust cap
Technical data
- Capacity: 309 kN
- Stroke: 50 mm
- Operating pressure: 700 bar
- Type: single-acting, spring return
- Weight: 5.4 kg
- Series: RACL
Standards
- Compliant with ASME B30.1
| Hersteller-Nr | RACL302 |
|---|---|
| Manufacturer | Enerpac |
| Country of Manufacture | United States |
| Weight | 5.400000 |
| Hinweis | Industriewerkzeuge |
| GPSR Herstellerdaten | Enerpac GmbH, Willstätterstraße 13, DE-40549 Düsseldorf, www.enerpac.com |
| Artikel-Authentizität | Original product |
| Artikelzustand | New |
| Series | RACL |
| Kapazität, kN | 250-500 kN |
| Position sensing | No |
