Aluminum Lock Nut Hydraulic Cylinder, 1589 kN, 150 mm Stroke - Enerpac RACL1506

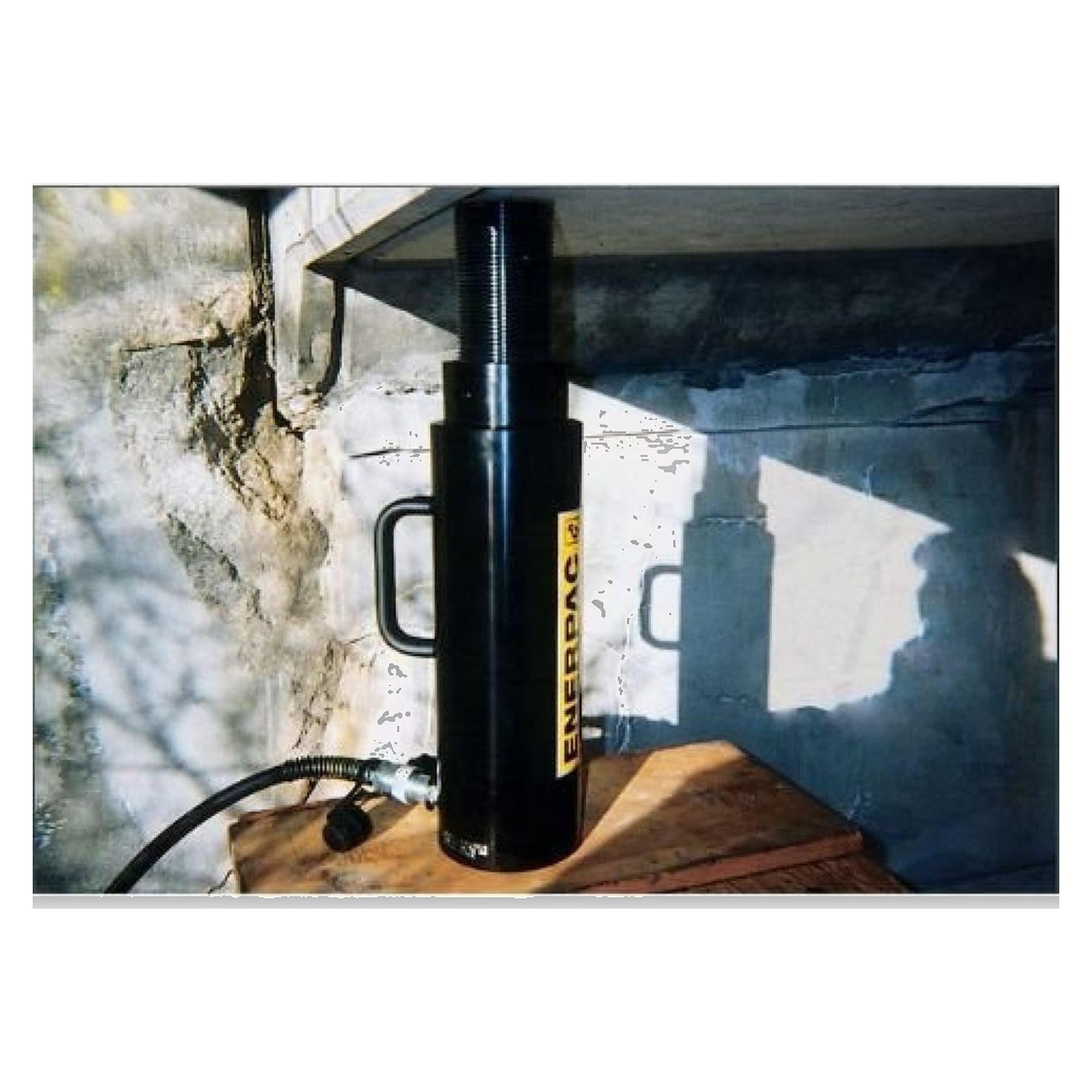

The RACL1506 lifts and supports loads with 1589 kN over a 150 mm stroke and then secures the position mechanically. The aluminum lock nut holds the load for extended periods, independent of hydraulic pressure.

Benefits

• Aluminum lock nut for mechanical load holding over long periods
• Composite bearings prevent metal-to-metal contact and improve side-load capacity
• Integral stop ring limits plunger travel and withstands the full cylinder capacity
• Hard-anodized aluminum body at about half the weight of steel
• High-strength return spring, steel base plate and carrying handle as standard, CR400 coupler with dust cap

Technical data

• Capacity: 1589 kN
• Stroke: 150 mm
• Operating pressure: 700 bar
• Type: single-acting, spring return
• Weight: 40.2 kg
• Series: RACL

Standards

• Compliant with ASME B30.1
