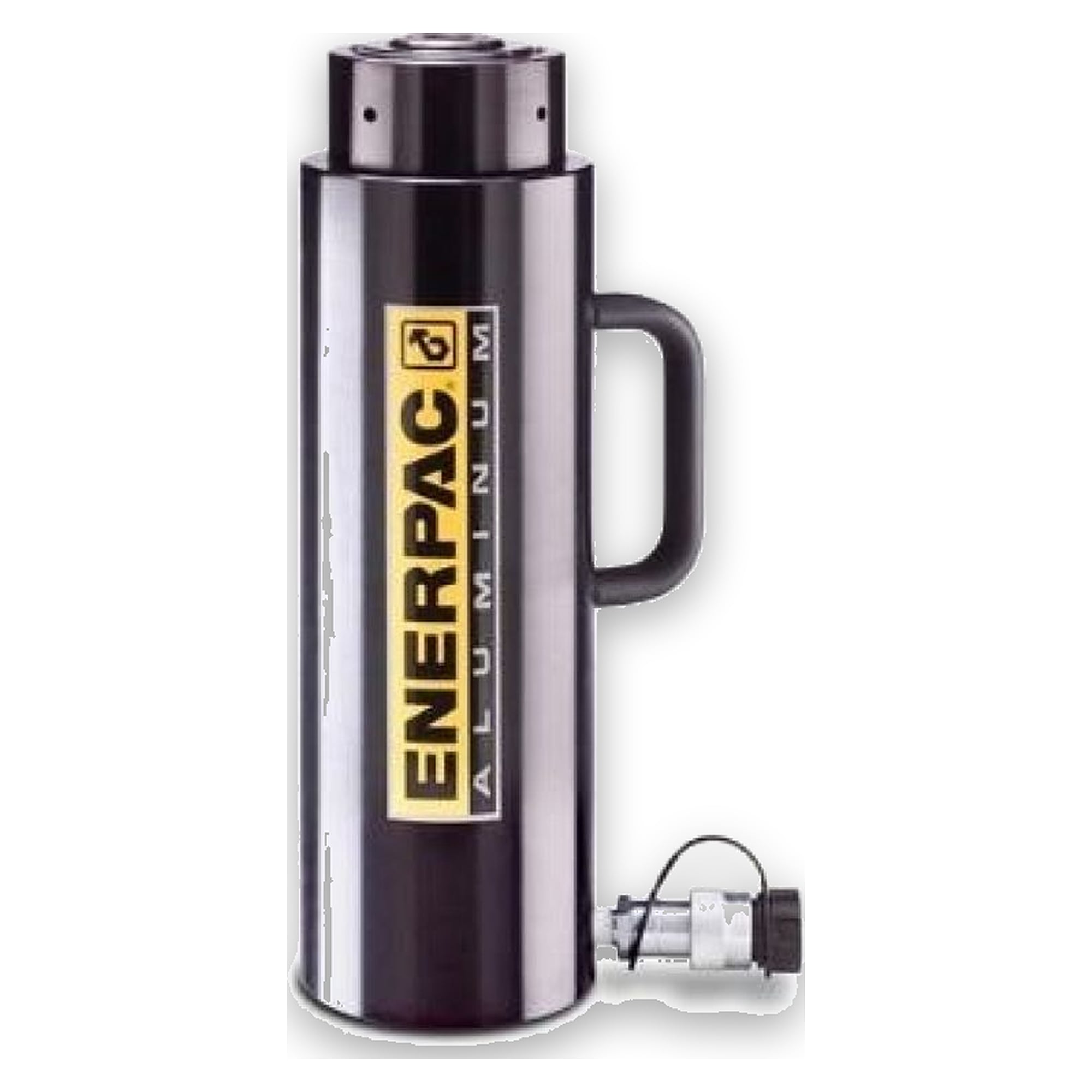

Aluminum Lock Nut Hydraulic Cylinder, 1589 kN, 100 mm Stroke - Enerpac RACL1504
Single-acting aluminum lock nut hydraulic cylinder delivering 1589 kN over a 100 mm stroke. The lock nut holds the load mechanically, even if pressure drops, at about 36.2 kg.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description

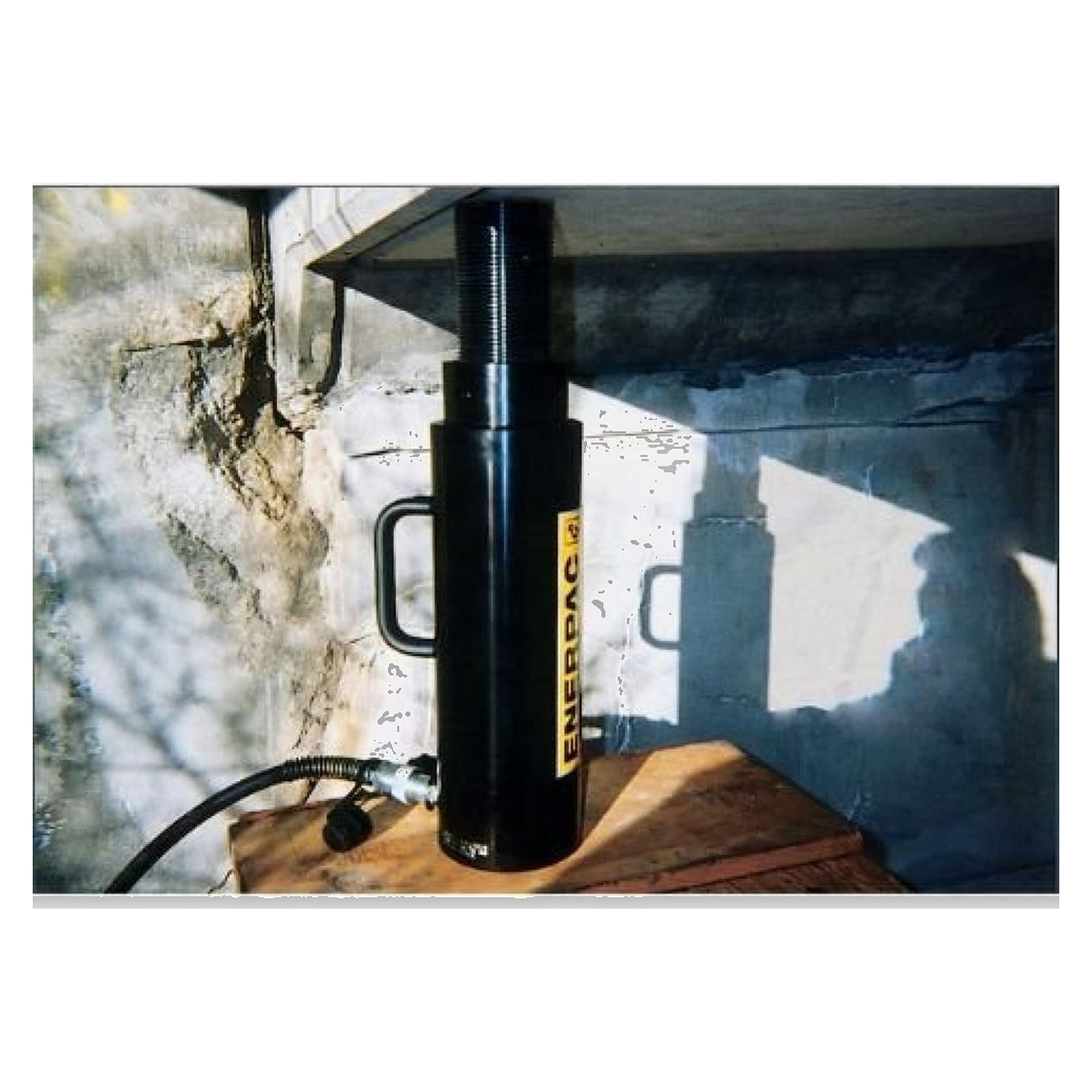

The RACL1504 lifts and supports loads with 1589 kN over a 100 mm stroke and then secures the position mechanically. The aluminum lock nut holds the load for extended periods, independent of hydraulic pressure.
Benefits
- Aluminum lock nut for mechanical load holding over long periods
- Composite bearings prevent metal-to-metal contact and improve side-load capacity
- Integral stop ring limits plunger travel and withstands the full cylinder capacity
- Hard-anodized aluminum body at about half the weight of steel
- High-strength return spring, steel base plate and carrying handle as standard, CR400 coupler with dust cap
Standards
- Compliant with ASME B30.1
Technical data
| Capacity | 1589 kN |
|---|---|
| Stroke | 100 mm |
| Operating pressure | 700 bar |
| Type | single-acting, spring return |
| Weight | 36.2 kg |
| Series | RACL |
| Manufacturer | Enerpac |
| Hersteller-Nr | RACL1504 |
| Hinweis | Industriewerkzeuge |
| GPSR Herstellerdaten | Enerpac GmbH, Willstätterstraße 13, DE-40549 Düsseldorf, www.enerpac.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Country of Manufacture | United States |
| Kapazität, kN | 1000-2000 kN |
