Aluminum Lock Nut Hydraulic Cylinder, 1002 kN, 150 mm Stroke - Enerpac RACL1006

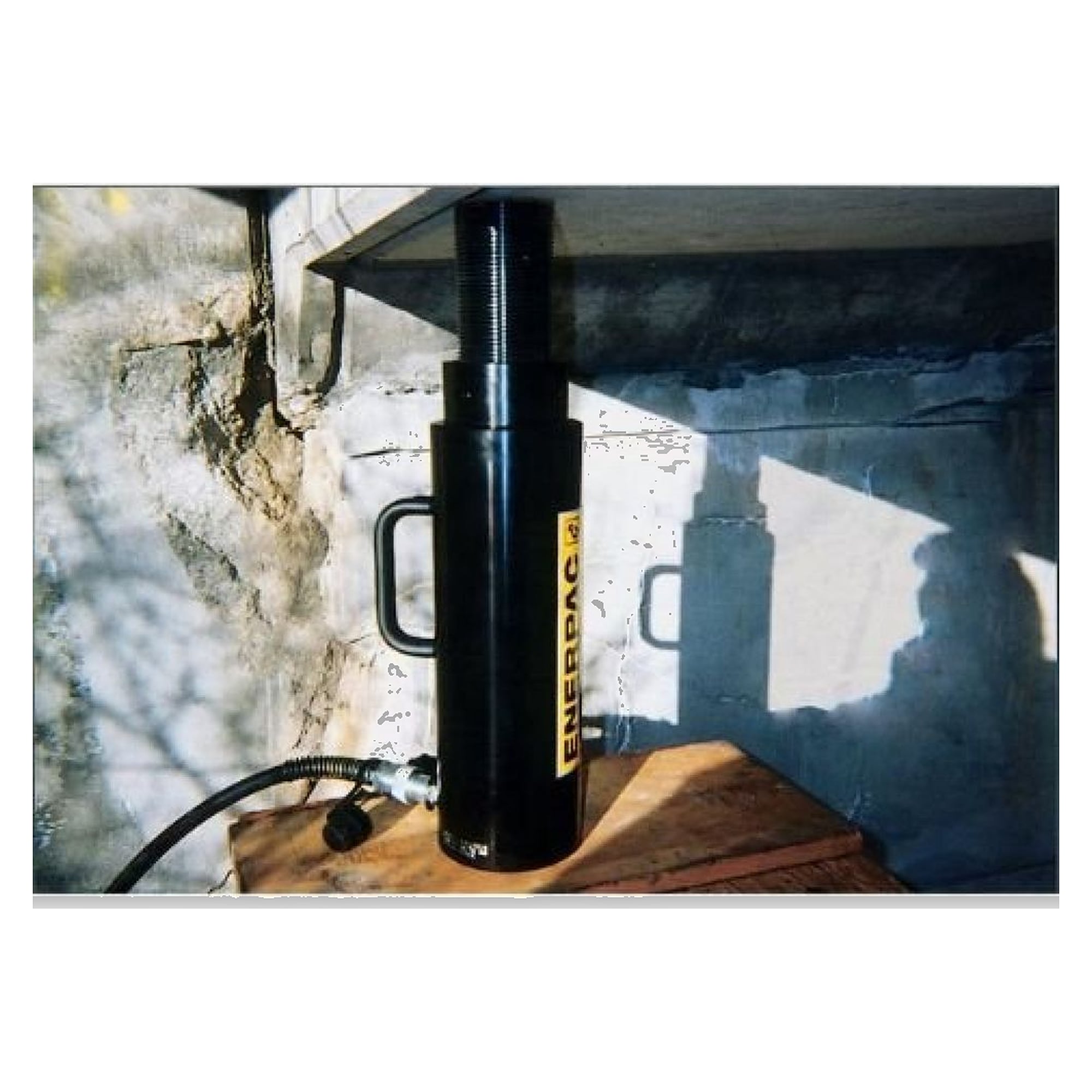

The RACL1006 lifts and supports loads with 1002 kN over a 150 mm stroke and then secures the position mechanically. The aluminum lock nut holds the load for extended periods, independent of hydraulic pressure.

Benefits

• Aluminum lock nut for mechanical load holding over long periods
• Composite bearings prevent metal-to-metal contact and improve side-load capacity
• Integral stop ring limits plunger travel and withstands the full cylinder capacity
• Hard-anodized aluminum body at about half the weight of steel
• High-strength return spring, steel base plate and carrying handle as standard, CR400 coupler with dust cap

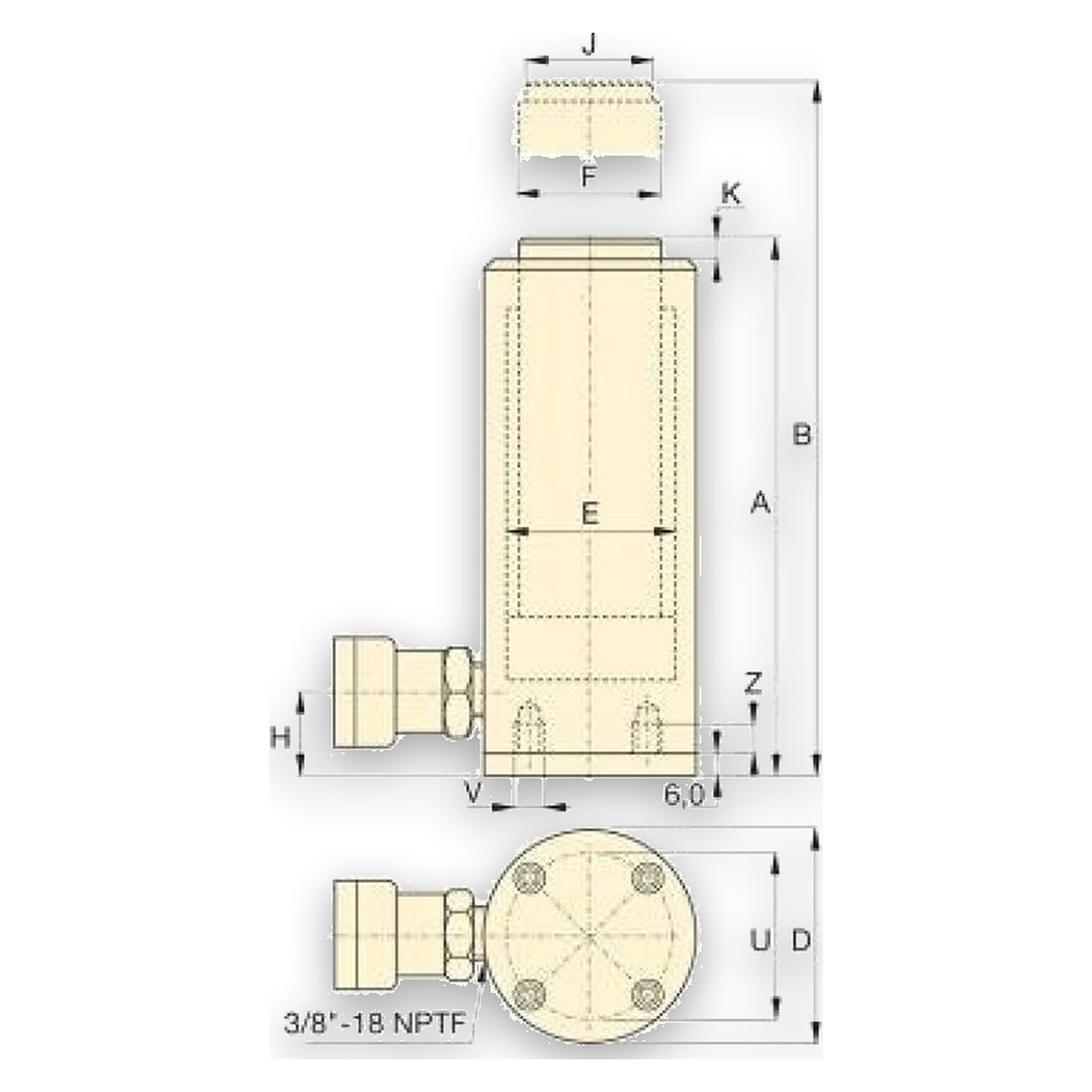

Technical data

• Capacity: 1002 kN
• Stroke: 150 mm
• Operating pressure: 700 bar
• Type: single-acting, spring return
• Outside diameter: 180 mm
• Plunger thread (lock nut): Tr 110 x 6
• Lock nut height: 75 mm
• Base mounting thread: M10
• Weight: 26.5 kg
• Series: RACL

Standards

• Compliant with ASME B30.1
