Single-acting aluminum hollow plunger cylinder rated 1588 kN with 200 mm stroke. The through-hole plunger transfers pull and push forces for tensioning, pulling and lifting, at just 70.1 kg.
Aluminum Hollow Plunger Hydraulic Cylinder, 1588 kN, 200 mm Stroke - Enerpac RACH1508
ENERPAC
Original product
Net price (excl. VAT)
€11,947.22
Item
ENP-RACH1508
Manufacturer no.
RACH1508
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.RACH1508
Country of originUnited States
ConditionNew
Artikel
ENP-RACH1508
Frequently Bought Together
-
This Item:
€11,947.22
-
High Tonnage Hydraulic Cylinder, 1002 kN, 250 mm Stroke - Enerpac HCR10010
€3,074.00
-
High Tonnage Hydraulic Cylinder, 1002 kN, 200 mm Stroke - Enerpac HCG1008
€2,065.70
Total price
The RACH1508 hollow plunger cylinder pulls and pushes loads with 1588 kN over a 200 mm stroke. Its through-hole plunger accepts tie rods or spindles, which suits tensioning, pulling, testing and lifting.
Benefits
- Hollow plunger handles both pull and push forces, ideal for tensioning and pulling
- Bearing bands improve side-load capacity and extend service life
- Floating center tube increases seal life
- Integral stop ring limits plunger travel and withstands the full cylinder capacity
- Hard-anodized aluminum body, light and corrosion-resistant, with return spring and carrying handle
Technical data
- Capacity: 1588 kN
- Stroke: 200 mm
- Operating pressure: 700 bar
- Type: single-acting, spring return
- Outside diameter: 275 mm
- Plunger diameter: 150 mm
- Center hole diameter: 79 mm
- Base mounting thread: M10
- Weight: 70.1 kg
- Series: RACH
Applications

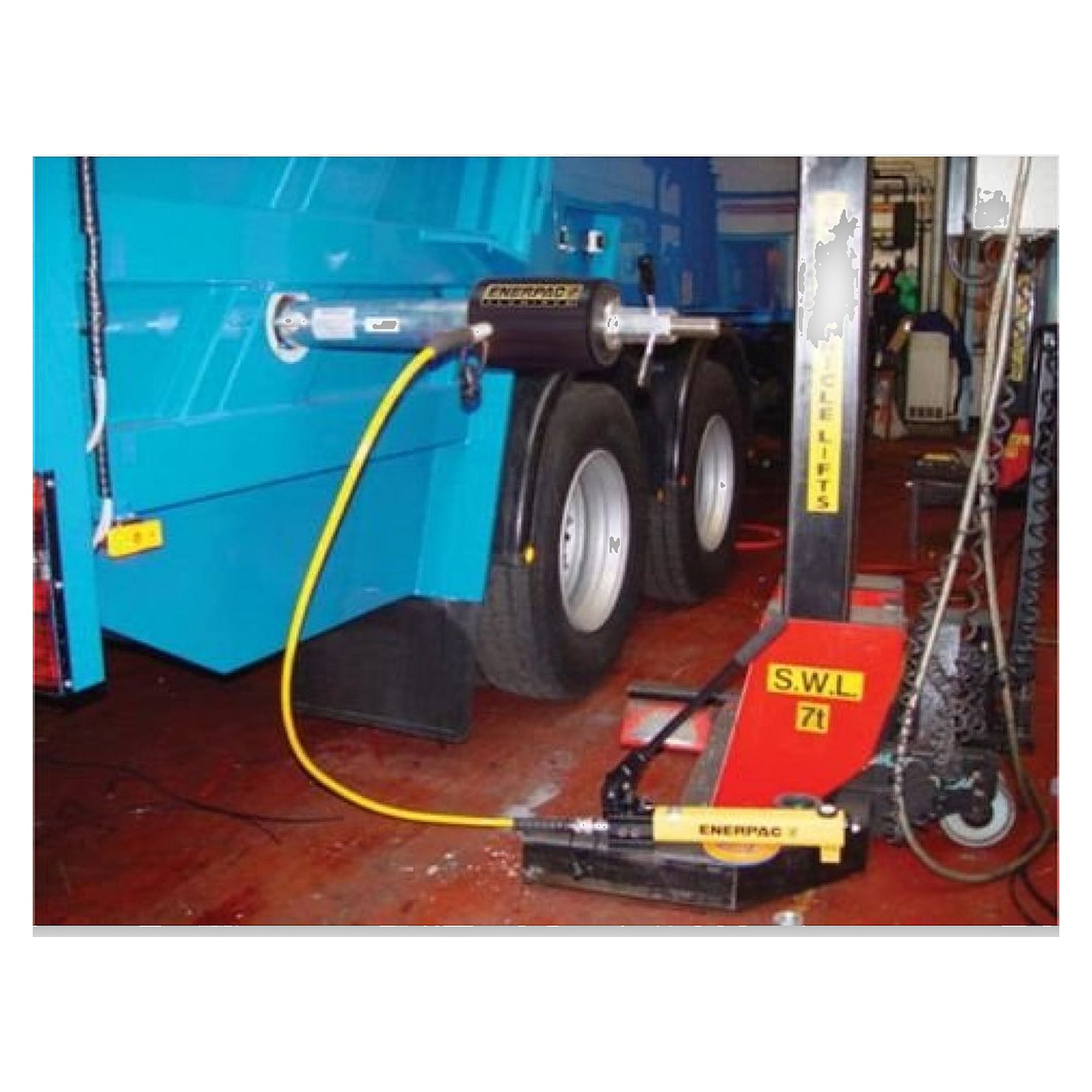

Suited to bolt tensioning, testing and pulling tasks, and to lifting where the load is anchored to the hollow plunger.
Standards
- Compliant with ASME B30.1
| Hersteller-Nr | RACH1508 |
|---|---|
| Manufacturer | Enerpac |
| Country of Manufacture | United States |
| Weight | 70.100000 |
| Hinweis | Industriewerkzeuge |
| GPSR Herstellerdaten | Enerpac GmbH, Willstätterstraße 13, DE-40549 Düsseldorf, www.enerpac.com |
| Artikel-Authentizität | Original product |
| Artikelzustand | New |
| Series | RACH |
| Kapazität, kN | 1000-2000 kN |
