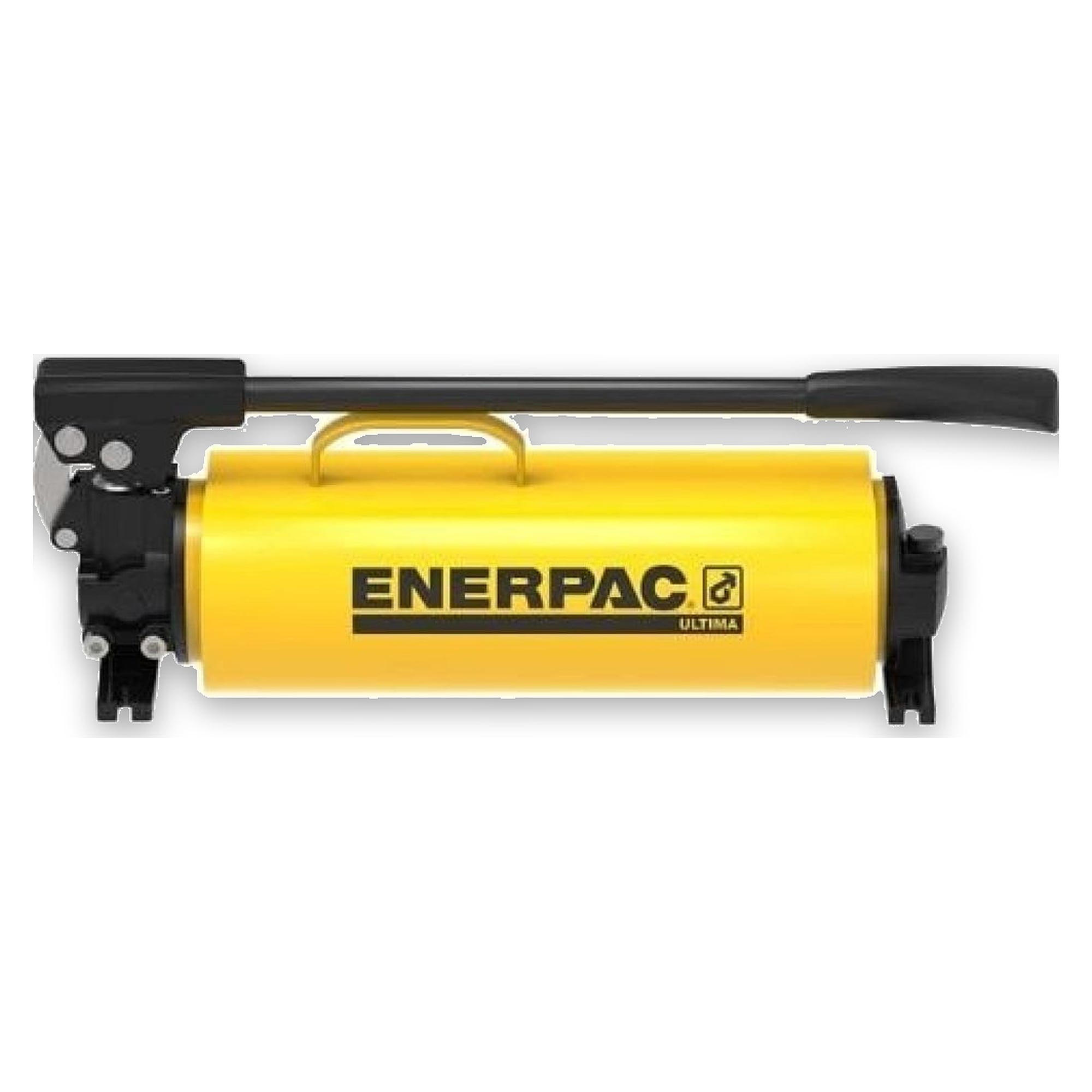

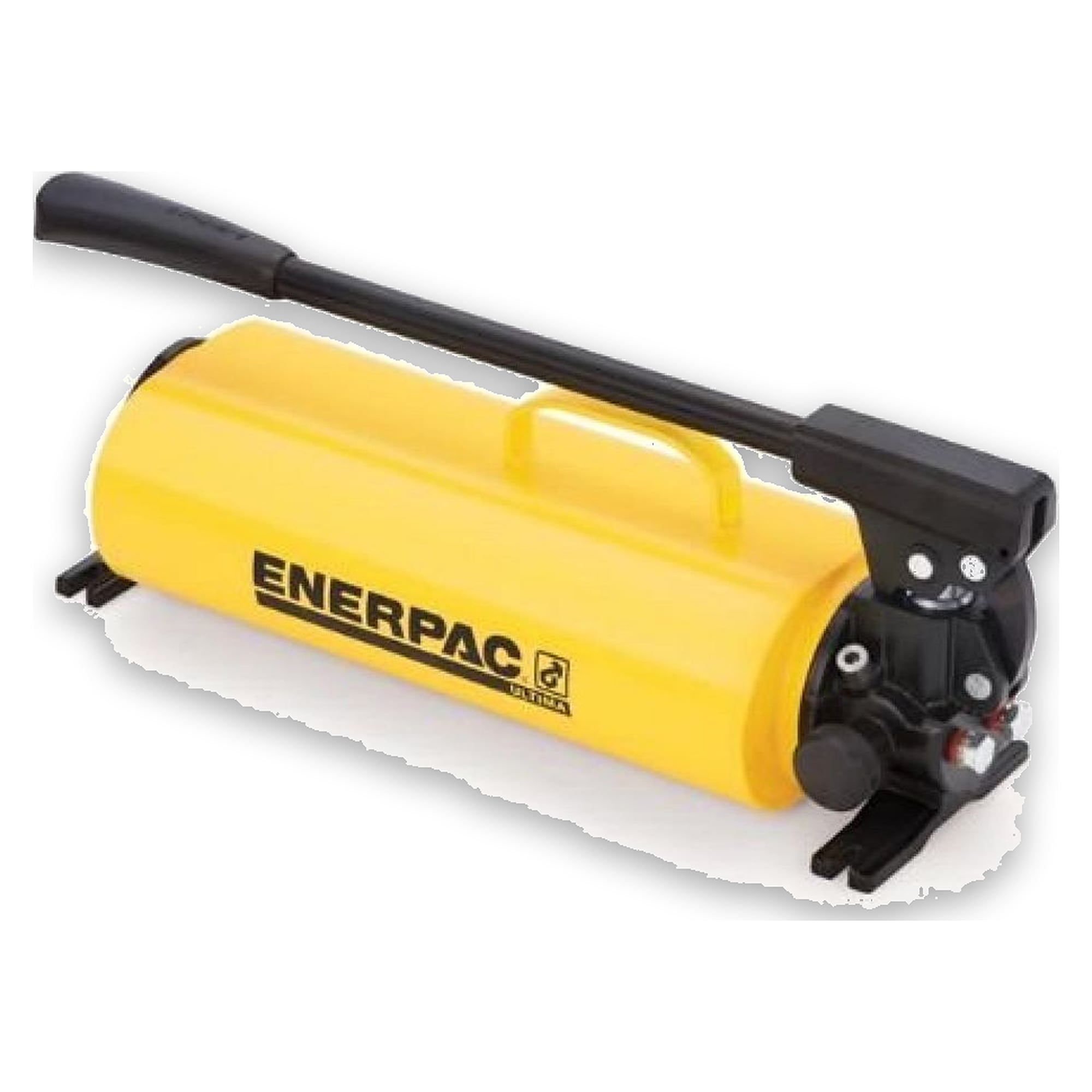

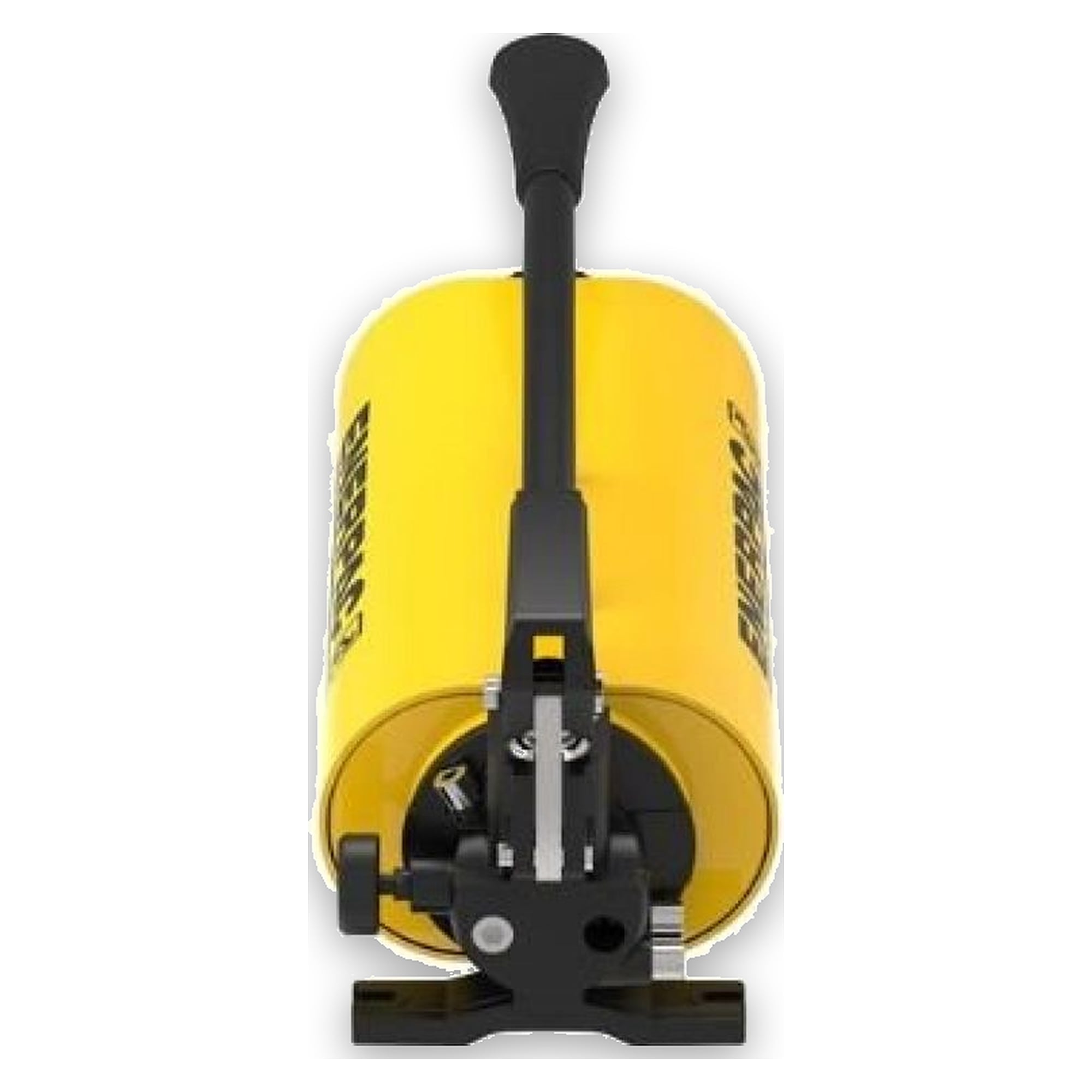

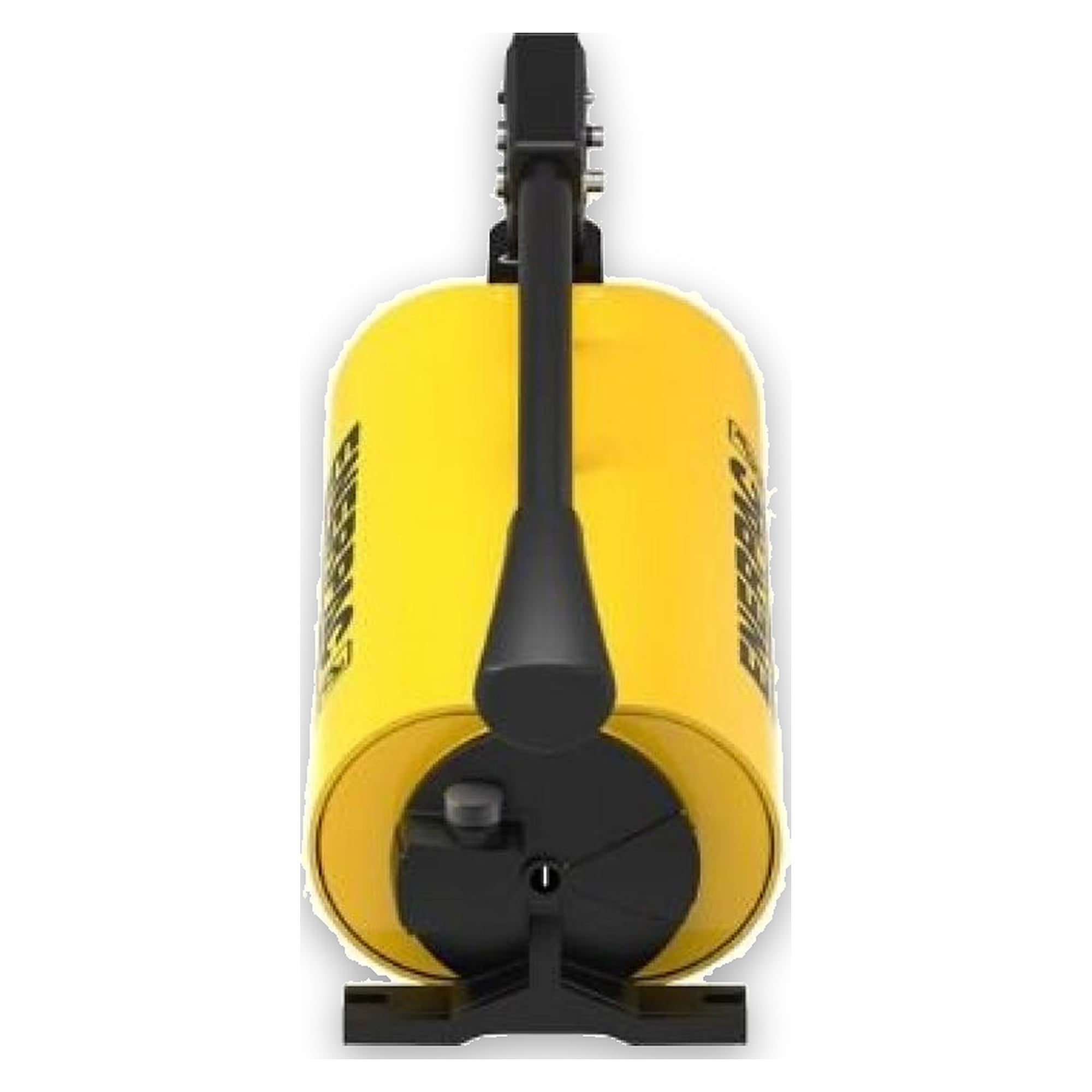

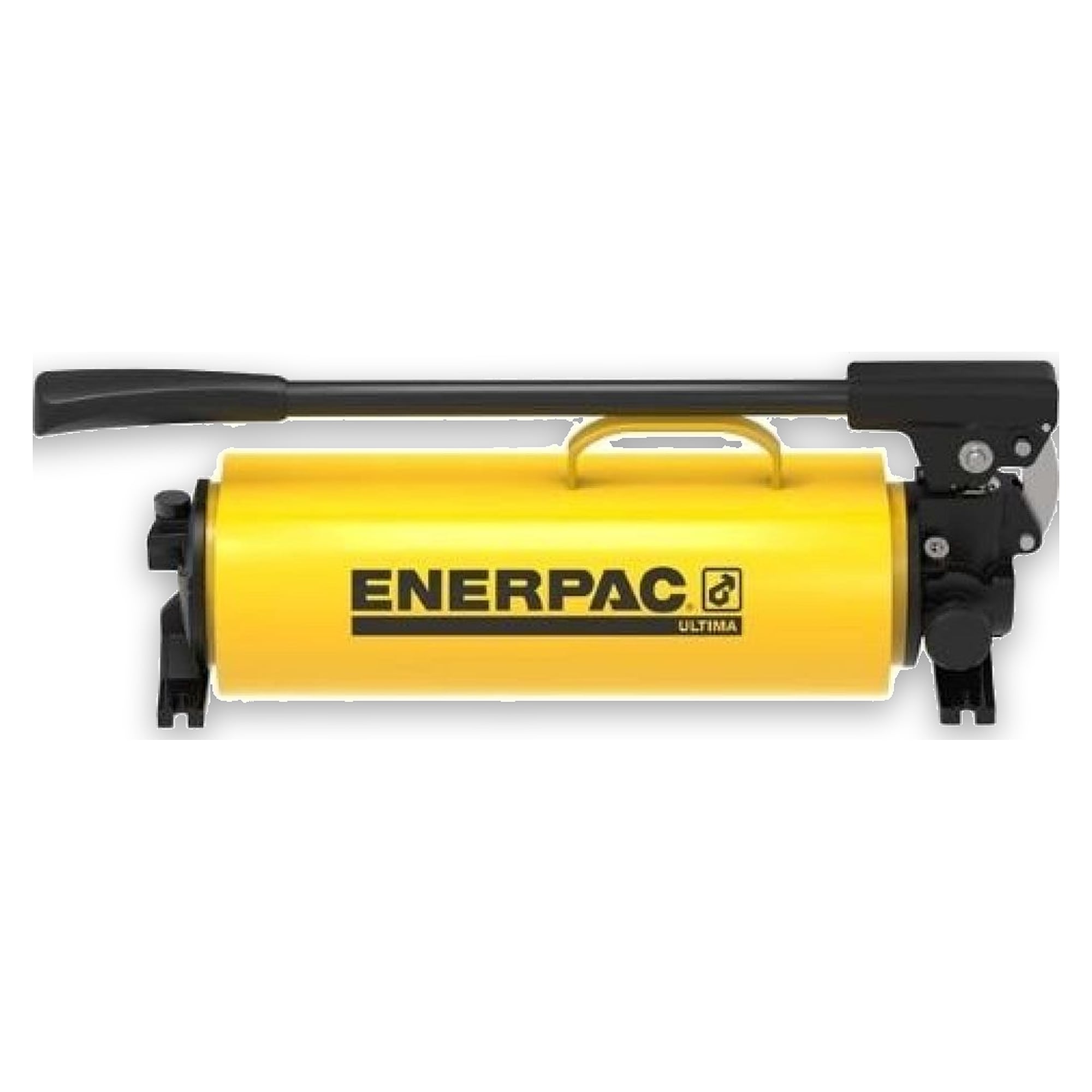

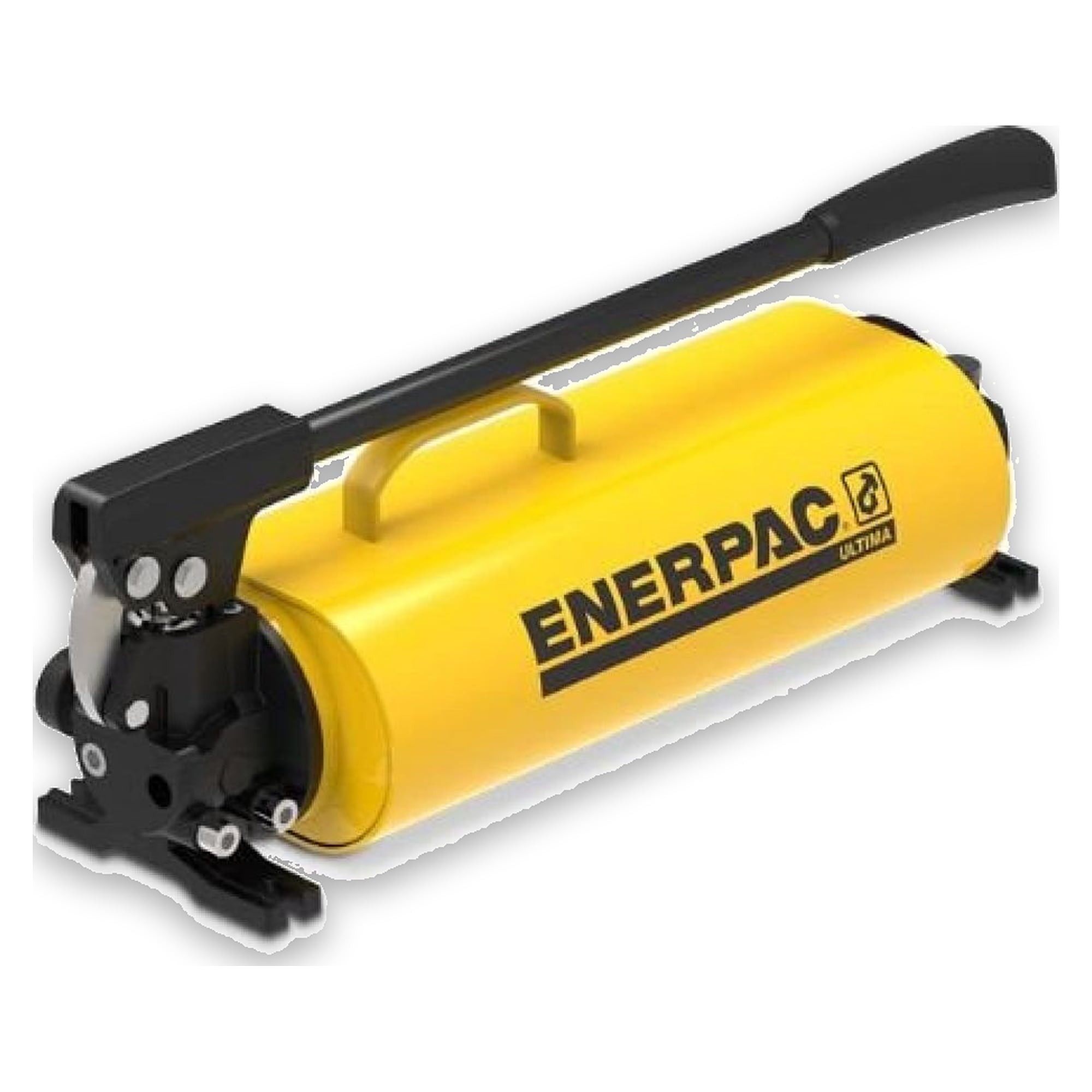

ULTIMA Steel Hydraulic Hand Pump, Two Speed, 4100 cm³ - Enerpac P801

The P801 is a two-speed ULTIMA steel hydraulic hand pump with 4100 cm³ of usable oil for single-acting cylinders and tools at up to 700 bar. Two-speed operation cuts handle strokes by as much as 78% versus single-speed pumps, delivering high flow on approach and switching automatically to the high-pressure stage under load.

Benefits

• Two-speed operation, up to 78% fewer handle strokes for faster load approach
• Chrome-plated plunger and wiper system for long service life
• Vent-free reservoir prevents spills and works in any orientation
• Reduced handle effort and ergonomic Quick Grip handle to limit fatigue
• Integral reservoir over-pressurization protection

Technical data

• Type: ULTIMA steel hydraulic hand pump, two speed
• Usable oil capacity: 4100 cm³ (4.1 L)
• Operating pressure: 700 bar
• Action: single-acting
• Weight: 14.1 kg
• Series: P
