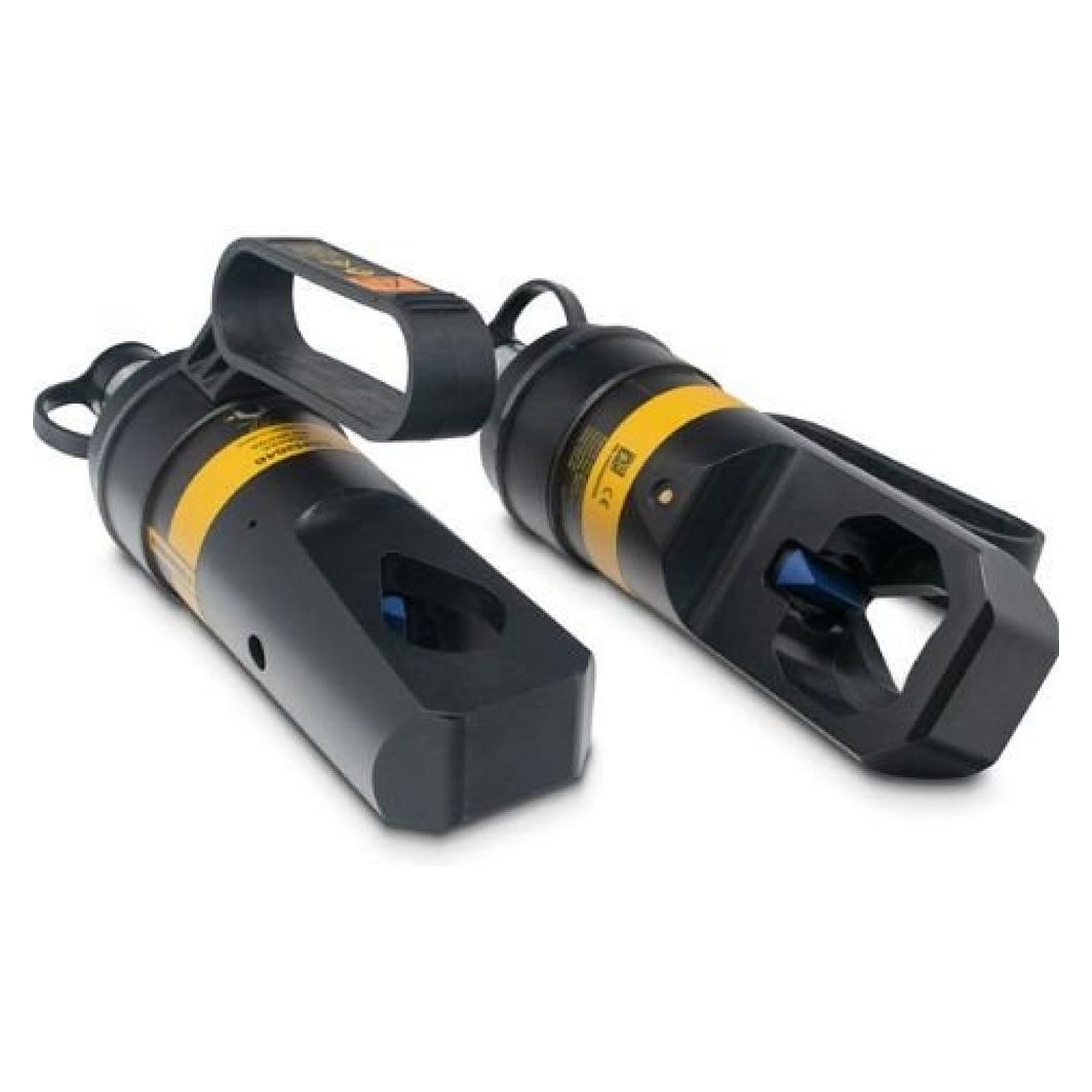

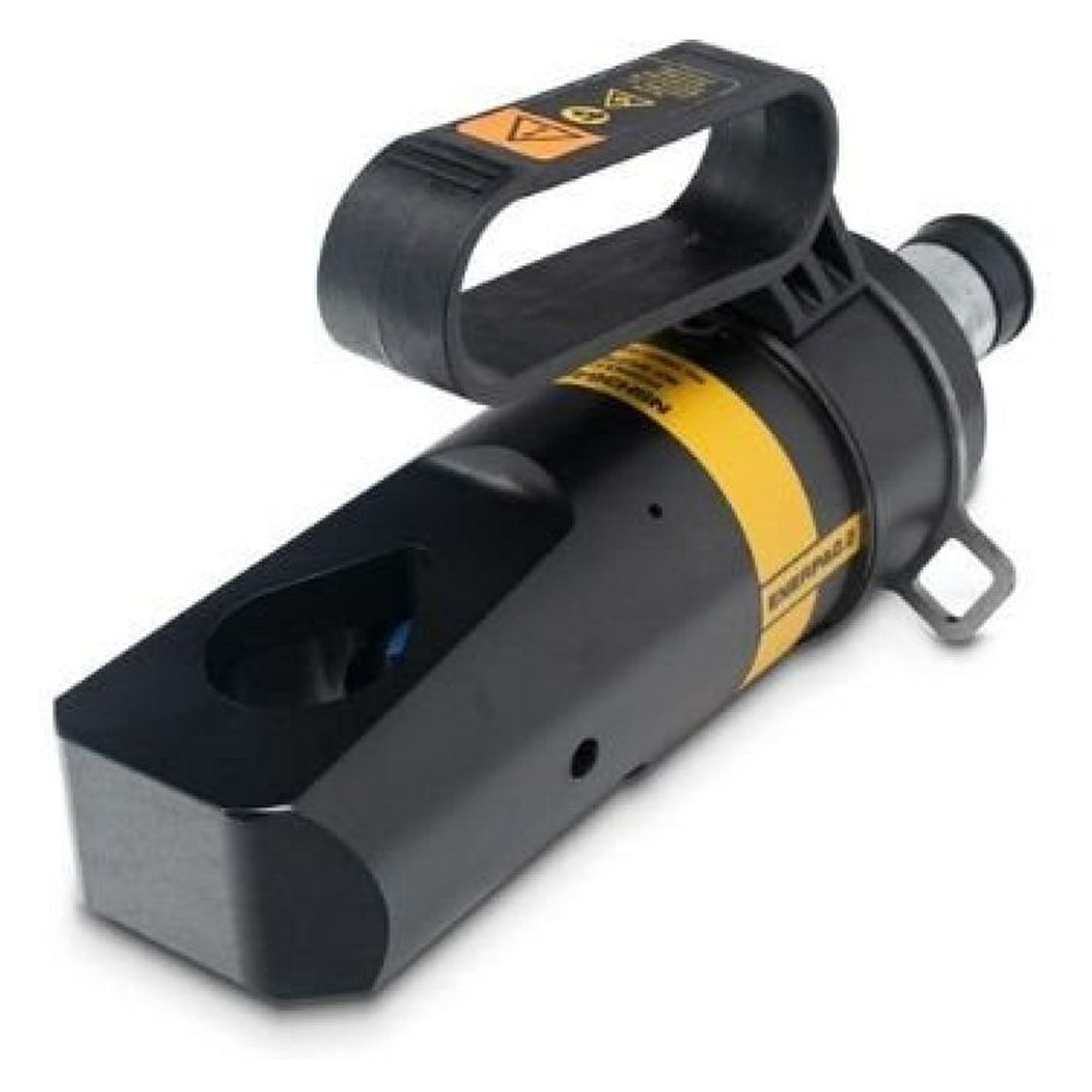

Hydraulic Nut Splitter, 360 kN, Hexagon up to 65 mm - Enerpac NSH5065

Name: Hydraulic Nut Splitter, 360 kN, Hexagon up to 65 mm - Enerpac NSH5065
Brand: Enerpac
SKU: ENP-NSH5065
Price: 5819.00 EUR
Availability: InStock

Enerpac ✓ Original product Brand new Made in United States

Hydraulic nut splitter NSH5065 with 360 kN of splitting force for hexagon nuts up to 65 mm. Fast tip change, safety lanyard and a standard CR400 coupler for bolted flange joints.

Net

€5,819.00

excl. VAT

Item ENP-NSH5065

Manufacturer no. NSH5065

Question about this item

Datasheet (PDF)

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

The NSH5065 splits seized hexagon nuts up to 65 mm with 360 kN of force and is designed to meet the challenges of bolted pipeline flange joints. It is driven by a separate hydraulic power source at 700 bar.

Benefits

Quick and easy cutting-tip replacement
Drop-tested revolving anchor point with safety lanyard for work at height
Revolving composite handle for vibration and shock isolation
CR400 female half coupler fitted as standard

Applications

For bolted pipeline flange joints. Not to be used on square nuts or stainless steel.

In the box

Set of hexagon keys
Spare cutting tip
Tip retention screw
Spare alignment screw

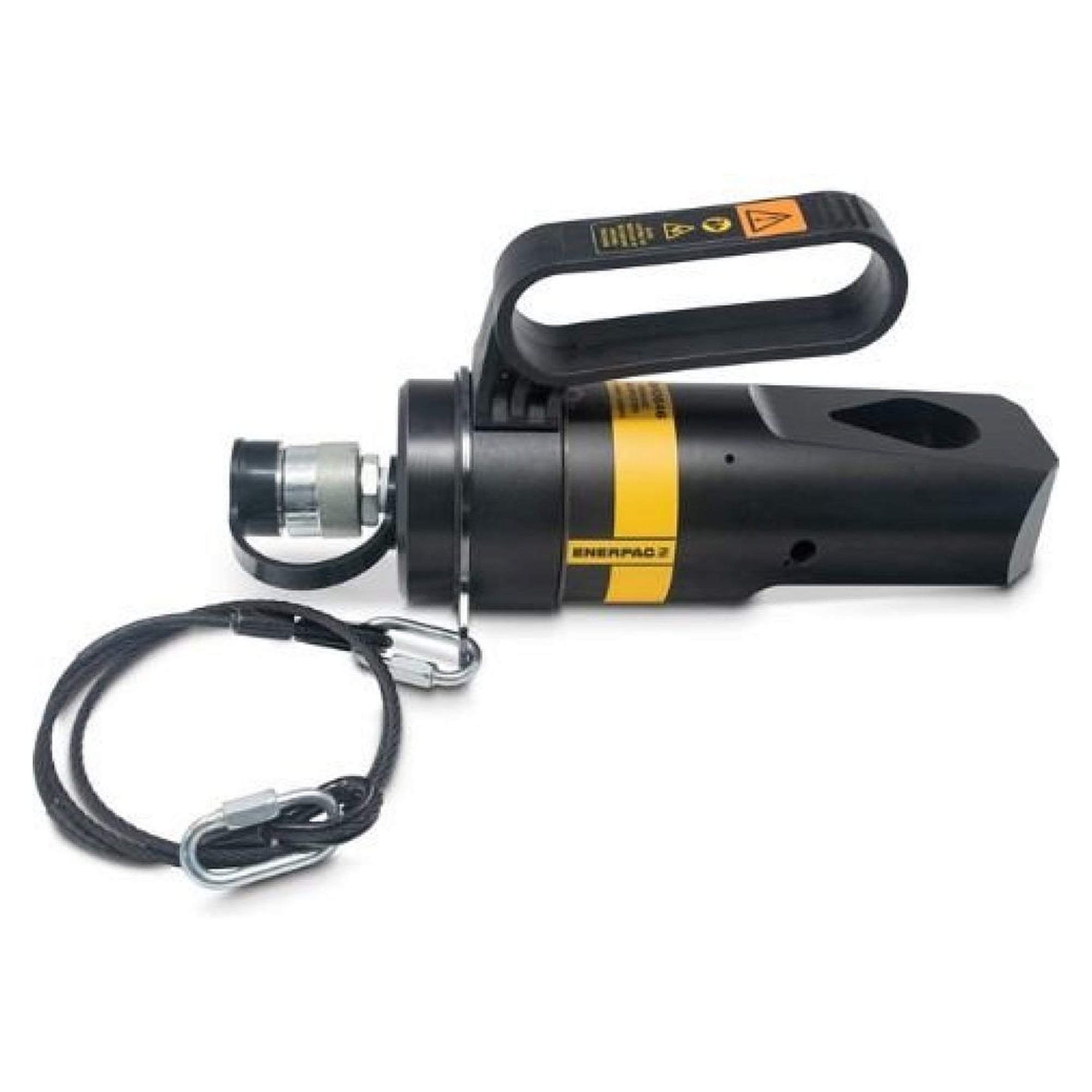

Safety lanyard with carabiners

Technical data

Splitting force	360 kN
Hexagon size	up to 65 mm
Operating pressure	700 bar
Coupler	CR400 (standard)
Max. hardness to split	ASTM A194 Gr 2H
Weight	10.9 kg
Series	NSH
Manufacturer	Enerpac
Hersteller-Nr	NSH5065
Hinweis	Industriewerkzeuge, Verschraubungsgeräte
GPSR Herstellerdaten	Enerpac GmbH, Willstätterstraße 13, DE-40549 Düsseldorf, www.enerpac.com
Artikelzustand	New
Artikel-Authentizität	Original product
Country of Manufacture	United States
Kapazität, kN	250-500 kN
