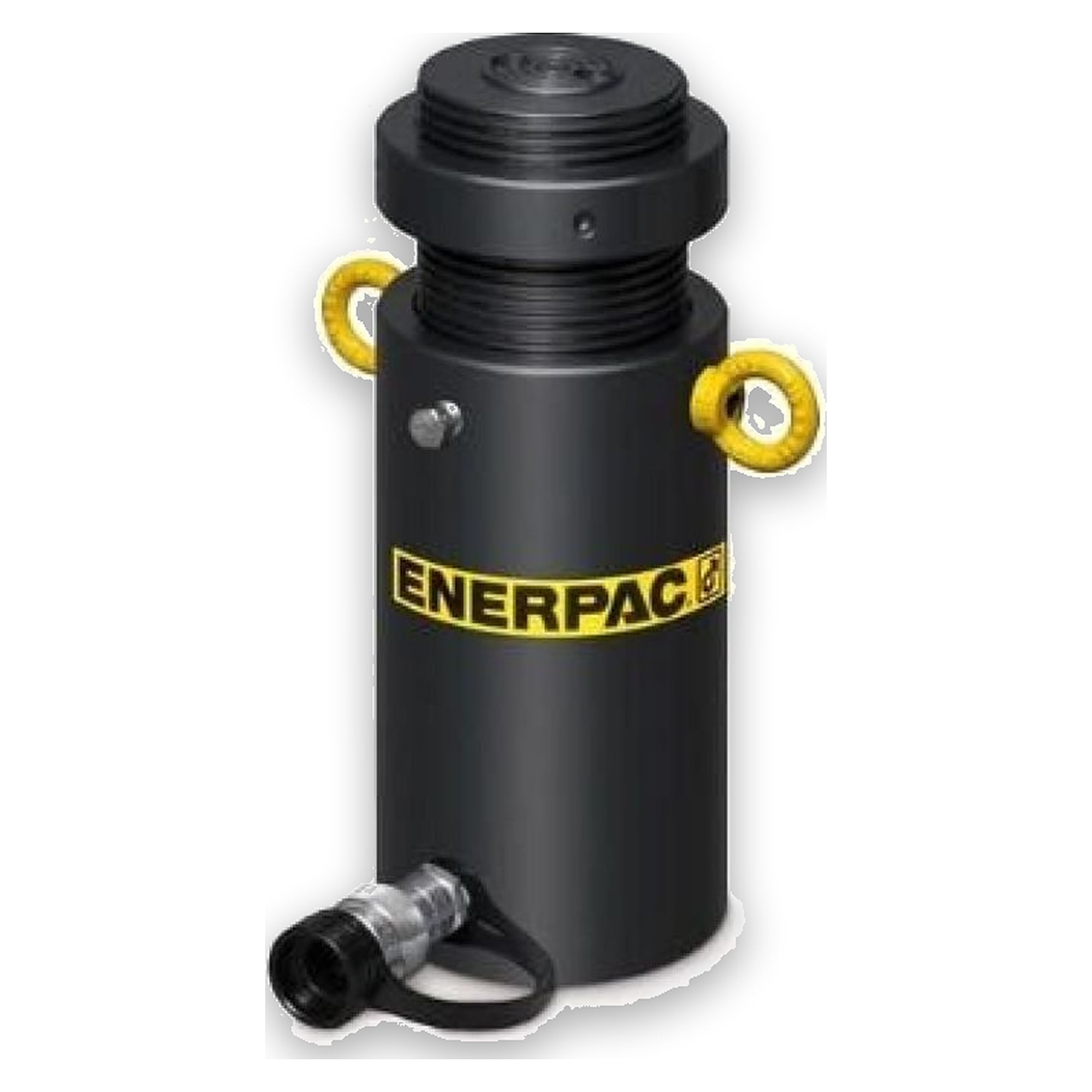

High Tonnage Hydraulic Cylinder, 550 kN, 300 mm Stroke - Enerpac HCL5012

The HCL5012 lifts and supports heavy loads with 550 kN of force across a 300 mm stroke, then secures the position purely mechanically. The threaded lock nut takes over load holding, so the load stays fixed even if pressure drops.

Benefits

• Lock nut holds the load mechanically, independent of hydraulic pressure
• Low-friction locking rings turn easily and save time and effort
• Withstands up to 10% side load across 90% of the stroke
• Hardened surface resists side loading and cyclic wear
• Overflow port limits the stroke and prevents plunger blow-out
• Weather protected for indoor and outdoor use
• Certified lifting eyes and base mounting holes for safe handling

Technical data

• Capacity: 550 kN
• Stroke: 300 mm
• Collapsed height: 414 mm
• Action: single-acting, with lock nut
• Operating pressure: 700 bar
• Weight: 43 kg
• Series: HCL
