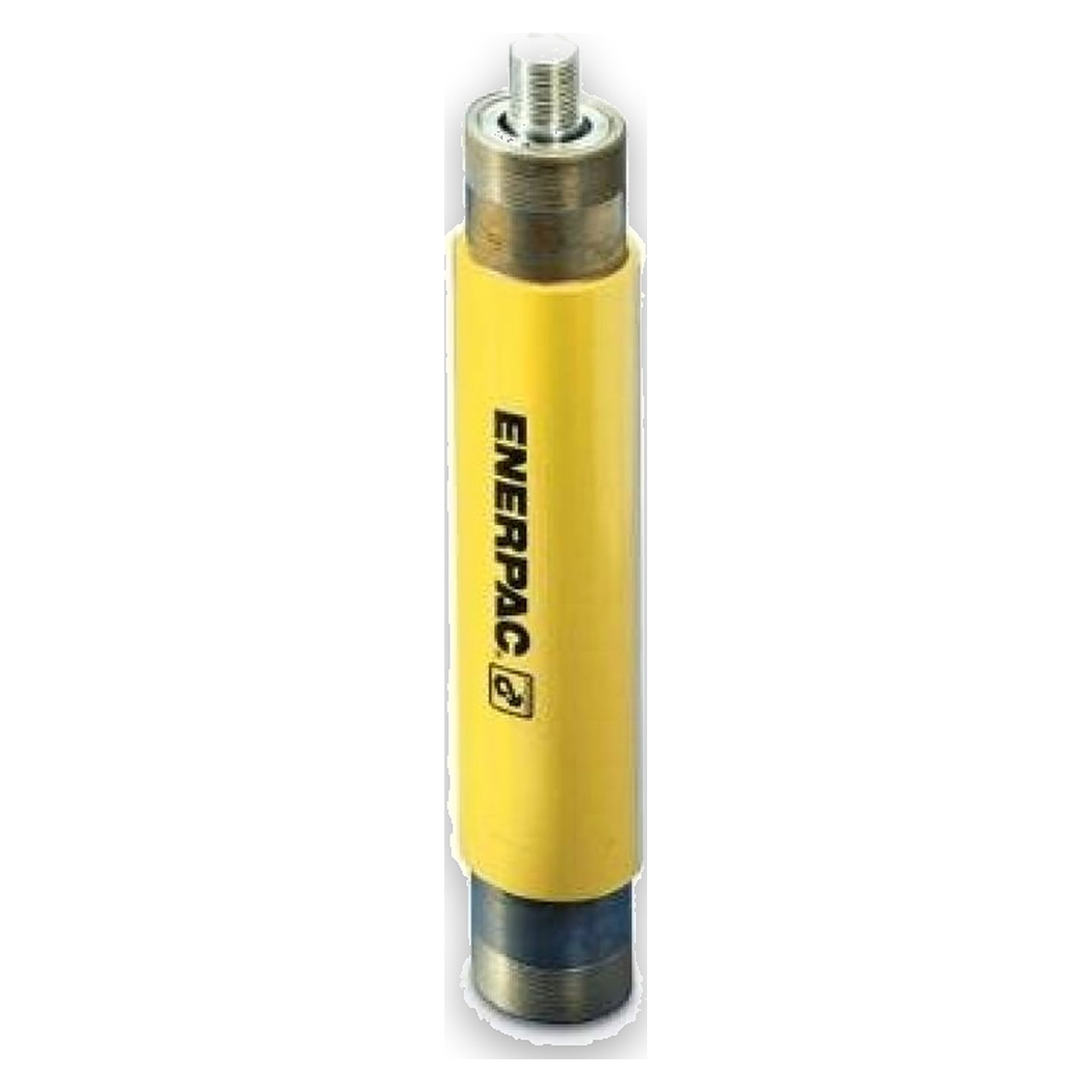

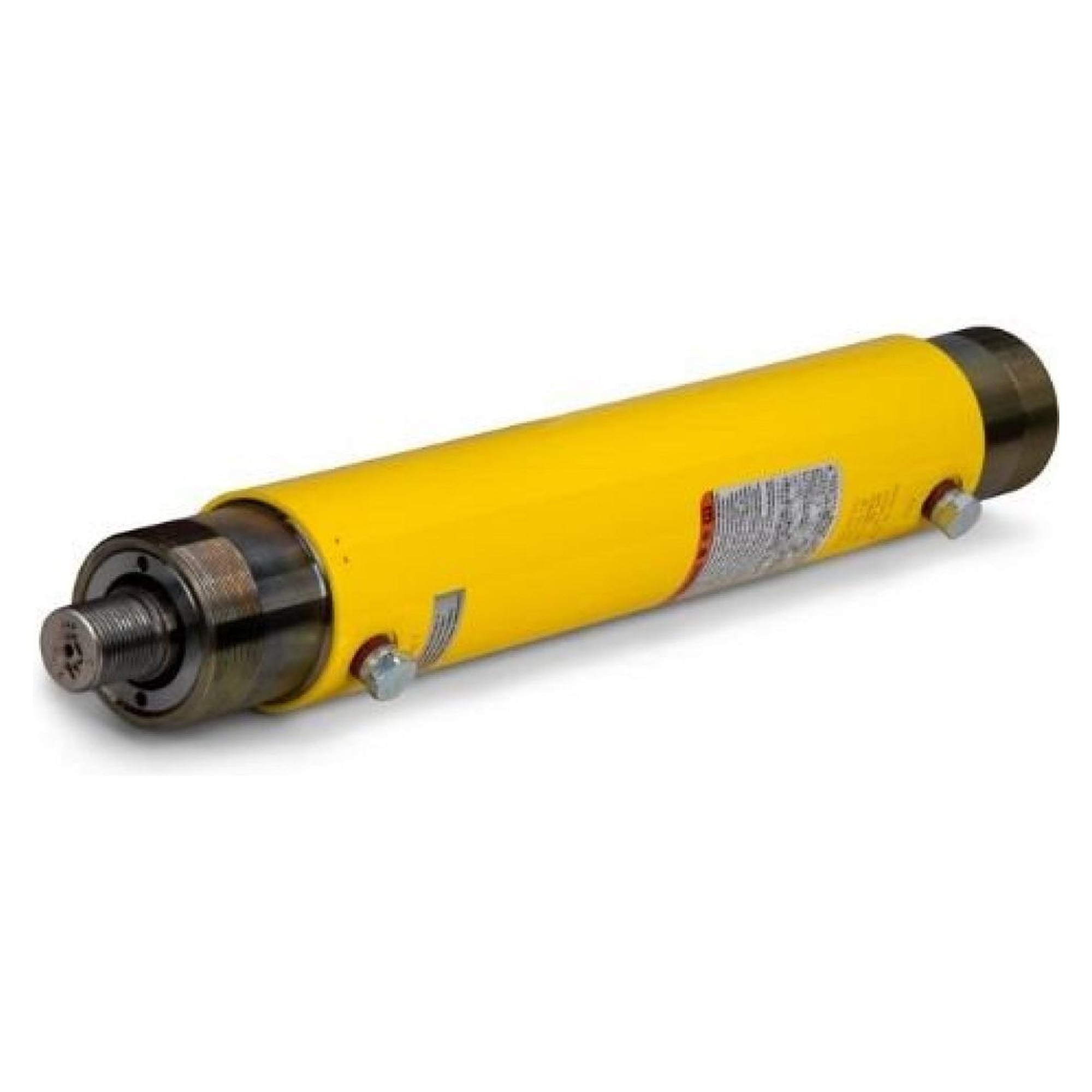

Enerpac BRD1610, 142 kN Capacity, 260 mm Stroke, Double-Acting, General Purpose Hydraulic Cylinder
ENERPAC
Original product
Net price (excl. VAT)
€2,651.97
€2,228.55
excl. Shipping Cost
Available
Fast shipping
Item
ENP-BRD1610
Manufacturer no.
BRD1610
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.BRD1610
ConditionNeu
Artikel
ENP-BRD1610
Pictures are for reference and may not be accurate, actual product may differ
BRD1610, 142 kN Capacity, 260 mm Stroke, Double-Acting, General Purpose Hydraulic Cylinder
Model: BRD1610 |ECCN: EAR99 | Harmonization: 8412210075
Series: BRD |Product Line: Industrial Tools, Workholding Tools
Series: BRD |Product Line: Industrial Tools, Workholding Tools
- Designed for long life, the best choice for production applications
- Unique mounting configurations simplify fixturing
- Baked enamel finish for increased corrosion resistance
- Double-acting operation develops force in both directions, providing maximum versatility
- Plunger wiper reduces contamination, extending cylinder life
Dimension imperial
Collar Thread Size W
M70 x 2
Dimension metric
Collapsed Height A (mm)
491
Extended Height B (mm)
751
Body Length C (mm)
461
Outside Diameter D (mm)
80
Cylinder Bore Diameter E (mm)
50,8
Plunger Diameter F (mm)
35,0
Bottom to Advance Port I (mm)
73
Top to Retract Port H (mm)
73
Plunger Protrusion K (mm)
30
Clevis Eye Mounting Dimension L (mm)
593
Clevis Eye Mounting Dimension L1 (mm)
853
Clevis Eye Mounting Dimension M (mm)
52
Neck Length N (mm)
54
Plunger Thread Length P (mm)
28
Plunger External Thread Q (mm)
M30 x 1,5
Collar Thread Size W
M70 x 2
Collar Thread Length X (mm)
22
Internal Base Thread Z (mm)
M56 x 2
Internal Base Thread Length Z1 (mm)
24
| Hersteller-Nr | BRD1610 |
|---|---|
| Manufacturer | Enerpac |
| Weight | 14.500000 |
| Size | - |
| Hinweis | Industriewerkzeuge, Spanntechnik |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikel-Authentizität | Originalprodukt |
| Artikelzustand | Neu |
